ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.31 ENGINE ELECTRICALFIG.32 STARTING MOTORFIG.33 GENERATORFIG.34 BATTERYFIG.35 SPEEDOMETERFIG.36 FRONT LAMPFIG.37 ROOM LAMPFIG.38 REAR LAMPFIG.39 WIRING HARNESSFIG.40 ELECTRICAL CONTROLFIG.41 LOCK SETFIG.42 FRONT WINDOW WIPERFIG.43 WINDOW WASHERFIG.44 REAR WINDOW WIPERFIG.45 RADIO

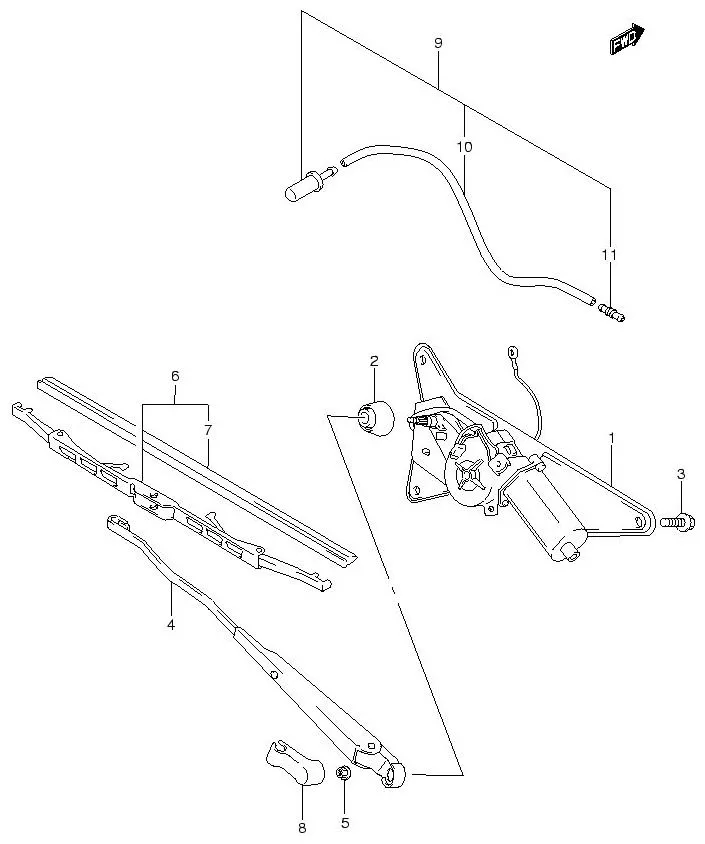

FIG.44 REAR WINDOW WIPER

FIG.44 REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 38810-65D00-000		 WIPER ASSY, BACK WINDOW 1 -
2 38274-65D00-000 •CAP, PIVOT 1 Rp68.500
3 02162-0612B-000
SUB: 02162-06123-000		 SCREW 3 Rp16.000
4 38821-65D00-000 ARM ASSY, REAR WIPER 1 Rp520.000
5 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
6 38822-65D00-000 BLADE ASSY, REAR WIPER 1 Rp192.000
7 DISCONTINUE
SUB: 38346-65D00-000		 •BLADE 1 -
8 38315-63G00-000 COVER, REAR WIPER HEAD 1 Rp56.000
9 38840-65D20-000 NOZZLE ASSY, REAR WASHER 1 Rp159.500
10 38491-61A00-000 •HOSE, WASHER (L:1300!250) 1 Rp47.500
11 38833M79500-000
SUB: 38496-61A00-000		 •VALVE, WASHER HOSE 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
