ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.31 ENGINE ELECTRICAL FIG.32 STARTING MOTOR FIG.33 GENERATOR FIG.34 BATTERY FIG.35 SPEEDOMETER FIG.36 FRONT LAMP FIG.37 ROOM LAMP FIG.38 REAR LAMP FIG.39 WIRING HARNESS FIG.40 ELECTRICAL CONTROL FIG.41 LOCK SET FIG.42 FRONT WINDOW WIPER FIG.43 WINDOW WASHER FIG.44 REAR WINDOW WIPER FIG.45 RADIO

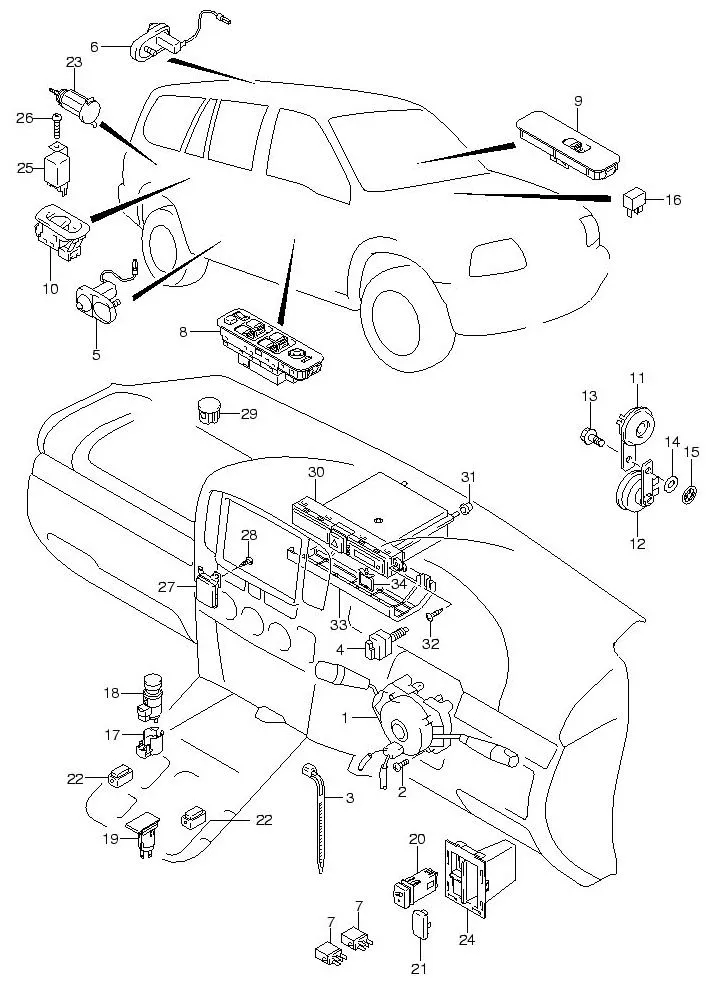

FIG.40 ELECTRICAL CONTROL

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 37400-50J40-000	SWITCH ASSY, COMBINATION	1	-
2	02112-0512A-000 SUB: 02112B05123N000	SCREW	3	Rp2.500
3	DISCONTINUE SUB: 09407-25401L000	CLAMP (L:235)	1	-
4	37740-61J10-000 SUB: 37740-75H20-000	SWITCH ASSY, STOP LAMP	1	Rp59.000
5	37670-65D01-000 SUB: 37670-65D00-000	SWITCH ASSY, DOOR	4	Rp109.000
6	37670-65D01-000 SUB: 37670-65D00-000	SWITCH ASSY, BACK DOOR	1	Rp109.000
7	38860-76F01-000 SUB: 38860B76F01N000	RELAY, HEAD & SIDE LAMP	2	Rp47.000
8	37990-52J10-ZR9	SWITCH ASSY, POWER WINDOW MASTER (GRAY)	1	Rp3.694.500
9	37995-50J00-ZR9	SWITCH ASSY, POWER WINDOW SUB (GRAY)	1	Rp771.000
10	37995-75F00-P4Z	SWITCH ASSY, POWER WINDOW REAR (GRAY)	2	Rp606.500
11	38500-65D20-000	HORN ASSY, HIGH PITCHED	1	-
12	38500-65D50-000	HORN ASSY, LOW PITCHED	1	-
13	01570-0820B-000 SUB: 01570-08203-000	BOLT	1	Rp31.000
14	DISCONTINUE SUB: 09160-08501-000	WASHER (8.5X24X2.3)	1	-
15	DISCONTINUE SUB: 38570-65D00-000	STOPPER, HORN	1	-
16	38860-76F01-000 SUB: 38860B76F01N000	RELAY, HORN	1	Rp47.000
17	39430-50J00-000	COVER, CIGARETTE LIGHTER	1	Rp95.500
18	DISCONTINUE SUB: 39400-50J00-000	LIGHTER ASSY, CIGARETTE	1	-
19	DISCONTINUE SUB: 39410-50J00-P4Z	SOCKET ASSY (GRAY)	1	-
20	37285-75F00-000	CAP, OPTION SWITCH HOLE	1	Rp41.500
21	37285-75F30-000 SUB: 37285-75F10-000	CAP, OPTION SWITCH HOLE	1	Rp37.500
22	DISCONTINUE SUB: 37285-50J00-000	CAP, OPTION SWITCH HOLE	2	-
23	DISCONTINUE SUB: 39410-60A01-000	SOCKET ASSY	1	-
24	DISCONTINUE SUB: 37211-50J10-000	BRACKET, OPTION SWITCH	1	-
25	DISCONTINUE SUB: 38860-50J00-000	RELAY, REAR WIPER	1	-
26	03141-0508A-000	SCREW	1	-
27	DISCONTINUE SUB: 74522-54J10-5PK	CAP, REAR FAN SWITCH (BLACK)	1	-
28	03541-0512A-000 SUB: 03541-05123L000	SCREW	1	Rp3.500
29	DISCONTINUE SUB: 74523-54J00-P4Z	CAP, AUTO LIGHT SENSOR (GRAY)	1	-
30	DISCONTINUE SUB: 36770-50JC0-000	CONTROLLER ASSY, BODY ELECTRIC	1	-
31	DISCONTINUE SUB: 34955-60E00-000	BUSH	2	-
32	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
33	DISCONTINUE SUB: 36781-50J00-000	COVER, HARNESS	1	-
34	DISCONTINUE SUB: 09403-23302-000	CLAMP	1	-
