ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.31 ENGINE ELECTRICAL FIG.32 STARTING MOTOR FIG.33 GENERATOR FIG.34 BATTERY FIG.35 SPEEDOMETER FIG.36 FRONT LAMP FIG.37 ROOM LAMP FIG.38 REAR LAMP FIG.39 WIRING HARNESS FIG.40 ELECTRICAL CONTROL FIG.41 LOCK SET FIG.42 FRONT WINDOW WIPER FIG.43 WINDOW WASHER FIG.44 REAR WINDOW WIPER FIG.45 RADIO

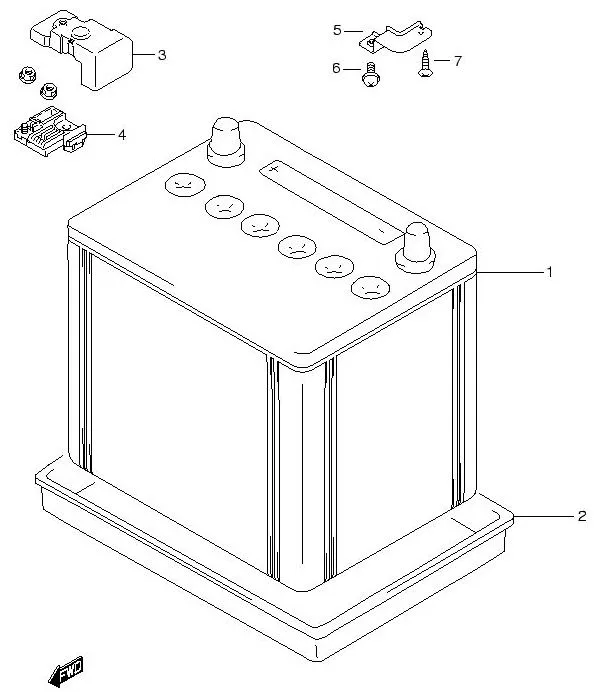

FIG.34 BATTERY

FIG.34 BATTERY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	33610-71320-000	BATTERY ASSY (FB) (38B20L,12V,28AH/5HR)	1	-
2	33660-73010-000 SUB: 33660B73010N000	TRAY, BATTERY	1	Rp41.000
3	36694-50J00-000	COVER, BATTERY TERMINAL	1	Rp132.000
4	36739-50J00-000	FUSE, BATTERY	1	Rp131.500
5	DISCONTINUE SUB: 33924-50J20-000	BRACKET, INJECTION CONTROL	1	-
6	02142-0510A-000 SUB: 02142-05103-000	SCREW	1	Rp4.000
7	03541-0512A-000 SUB: 03541-05123L000	SCREW	3	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
