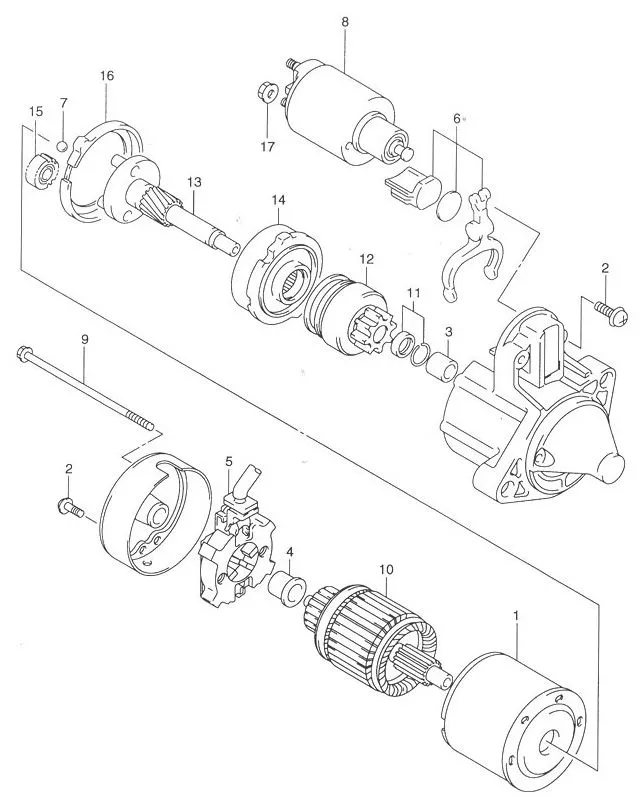

FIG.32 STARTING MOTOR

FIG.32 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
31100-66D00-000 MOTOR ASSY, STARTING 1 Rp5.651.000
1 DISCONTINUE
SUB: 31110-66D00-000		 •YOKE ASSY 1 -
2 31136-79030-000 •SCREW SET 1 Rp81.000
3 31152-79030-000 •BUSH 1 Rp56.500
4 31172-64B60-000 •BEARING 1 Rp97.000
5 31173-60A22-000 •HOLDER ASSY, BRUSH 1 Rp714.000
6 DISCONTINUE
SUB: 31191-75F10-000		 •LEVER ASSY 1 -
7 DISCONTINUE
SUB: 31193-86030-000		 •BALL 1 -
8 31220-86032-000 •SWITCH ASSY 1 Rp1.543.000
9 DISCONTINUE
SUB: 31261-75F10-000		 •BOLT 2 -
10 DISCONTINUE
SUB: 31311-75F10-000		 •ARMATURE 1 -
11 31313-86030-000
SUB: 31313B86030N000		 •STOPPER SET 1 Rp24.500
12 31320-86030-000 •CLUTCH, OVER RUNNING 1 Rp1.461.000
13 DISCONTINUE
SUB: 31341-75F10-000		 •SHAFT, GEAR 1 -
14 DISCONTINUE
SUB: 31343-80G00-000		 •GEAR ASSY, INTERNAL 1 -
15 31344-86030-000 •GEAR, PLANETARY 3 Rp329.000
16 DISCONTINUE
SUB: 31345-80G00-000		 •PACKING 1 -
17 08316-1008A-000
SUB: 08316B10083N000		 •NUT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
