Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

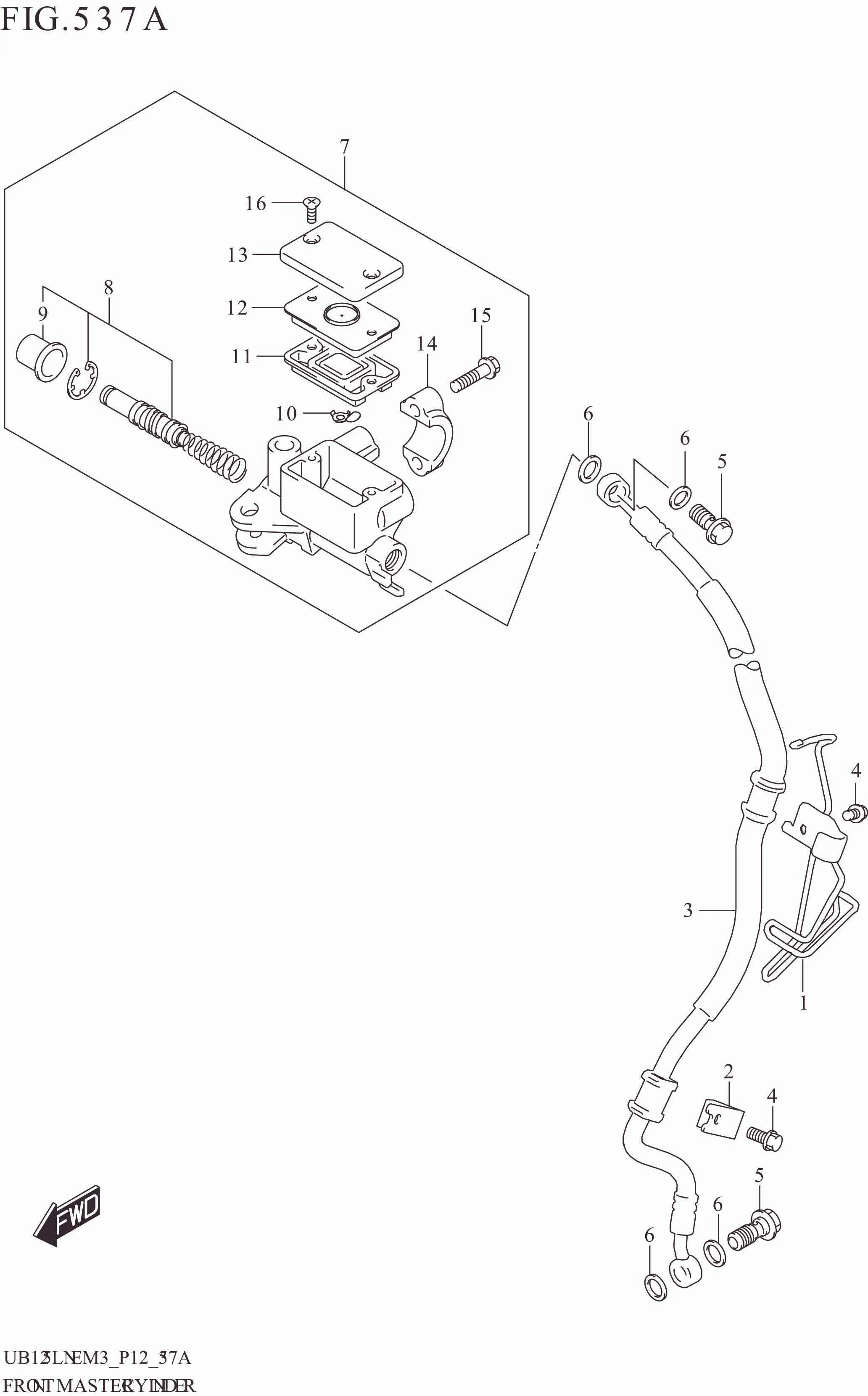

FIG. 537A FRONT MASTER CYLINDER

FIG. 537A FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59260-14L10-000 CLAMP,FR BRAKE HOSE 1 Rp45.500
2 59267-08K00-000 CLAMP,BRAKE HOSE 1 Rp11.500
3 59480-27L00-000 HOSE,FRONT BRAKE 1 Rp377.000
4 01547-0610A-000 BOLT 2 Rp3.000
5 59492-30H30-000 BOLT,BRAKE FLUID 2 Rp26.500
6 09168-10033-000 WASHER (10.2X15X1.4) 4 Rp8.500
7 59600-08K10-000 CYLINDER ASSY,FRONT MASTER 1 Rp852.500
8 59600-46810-000 .PISTON & CUP SET 1 Rp292.500
9 59666-44300-000 ..BOOT 1 Rp16.000
10 59664-32F00-000 .PROTECTOR 1 Rp20.500
11 DISCONTINUE
SUB: 59667-04700L000		 .DIAPHRAGM 1 -
12 59668-14F00-000 .PLATE,DIAPHRAGM 1 Rp73.000
13 59669-21D20-000 .CAP 1 Rp40.000
14 59671-36500-000 .HOLDER 1 Rp23.000
15 59675-06F10-000 .BOLT (6X22) 2 Rp4.500
16 69689-49300-000 .SCREW,RESERVOIR CAP 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
