Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

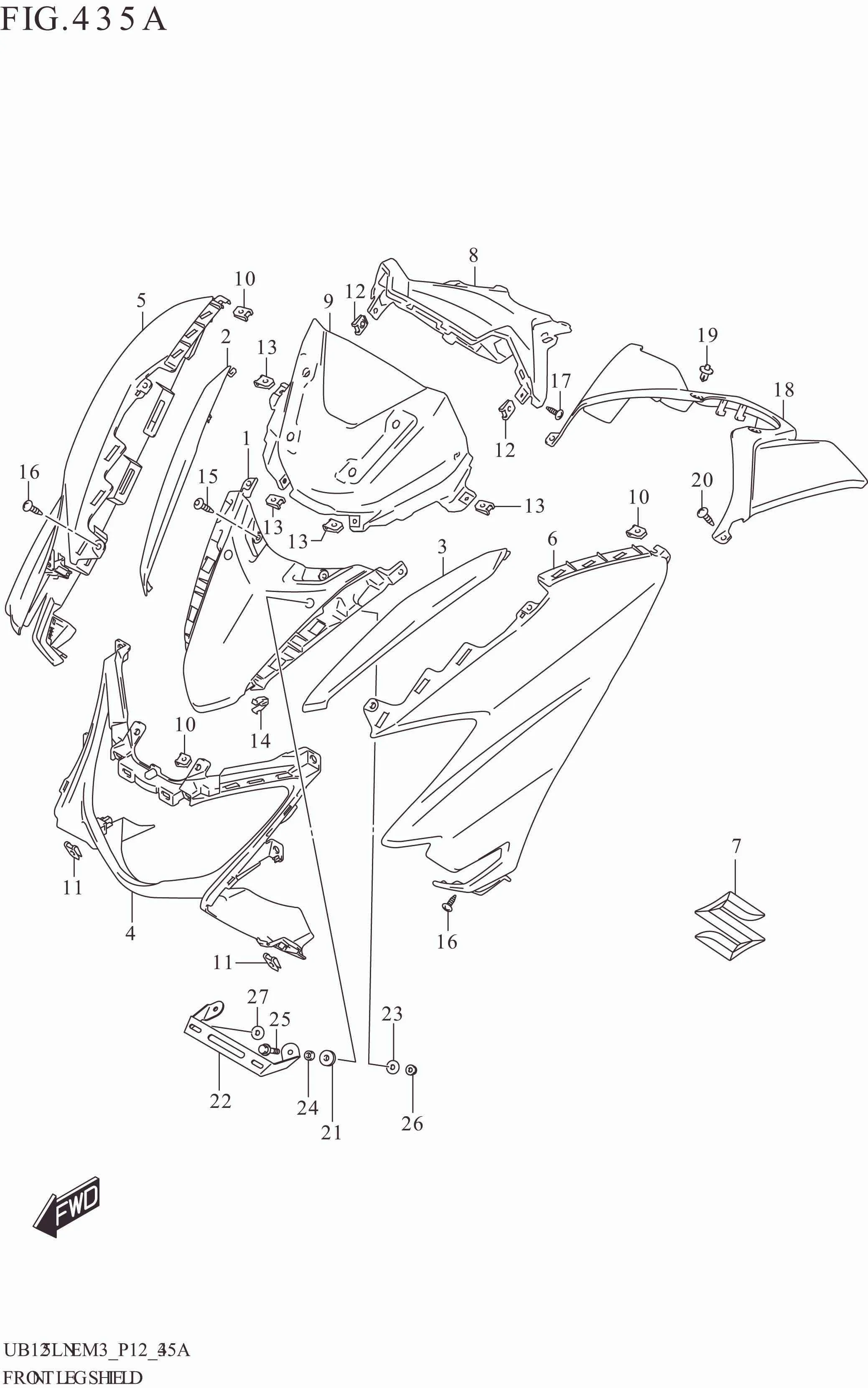

FIG. 435A FRONT LEG SHIELD

FIG. 435A FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-2 48111-44K11-QS4 SHIELD,LEG FRONT (BRONZE) 1 Rp424.000
1-1 48111-44K11-SAB SHIELD,LEG FRONT (SILVER) 1 Rp424.000
1-3 48111-44K11-YKV SHIELD,LEG FRONT (BLACK) 1 Rp553.000
2 48112-44K00-000 GARNISH,LEG SHIELD,R 1 Rp181.500
3 48113-44K00-000 GARNISH,LEG SHIELD,L 1 Rp181.500
4 48114-44K00-000 SHIELD,LEG FRONT LOWER 1 Rp74.500
5-1 48211-44K02-SAB SHIELD,LEG FRONT,R (SILVER) 1 Rp344.000
5-2 48211-44K02-QS4 SHIELD,LEG FRONT,R (BRONZE) 1 Rp344.000
5-3 48211-44K02-YKV SHIELD,LEG FRONT,R (BLACK) 1 Rp331.000
6-1 48221-44K02-SAB SHIELD,LEG FRONT,L (SILVER) 1 Rp344.000
6-2 48221-44K02-QS4 SHIELD,LEG FRONT,L (BRONZE) 1 Rp344.000
6-3 48221-44K02-YKV SHIELD,LEG FRONT,L (BLACK) 1 Rp331.000
7 68641-33GC0-000 EMBLEM,S 1 Rp46.000
8 94421-27L10-U1G PANEL,METER (MAROON) 1 Rp33.000
9 94671-44K10-000 PANEL,FRONT 1 Rp42.000
10 09148-05060-000 NUT (M5) 6 Rp29.500
11 09148-05060-000 NUT (M5) 4 Rp29.500
12 09148-05060-000 NUT (M5) 2 Rp29.500
13 09148-05060-000 NUT (M5) 4 Rp29.500
14 09409-08L09-000 CLIP 2 Rp8.500
15 48119-44K00-000 SCREW,LEG FR UPR 2 Rp14.500
16 03541-0516A-000 SCREW 8 Rp3.500
17 03541-0516B-000 SCREW 2 Rp13.000
18-1 92114-44K01-PGZ COVER,LEG SHIELD UPR (GRAY) 1 Rp159.500
18-2 92114-44K01-SAB COVER,LEG SHIELD UPR (SILVER) 1 Rp159.500
19-2 09409-06346-000 CLIP 2 Rp3.500
19-1 09409-06L07-000 CLIP 2 Rp10.000
20 03541-0516A-000 SCREW 2 Rp3.500
21 47161-23J00-000 CUSHION (10X22X7) 2 Rp4.000
22 48191-44K10-000 PLATE,FRONT LICENSE 1 Rp17.500
23 09160-06027-000 WASHER (6.5X20X1.2) 2 Rp6.500
24 09180-06082-000 SPACER (6.5X10.5X6.5) 2 Rp8.000
25 01550-0616A-000 BOLT 2 Rp3.500
26 08316-1006A-000 NUT (6X12) 2 Rp2.000
27 08316-1006A-000 NUT (6X12) 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
