Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

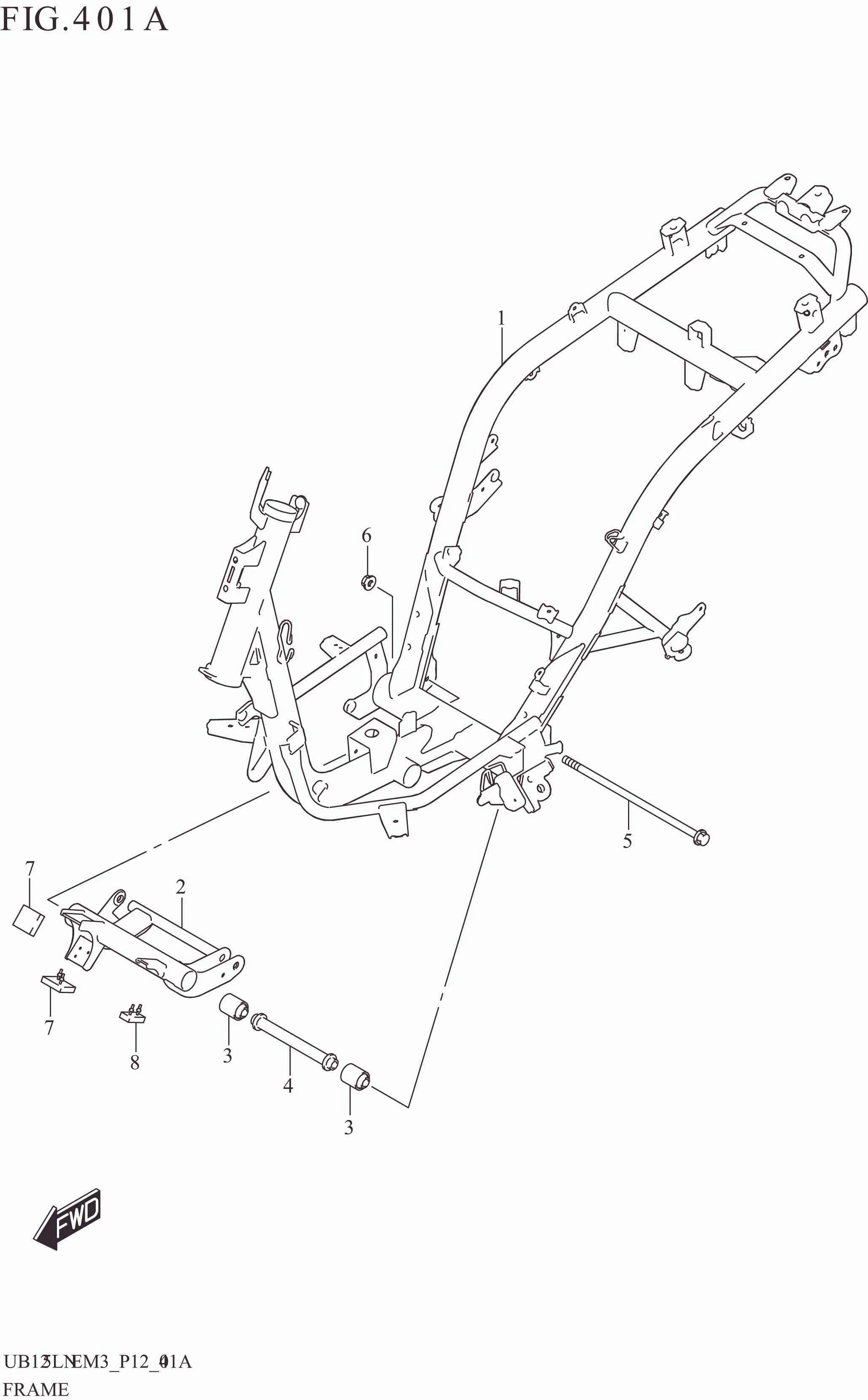

FIG. 401A FRAME

FIG. 401A FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-27L00-000 FRAME 1 Rp3.507.500
2 41180-02L00-000 BRACKET,CRANKCASE 1 Rp325.000
3 41184-39J00-000 BUSH,CRANKCASE BRKT 2 Rp35.500
4 41170-09J10-000 SPACER,CRANKCASE BRKT 1 Rp22.000
5 41189-39J00-000 BOLT,CRANKCASE BRKT (10X255) 1 Rp58.000
6 08319-3110A-000 NUT 1 Rp4.500
7 41185-09J10-000 CUSHION 2 Rp11.500
8 41185-08K00-000 CUSHION,SWING STOP 1 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
