Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

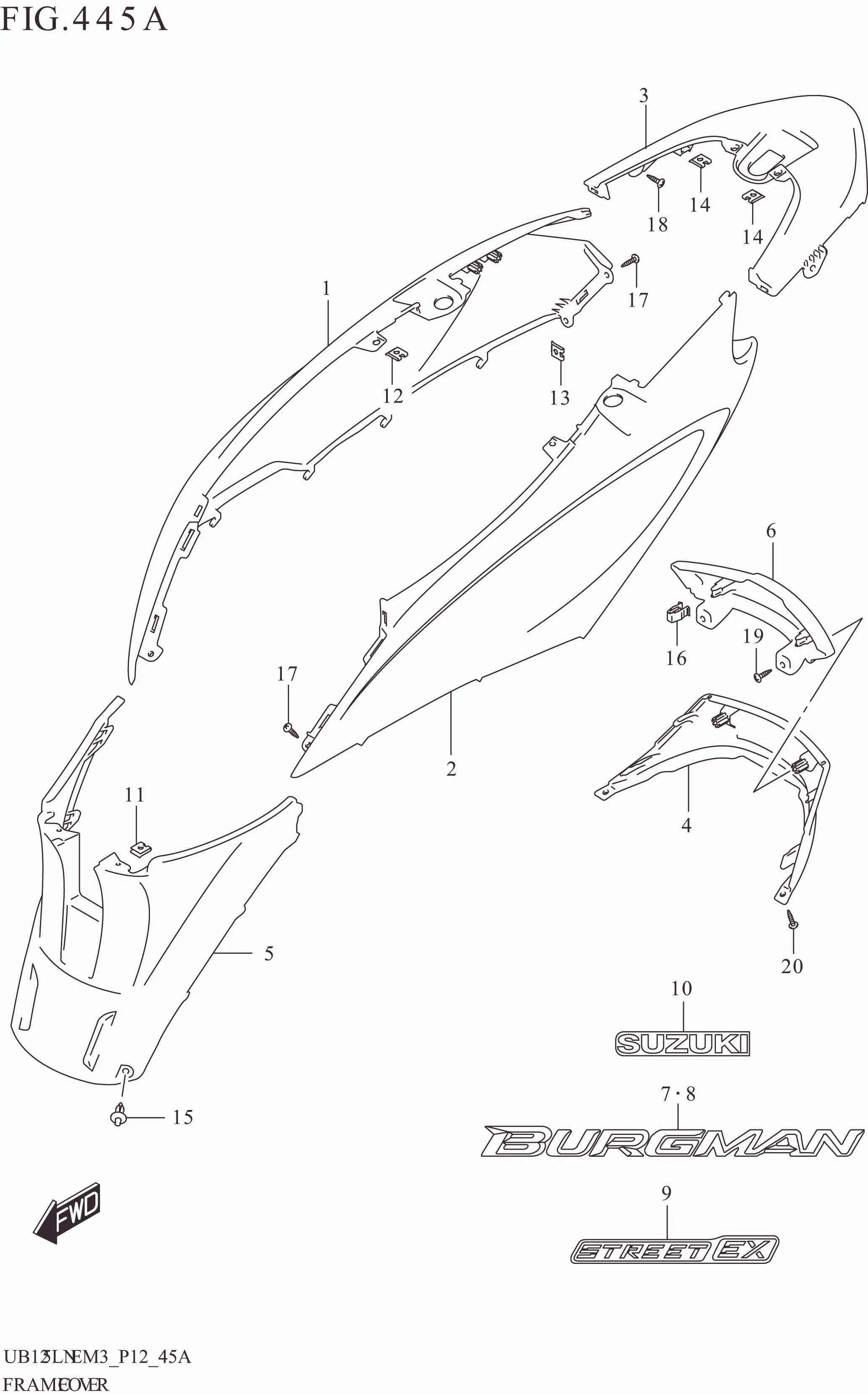

FIG. 445A FRAME COVER

FIG. 445A FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-44K01-QS4 COVER,FRAME,R (BRONZE) 1 Rp426.500
1-3 47111-44K01-YKV COVER,FRAME,R (BLACK) 1 Rp608.500
1-1 47111-44K01-SAB COVER,FRAME,R (SILVER) 1 Rp426.500
2-1 47211-44K01-SAB COVER,FRAME,L (SILVER) 1 Rp426.500
2-2 47211-44K01-QS4 COVER,FRAME,L (BRONZE) 1 Rp426.500
2-3 47211-44K01-YKV COVER,FRAME,L (BLACK) 1 Rp608.500
3-1 47311-44K01-SAB COVER,FRAME CENTER (SILVER) 1 Rp159.000
3-2 47311-44K01-QS4 COVER,FRAME CENTER (BRONZE) 1 Rp159.000
3-3 47311-44K01-YKV COVER,FRAME CENTER (BLACK) 1 Rp172.000
4 47411-44K00-000 COVER,FRAME LOWER 1 Rp41.500
5 47121-44K10-U1G COVER,FRAME FRONT (MAROON) 1 Rp140.500
6 47412-44K00-000 GARNISH,FRAME COVER LOWER 1 Rp203.000
7 68131-44K00-000 EMBLEM,FRAME COVER,R 1 Rp56.000
8 68141-44K00-000 EMBLEM,FRAME COVER,L 1 Rp56.000
9-1 68132-27L00-CKQ EMBLEM 2 Rp6.500
9-3 68132-27L00-CKR EMBLEM (SILVER,GRAY,BLACK) 2 Rp6.500
9-2 68132-27L00-BYC EMBLEM (SILVER,GRAY) 2 Rp6.500
10 68141-27K00-AB4 EMBLEM,SUZUKI (SILVER,BLACK) 1 Rp10.000
11 09148-05060-000 NUT (M5) 2 Rp29.500
12 09148-05060-000 NUT (M5) 2 Rp29.500
13 09148-05060-000 NUT (M5) 4 Rp29.500
14 09148-05060-000 NUT (M5) 4 Rp29.500
15-1 09409-06L07-000 CLIP 2 Rp10.000
15-2 09409-06346-000 CLIP 2 Rp3.500
16 09409-08L09-000 CLIP 2 Rp8.500
17 03541-0516A-000 SCREW 6 Rp3.500
18 03541-0516A-000 SCREW 2 Rp3.500
19 03541-0516A-000 SCREW 2 Rp3.500
20 47353-44K00-000 SCREW,FRAME COVER LWR 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
