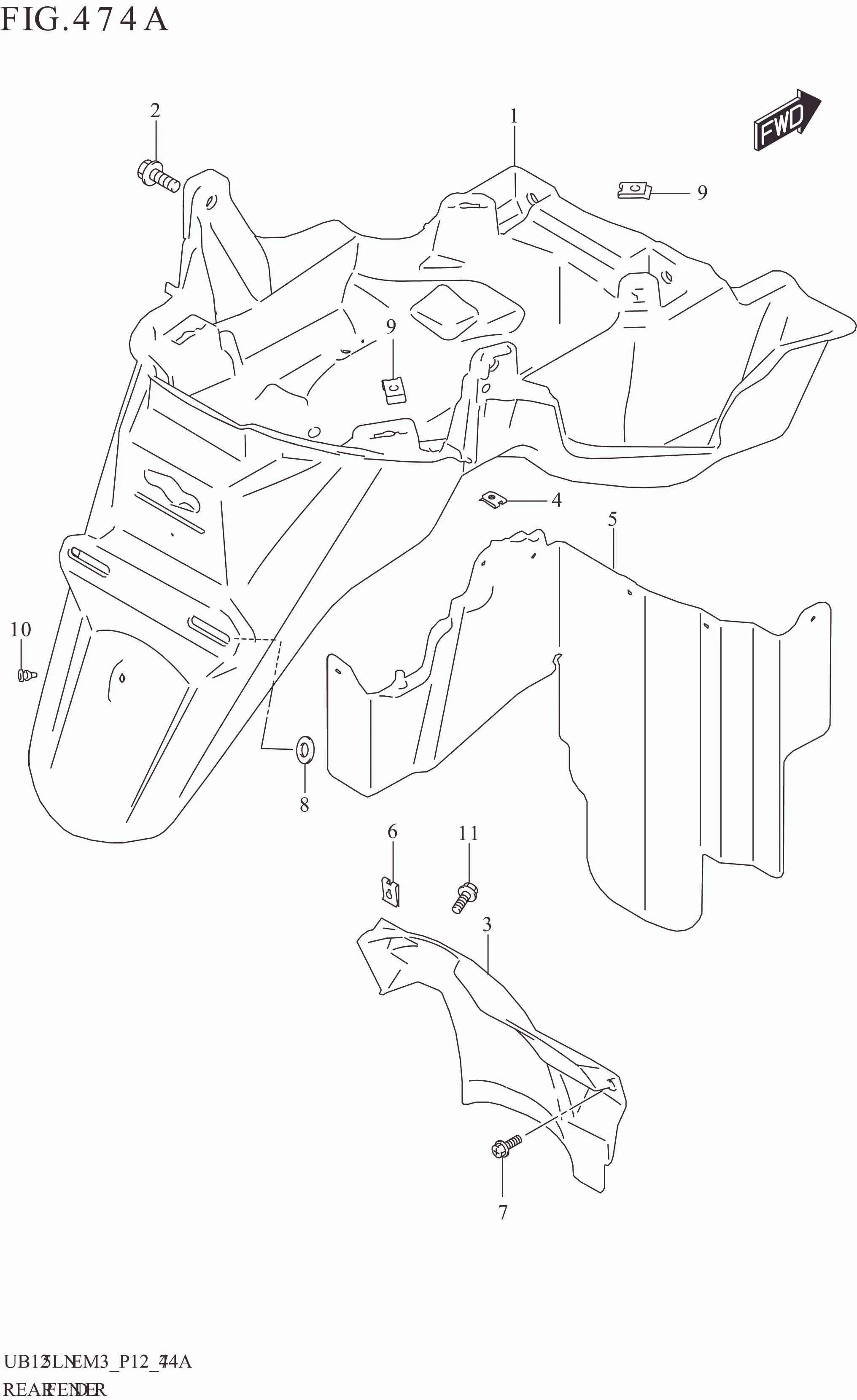

FIG. 474A REAR FENDER

FIG. 474A REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-27L00-000 FENDER,REAR UPPER 1 Rp144.500
2 01550-0612A-000 BOLT 4 Rp3.500
3 63112-27L00-000 FENDER,REAR LOWER 1 Rp27.500
4 63167-44K00-000 NUT,REAR FENDER UPPER 2 Rp3.500
5 63411-27L00-000 MUDGUARD,REAR FENDER 1 Rp56.000
6 35157-34J00-000 NUT (M6) 1 Rp5.500
7 09111-06102-000 BOLT (6X14.8) 1 Rp3.500
8 08322-0105A-000 WASHER 2 Rp3.000
9 53122-27L00-000 NUT,FUEL TANK 4 Rp18.500
10 63118-41K00-000 PLUG,REAR FENDER 1 Rp9.000
11 63114-08K00-000 BOLT,REAR FENDER LOWER 1 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
