Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

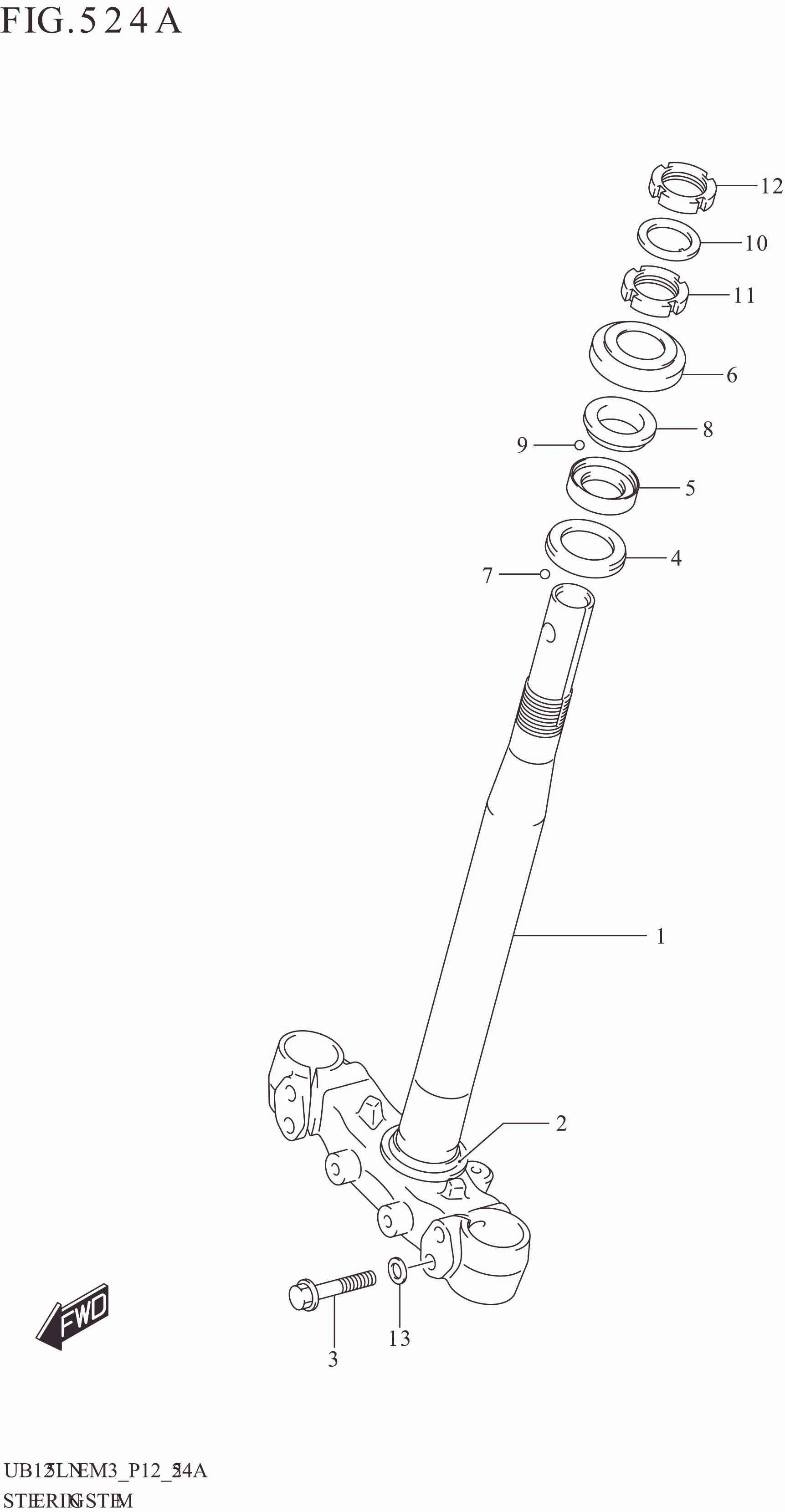

FIG. 524A STEERING STEM

FIG. 524A STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-08K10-000 BRACKET,FRONT FORK LOWER 1 Rp990.500
2 51622-41H00-000 RACE 1 Rp56.500
3 51434-08K10-000 BOLT,FR FORK INNER TUBE CLAMP 4 Rp10.000
4 51612-41H01-000 RACE,STEERING INNER LOWER 1 Rp20.500
5 51611-41H01-000 RACE,STEERING INNER UPPER 1 Rp20.500
6 51643-06001-000 DUST SEAL,STEERING UPR 1 Rp3.000
7 06111-06004-000 BALL 28 Rp1.000
8 51621-41H00-000 RACE,STEERING OUTER UPR 1 Rp31.000
9 06111-06004-000 BALL 23 Rp1.000
10 09166-24001-000 WASHER (24.5X34X2.3) 1 Rp4.500
11 51631-05000-000 NUT 1 Rp20.000
12 51631-05000-000 NUT 1 Rp20.000
13 51435-33G10-000 WASHER 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
