Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

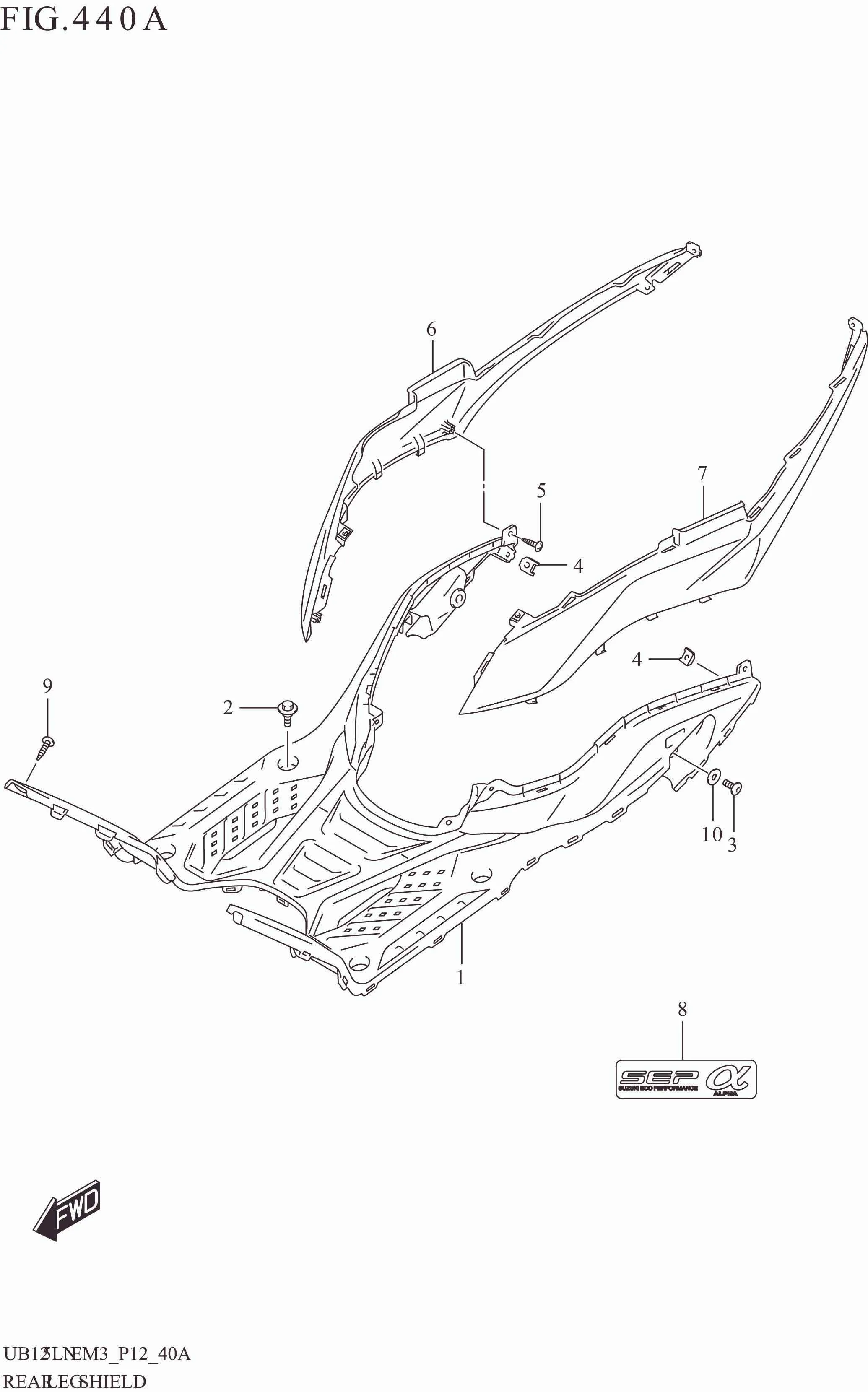

FIG. 440A REAR LEG SHIELD

FIG. 440A REAR LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48121-44K20-U1G FOOTBOARD,LEG SHIELD (MAROON) 1 Rp224.500
2 09111-06072-000 BOLT (6X17.8) 4 Rp3.500
3 48115-27L10-000 BOLT,FOOTBOARD SIDE 2 Rp6.500
4 09148-05060-000 NUT (M5) 2 Rp29.500
5 03541-0516A-000 SCREW 6 Rp3.500
6-1 47131-44K01-PGZ COVER,SIDE LOWER,R (GRAY) 1 Rp249.000
6-2 47131-44K01-SAB COVER,SIDE LOWER,R (SILVER) 1 Rp249.000
7-1 47231-44K01-PGZ COVER,SIDE LOWER,L (GRAY) 1 Rp249.000
7-2 47231-44K01-SAB COVER,SIDE LOWER,L (SILVER) 1 Rp249.000
8 68136-27L00-000 EMBLEM 1 Rp4.000
9 03541-0516B-000 SCREW 2 Rp13.000
10 09160-06151-000 WASHER (6.5X18X1) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
