Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

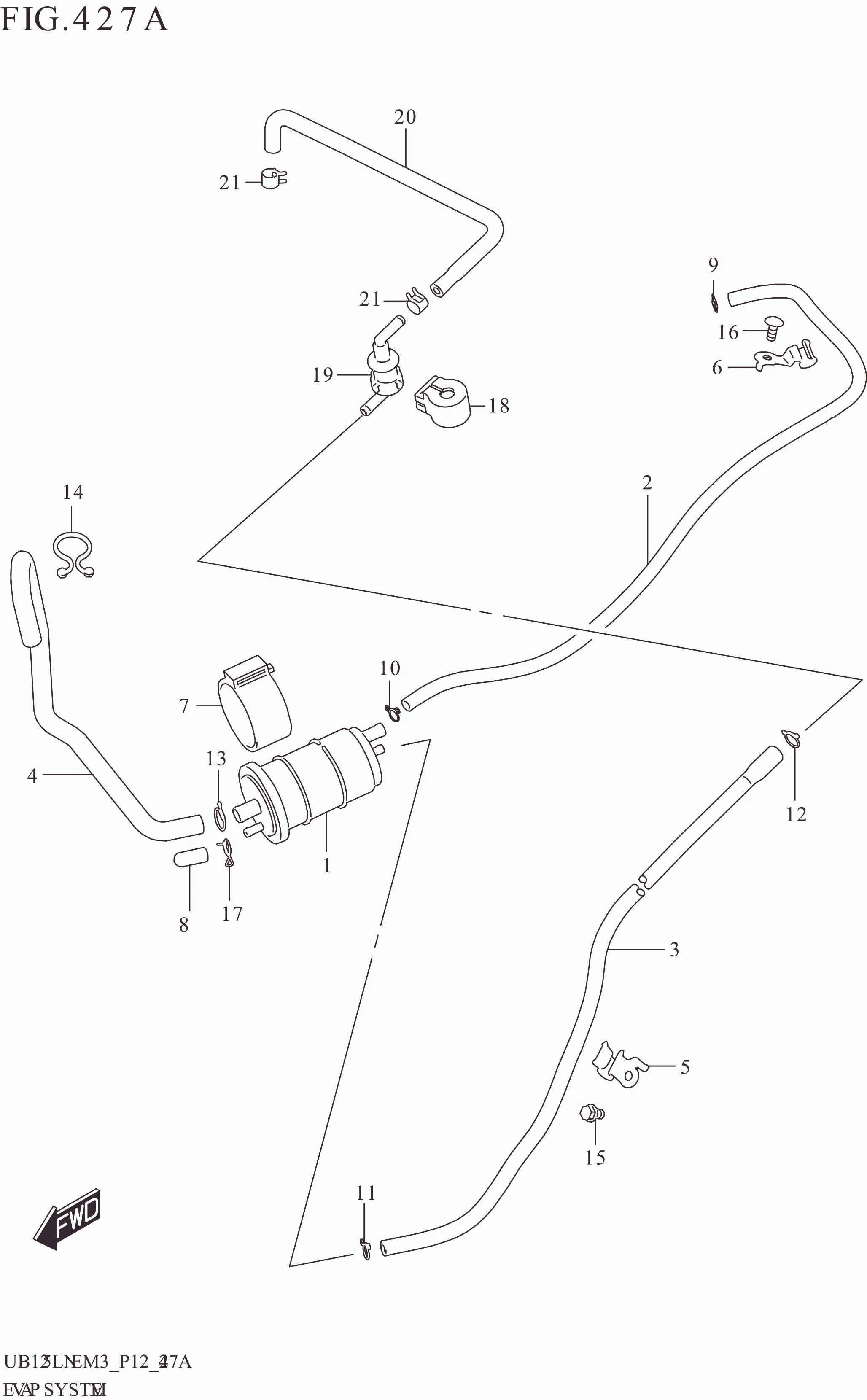

FIG. 427A EVAP SYSTEM

FIG. 427A EVAP SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 18560-02L00-000 CANISTER ASSY,EVAP 1 Rp119.000
2 18561-14L01-000 HOSE,CSTR PURGE 1 Rp25.000
3 18563-14L00-000 HOSE,CSTR SURGE 1 Rp43.500
4 18567-02L00-000 HOSE,CSTR AIR 1 Rp22.000
5 18571-02L00-000 CLAMP,PURGE HOSE NO.1 1 Rp15.000
6 18572-02L00-000 CLAMP,PURGE HOSE NO.2 1 Rp15.000
7 18573-02L00-000 CUSHION,CANISTER 1 Rp30.000
8 09251-04004-000 CAP 1 Rp7.000
9 09401-08001-000 CLIP 1 Rp5.500
10 09401-09101-000 CLIP 1 Rp13.000
11 09401-09101-000 CLIP 1 Rp13.000
12 09401-10401-000 CLIP 1 Rp5.500
13 09401-13102-A05 CLIP 1 Rp13.000
14 09408-00343-000 CLAMP 1 Rp8.500
15 01547-0610A-000 BOLT 1 Rp3.000
16 03541-0512A-000 SCREW 1 Rp3.500
17 09401-09406-000 CLIP 1 Rp5.500
18 44894-39J10-000 CUSHION,FUEL TANK BRTHR 1 Rp10.000
19 44240-13H00-000 VALVE,FUEL TANK BREATHER 1 Rp85.500
20 44434-44K10-000 HOSE,TANK & BRTHR VALVE 1 Rp16.500
21 09401-09L03-000 CLIP (ID:9.4,H:8) 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
