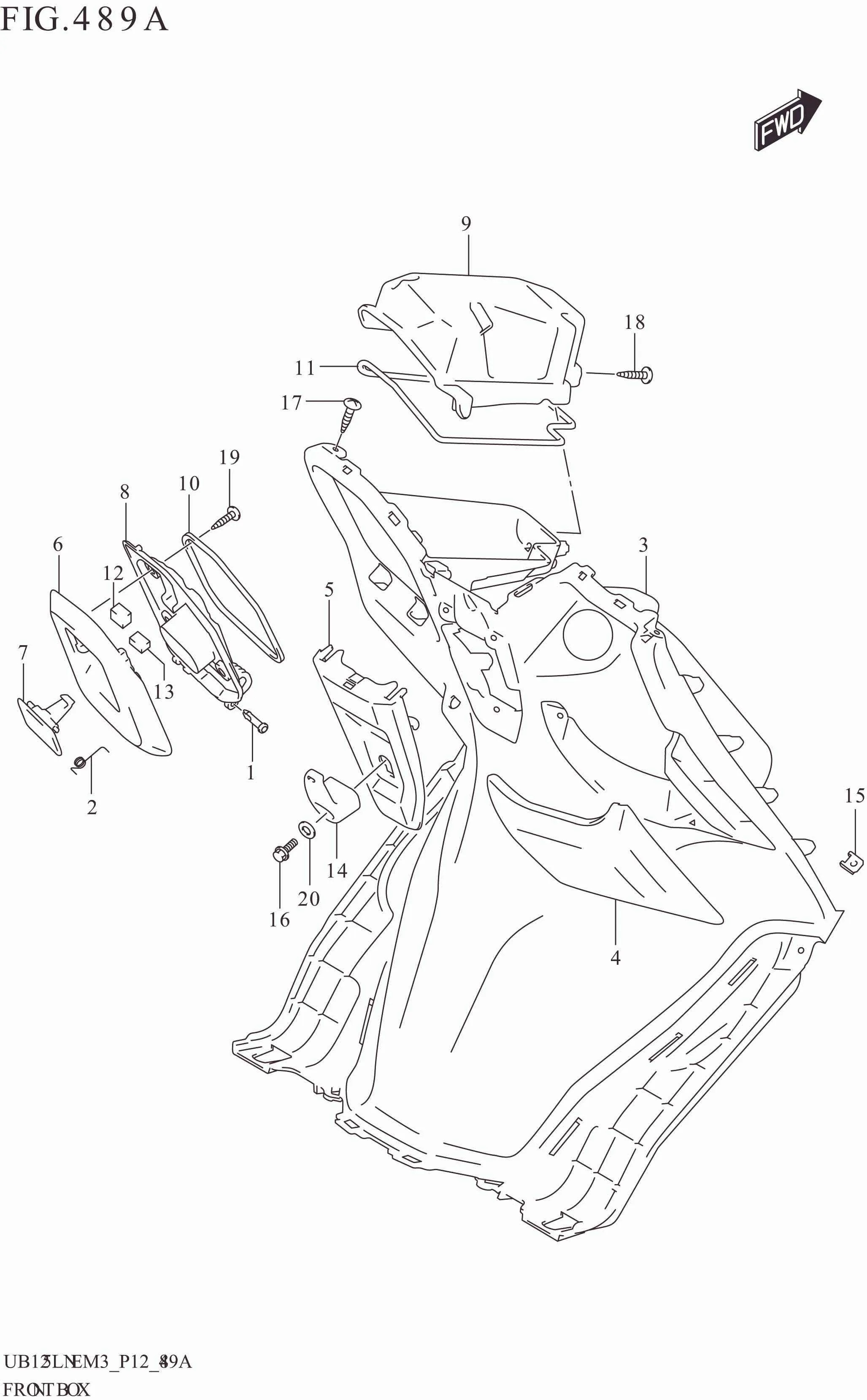

FIG. 489A FRONT BOX

FIG. 489A FRONT BOX
No No. Part Description Qty Price Per Pcs Remarks
1 73423-50G00-000 PIN,GLOVE BOX HINGE 2 Rp30.000
2 73423-62D00-000 SPRING,GLOVE BOX LID 1 Rp39.500
3 92111-44K50-U1G COVER,LEG SHIELD (MAROON) 1 Rp388.500
4 92112-44K10-U1G RACK,LEG SHIELD (MAROON) 1 Rp29.500
5-1 92113-44K01-PGZ COVER,LEG SHIELD CTR (GRAY) 1 Rp109.000
5-2 92113-44K01-SAB COVER,LEG SHIELD CTR (SILVER) 1 Rp109.000
6 92151-44K10-U1G LID,FRONT PANEL (MAROON) 1 Rp21.000
7 92152-44K00-000 LOCK,FRONT PANEL BOX 1 Rp36.500
8 92153-44K00-000 LID,FRONT PANEL INNER 1 Rp37.500
9 92154-44K00-000 BOX,FRONT PANEL 1 Rp37.000
10 92155-44K00-000 CUSHION,FRONT BOX NO.1 1 Rp10.000
11 92156-44K00-000 CUSHION,FRONT BOX NO.2 1 Rp18.000
12 92157-44K00-000 CUSHION,FRONT BOX NO.3 1 Rp6.000
13 92158-44K00-000 CUSHION,FRONT BOX NO.4 1 Rp5.500
14 92171-08K00-291 HOOK,LEG SHIELD (BLACK) 1 Rp10.000
15 09148-05060-000 NUT (M5) 2 Rp29.500
16 92172-44K00-000 BOLT,LEG SHIELD HOOK 1 Rp10.000
17 03541-0516A-000 SCREW 8 Rp3.500
18 03541-0516A-000 SCREW 3 Rp3.500
19 03541-0516A-000 SCREW 4 Rp3.500
20 08322-0106A-000 WASHER 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
