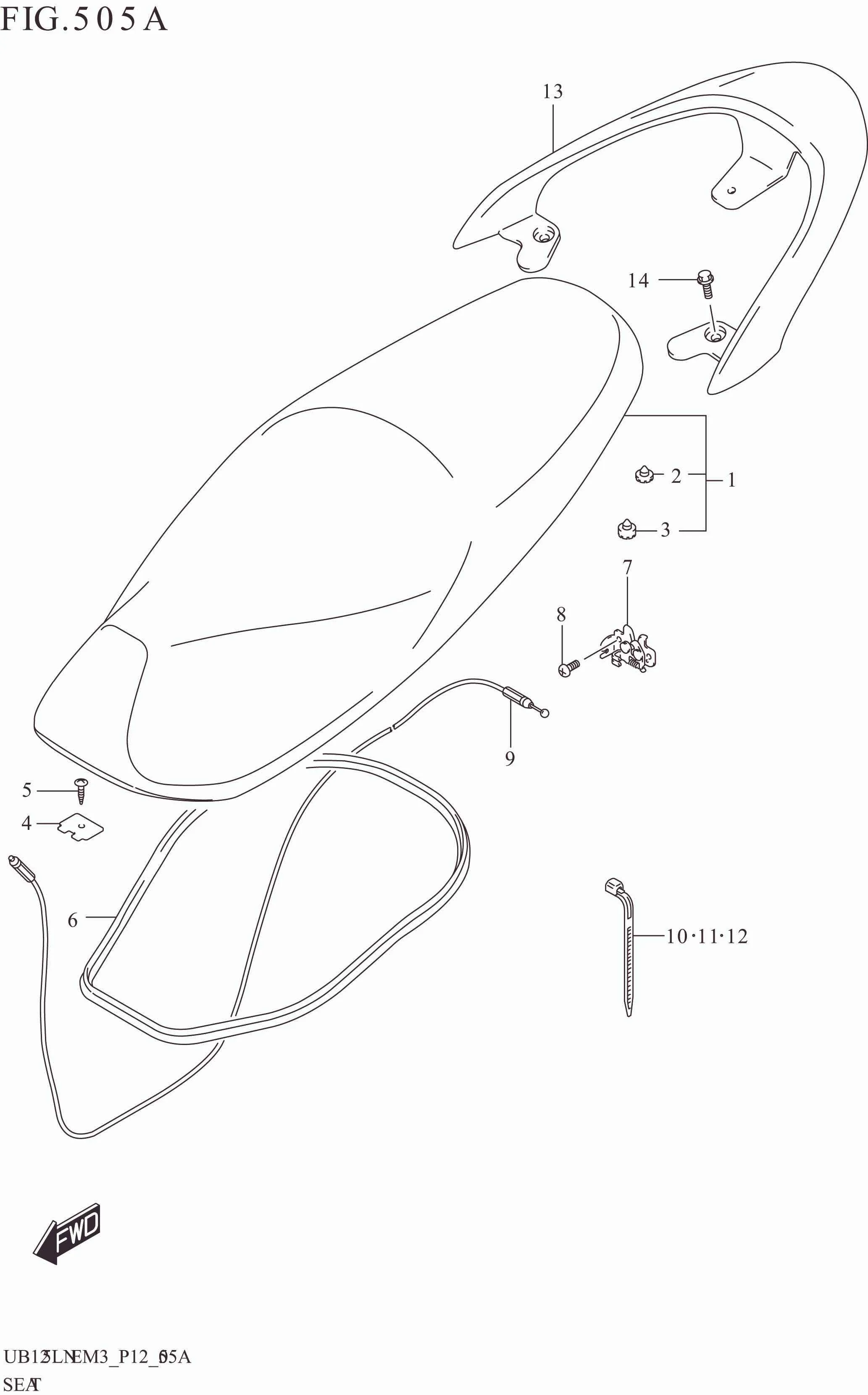

FIG. 505A SEAT

FIG. 505A SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-44K30-CHS SEAT ASSY (BROWN,BLACK,GRAY) 1 Rp910.000
2 45148-20GB0-000 .CUSHION,SEAT MOUNT 2 Rp10.000
3 45148-20GJ0-000 .CUSHION,SEAT MOUNT 2 Rp10.000
4 45271-32G10-000 PLATE,SEAT HINGE 1 Rp10.000
5 03541-0516A-000 SCREW 1 Rp3.500
6 45211-44K00-000 MOLDING,SEAT 1 Rp45.000
7 45700-33G40-000 BRACKET,STRIKER SUPPORT 1 Rp43.000
8 02112-0612A-000 SCREW 2 Rp3.500
9 45280-44K10-000 CABLE,SEAT LOCK 1 Rp58.000
10 36990-70F20-000 CLAMP,COMB SW WIRE (L:165) 1 Rp5.500
11 09407-14L01-000 CLAMP (L:125) 1 Rp5.500
12 09407-19L01-000 CLAMP (L:190) 2 Rp5.500
13 46211-27L00-YVB HANDLE,PILLION RIDER (BLACK) 1 Rp512.500
14 01550-0825A-000 BOLT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
