Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

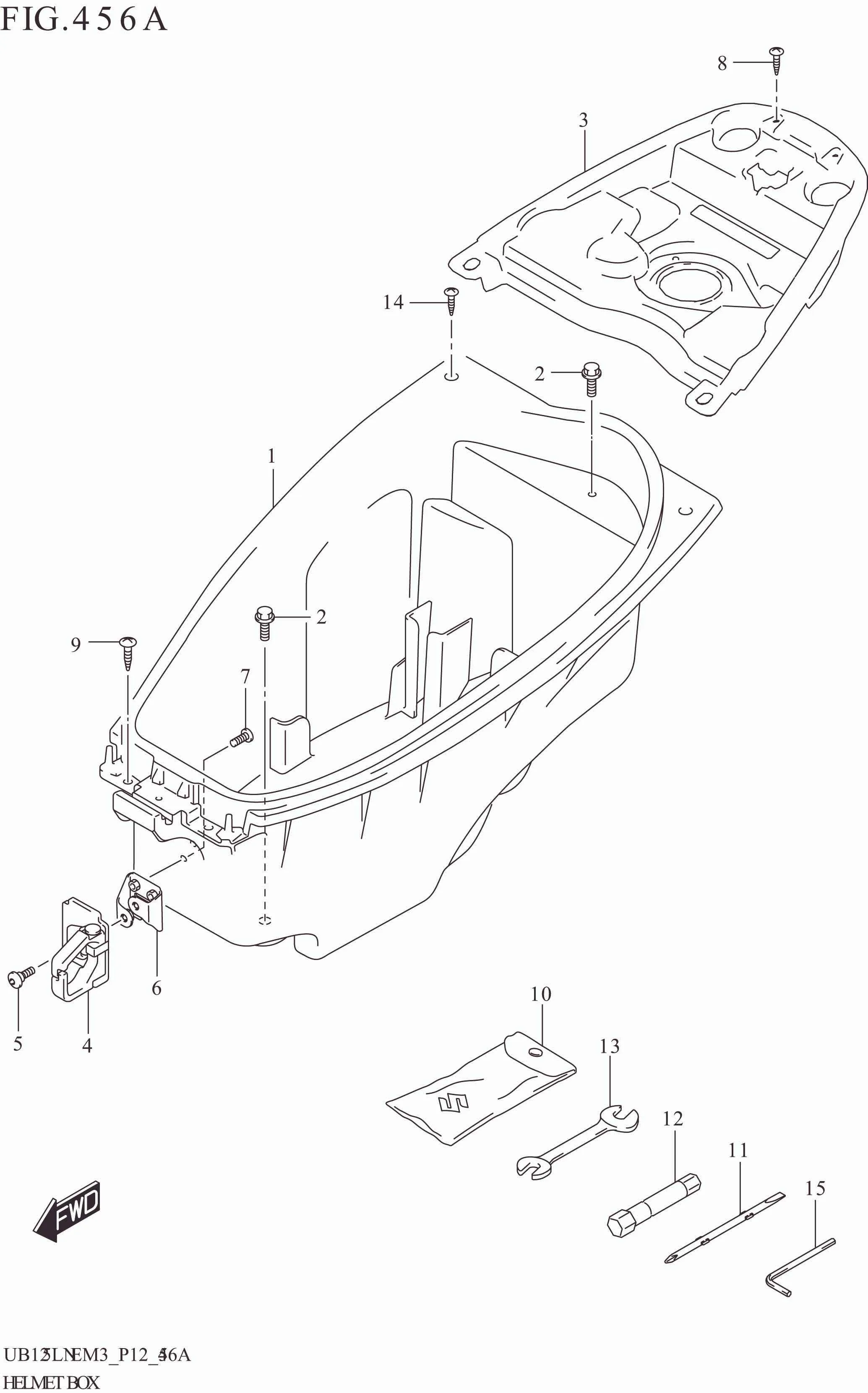

FIG. 456A HELMETBOX

FIG. 456A HELMETBOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-44K10-000 BOX,HELMET 1 Rp422.500
2 01550-0612A-000 BOLT 3 Rp3.500
3 92212-27L00-000 COVER,HELMET BOX 1 Rp65.500
4 92170-33G60-291 HOOK ASSY,FRAME COVER (BLACK) 1 Rp47.500
5 92178-33G50-000 SCREW,FRAME COVER HOOK 2 Rp10.000
6 92180-08K01-000 BRACKET,FRAME COVER HOOK 1 Rp35.500
7 02142-0512A-000 SCREW 3 Rp3.500
8 03541-0516A-000 SCREW 2 Rp3.500
9 03541-0516A-000 SCREW 2 Rp3.500
10 96511-44K00-000 BAG,TOOL 1 Rp8.000
11 96412-33G50-000 DRIVER (+,-) 1 Rp16.500
12 96414-33G70-000 SPANNER,BOX (16) 1 Rp41.000
13 96513-23J40-000 SPANNER,OPEN (10X14) 1 Rp41.000
14 03541-0520A-000 SCREW 2 Rp3.500
15 96514-23J20-000 SPANNER,HEXAGON (3) 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
