Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 405A BATTERY HOLDERFIG. 407A STANDFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 427A EVAP SYSTEMFIG. 435A FRONT LEG SHIELDFIG. 438A SIDE LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 454A WINDSCREENFIG. 456A HELMETBOXFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLECOVERFIG. 467A HANDLELEVERFIG. 474A REAR FENDERFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

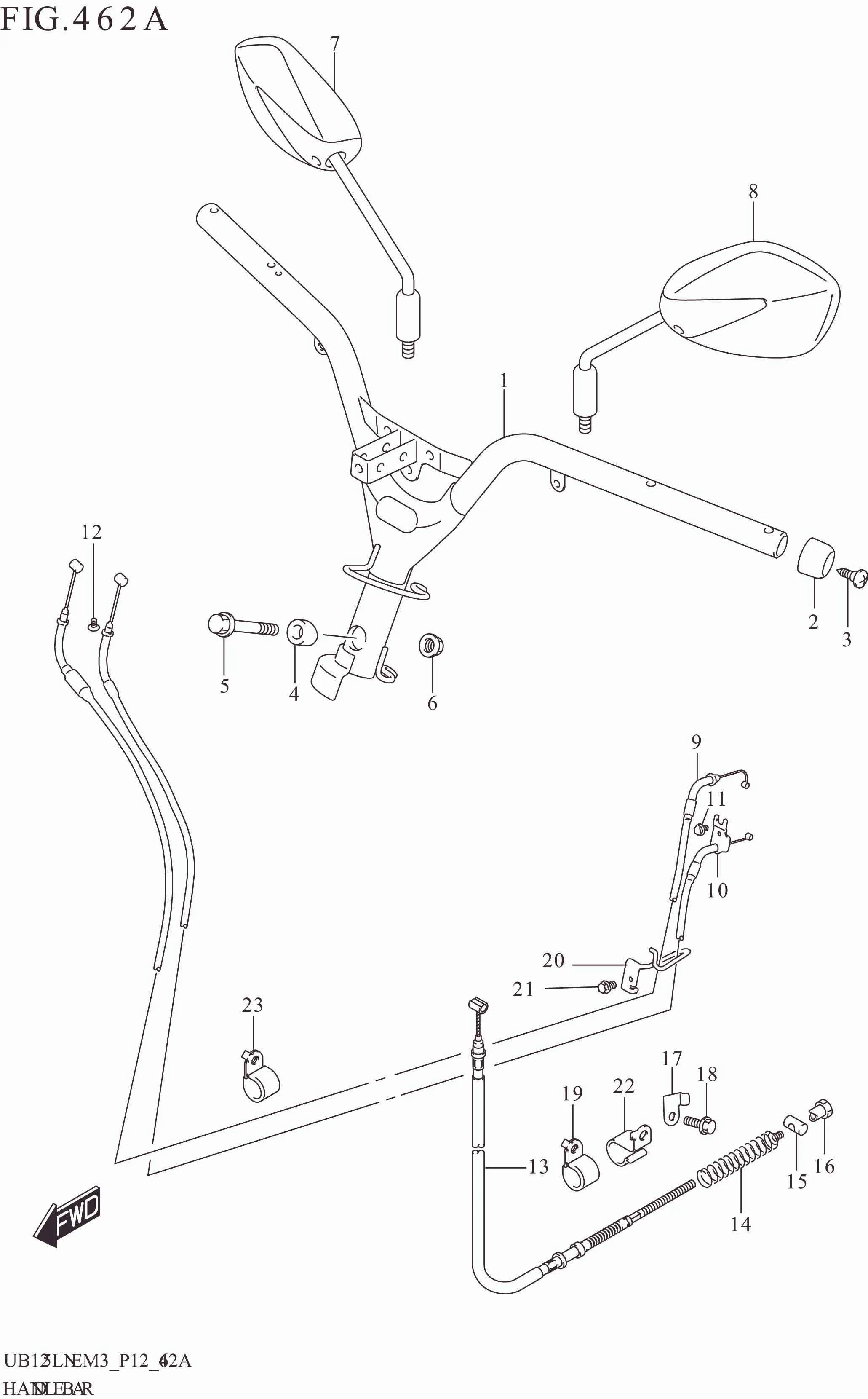

FIG. 462A HANDLEBAR

FIG. 462A HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 56110-27L10-000 HANDLEBAR 1 Rp395.000
2 56278-42K00-000 BALANCER,HANDLEBAR 2 Rp58.000
3 02122-0630B-000 SCREW 2 Rp15.500
4 51358-09G00-000 STOPPER,HANDLEBAR 1 Rp8.000
5 09103-10126-000 BOLT (10X48) 1 Rp28.500
6 64147-33G10-000 NUT,FR HUB 1 Rp15.000
7 56500-34J41-000 MIRROR ASSY,RR VIEW,R 1 Rp82.000
8 56600-34J41-000 MIRROR ASSY,RR VIEW,L 1 Rp82.000
9 58300-44K30-000 CABLE ASSY,THROTTLE NO.1 1 Rp104.500
10 58300-44K40-000 CABLE ASSY,THROTTLE NO.2 1 Rp134.500
11 01550-0510A-000 BOLT 1 Rp3.500
12 02142-0510A-000 SCREW 1 Rp4.000
13 58510-27L10-000 CABLE,REAR BRAKE 1 Rp140.000
14 58562-08K00-000 SPRING,REAR BRAKE CABLE 1 Rp11.500
15 09209-11002-000 PIN (11X18) 1 Rp7.500
16 09150-06010-000 NUT 1 Rp4.500
17 58575-39J00-000 PLATE,REAR BRAKE CABLE 1 Rp5.500
18 01547-0610A-000 BOLT 1 Rp3.000
19 58577-39J20-000 CLAMP,RR BK CABLE CRKC FR 1 Rp15.000
20 58620-02L20-000 GUIDE,CABLE 1 Rp21.500
21 01547-0610A-000 BOLT 1 Rp3.000
22 58577-27L00-000 CLAMP,REAR BRAKE CABLE NO.2 1 Rp14.500
23 58577-39J10-000 CLAMP,RR BK CABLE CRKC FR 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
