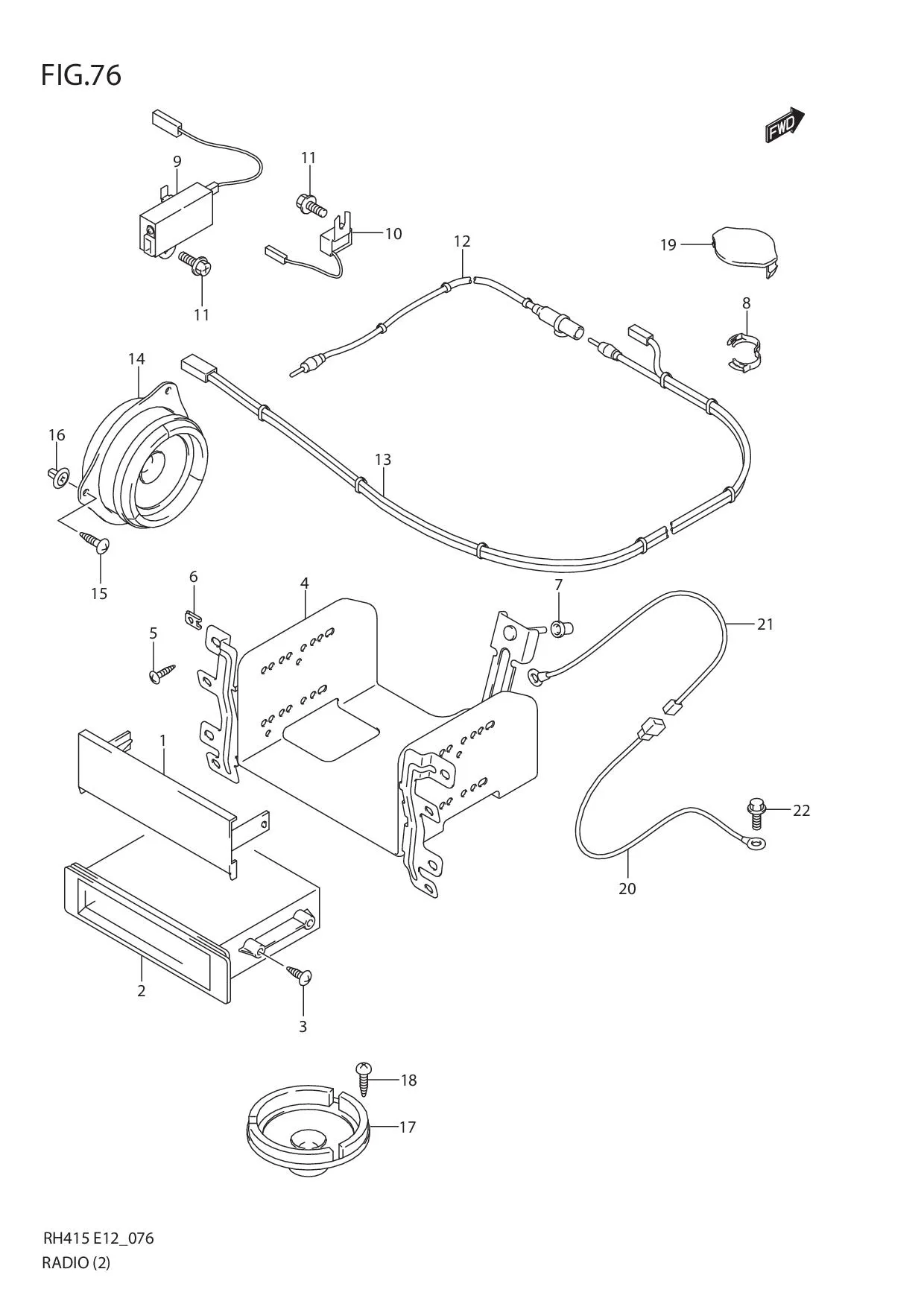

FIG.76 RADIO (TYPE 2:4DR)

FIG.76 RADIO (TYPE 2:4DR)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 39161-74G00-000		 COVER, RADIO HOLE 1 -
2 39182-77M10-000
SUB: 39182-70E50-000		 POCKET, TUNER 1 Rp38.000
3 03241-0512A-000
SUB: 03242-05123-000		 SCREW 4 Rp3.500
4 DISCONTINUE
SUB: 39320-59J00-000		 BRACKET, TUNER 1 -
5 03541-0516A-000
SUB: 03541B05163N000		 SCREW 4 Rp3.500
6 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
7 34955-59J00-000 BUSH, RADIO BRACKET 1 Rp18.500
8 DISCONTINUE
SUB: 36667-55G00-000		 CLAMP, NOISE SUPPRESSOR 1 -
9 DISCONTINUE
SUB: 39290-55G00-000		 AMPLIFIER, ANTENNA 1 -
10 DISCONTINUE
SUB: 39295-55G00-000		 FILTER ASSY, NOISE 1 -
11 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 2 Rp14.000
12 DISCONTINUE
SUB: 39270-59J00-000		 FEEDER, ANTENNA INSTRUMENT PANEL 1 -
13 DISCONTINUE
SUB: 39271-55G10-000		 FEEDER, GLASS ANTENNA 1 -
14 DISCONTINUE
SUB: 39104-59J20-000		 SPEAKER ASSY, FRONT 2 -
15 03241-0616C-000
SUB: 03242-06163-000		 SCREW 6 Rp17.000
16 09148-05035-000 NUT 6 Rp18.500
17 39102-54G21-000 SPEAKER ASSY, REAR 2 -
18 03111-0516A-000 SCREW 4 -
19 DISCONTINUE
SUB: 39239-50J00-000		 CAP, TWEETER HOLE 2 -
20 39312-60G00-000 WIRE, NOISE SUPPRESSOR 1 Rp47.500
21 39312-60B20-000 WIRE, NOISE SUPPRESSOR 1 Rp70.000
22 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
