  5. FIG.59 FOG LAMP (TYPE 2)

AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.51 ENGINE ELECTRICALFIG.52 STARTING MOTORFIG.53 GENERATORFIG.54 BATTERYFIG.55 SPEEDOMETER (TYPE 1)FIG.56 SPEEDOMETER (TYPE 2)FIG.57 HEAD LAMPFIG.58 FOG LAMP (TYPE 1)FIG.59 FOG LAMP (TYPE 2)FIG.60 ROOM LAMPFIG.61 REAR LAMPFIG.62 REAR LAMP (5DR)FIG.63 WIRING HARNESS (TYPE 1:4DR)FIG.64 WIRING HARNESS (TYPE 2:4DR)FIG.65 WIRING HARNESS (TYPE 1:5DR)FIG.66 WIRING HARNESS (TYPE 2:5DR)FIG.67 ELECTRICAL CONTROL (TYPE 1:4DR)FIG.68 ELECTRICAL CONTROL (TYPE 2:4DR)FIG.69 ELECTRICAL CONTROL (TYPE 1:5DR)FIG.70 ELECTRICAL CONTROL (TYPE 2:5DR)FIG.71 LOCK SETFIG.72 FR WINDOW WIPER AND WASHERFIG.73 REAR WINDOW WIPER (TYPE 1:5DR)FIG.74 REAR WINDOW WIPER (TYPE 2:5DR)FIG.75 RADIO (TYPE 1:4DR)FIG.76 RADIO (TYPE 2:4DR)FIG.77 RADIO (TYPE 1:5DR)FIG.78 RADIO (TYPE 2:5DR)

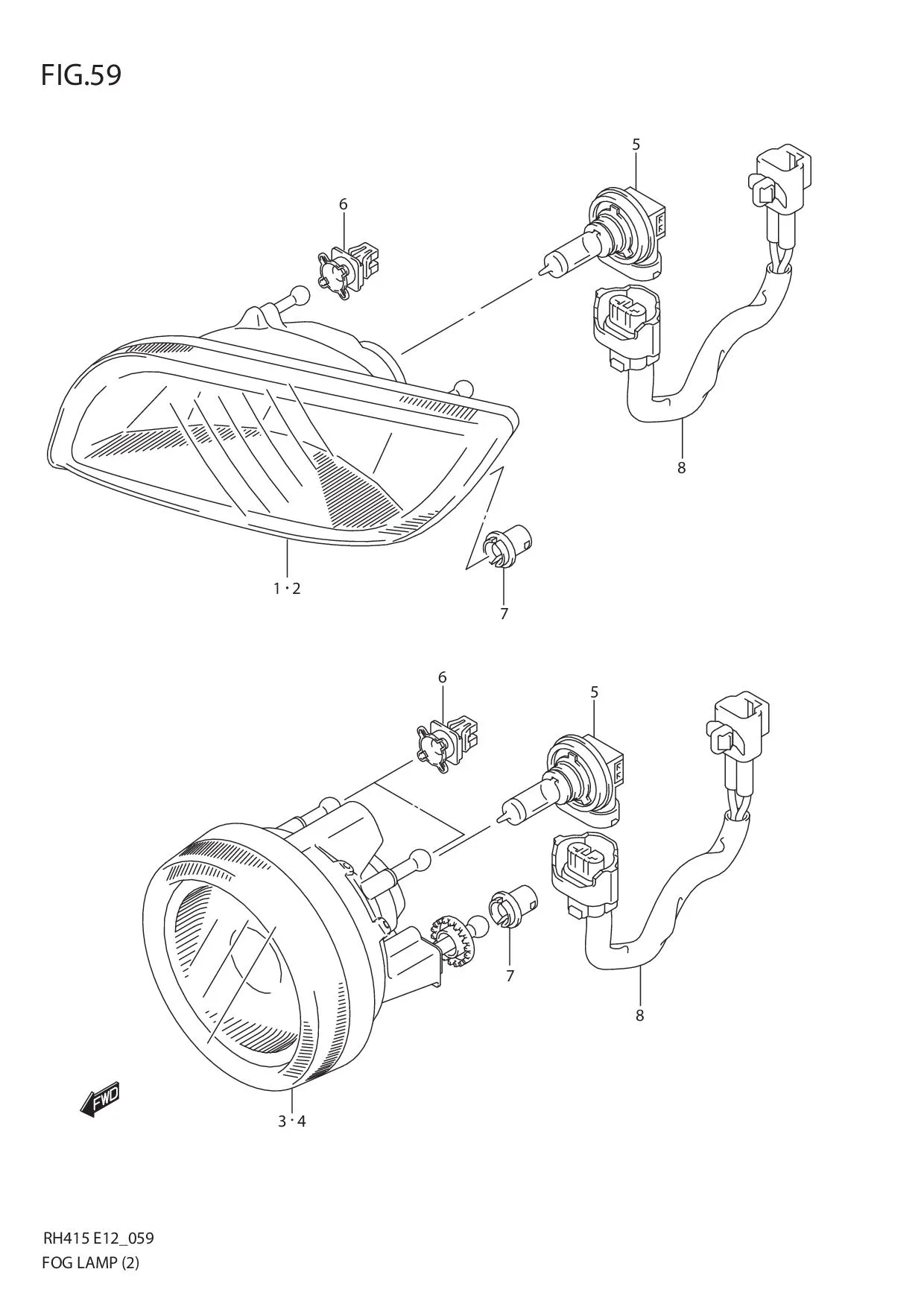

FIG.59 FOG LAMP (TYPE 2)

FIG.59 FOG LAMP (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 35510-54G50-000		 LAMP UNIT, FR FOG RH 1 - 4DR
2 35560-54G50-000 LAMP UNIT, FR FOG LH 1 Rp1.722.500 4DR
3 35510-54GA0-000 LAMP UNIT, FR FOG RH 1 Rp1.231.000 5DR
4 35560-54GA0-000 LAMP UNIT, FR FOG LH 1 Rp1.231.000 5DR
5 09471-12210-000 BULB (12V,55,H11) 2 Rp303.000
6 35153-54GA0-000 GROMMET, UPPER 4 Rp47.500
7 35153-54GB0-000 GROMMET, LOWER 2 Rp42.500
8 DISCONTINUE
SUB: 36813B54G20N000		 WIRE, FOG LAMP 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
