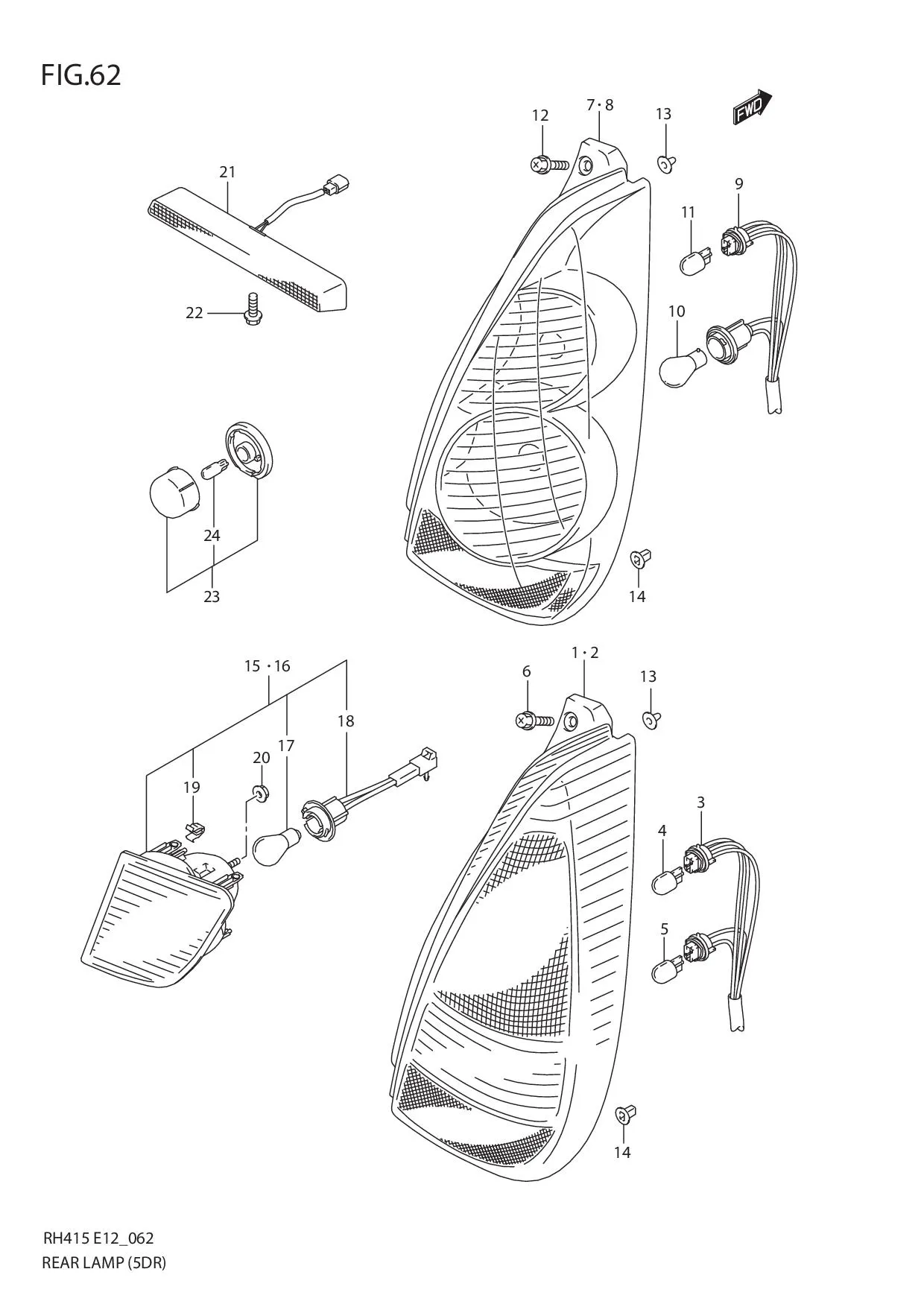

FIG.62 REAR LAMP (5DR)

FIG.62 REAR LAMP (5DR)
No No. Part Description Qty Price Per Pcs Remarks
1 35650-54G00-000 LAMP UNIT, RR COMBINATION RH 1 Rp3.066.500 TYPE 1
2 35670-54G00-000 LAMP UNIT, RR COMBINATION LH 1 Rp3.066.500 TYPE 1
3 DISCONTINUE
SUB: 35658-54G00-000		 SOCKET & CORD ASSY 2 - TYPE 1
4 09471-12192-000 BULB (12V,21/5W) 2 Rp56.000 TYPE 1
5 09471-12191-000 BULB (12V,21W) 2 Rp52.500 TYPE 1
6 DISCONTINUE
SUB: 09122-76004-000		 SCREW (6X16) 4 - TYPE 1
7 35650-54G10-000 LAMP UNIT, RR COMBINATION RH 1 Rp6.010.000 TYPE 2
8 35670-54G10-000 LAMP UNIT, RR COMBINATION LH 1 Rp6.010.000 TYPE 2
9 35658-54G12-000
SUB: 35658-54G10-000		 SOCKET & CORD ASSY 2 Rp1.880.000 TYPE 2
10 09471-12083-000 BULB (12V,21/5W) 2 Rp62.000 TYPE 2
11 09471-12191-000 BULB (12V,21W) 2 Rp52.500 TYPE 2
12 02162-0616A-000
SUB: 02162-06163L000		 SCREW 4 Rp3.000 TYPE 2
13 DISCONTINUE
SUB: 35153B63G00N000		 GROMMET, RR COMB UPPER 2 -
14 35153-67L10-000
SUB: 35153B54G00N000		 GROMMET, RR COMB LOWER 2 Rp7.000
15 36250-54G00-000 LAMP ASSY, BACK UP RH 1 Rp3.896.000
16 DISCONTINUE
SUB: 36270-54G00-000		 LAMP ASSY, BACK UP LH 1 -
17 09471-12045-000
SUB: 09471B12045N000		 •BULB (12V,21W) 2 Rp13.500
18 DISCONTINUE
SUB: 36258-54G00-000		 •SOCKET & CORD ASSY 2 -
19 09409-08326-000
SUB: 09409B08326N000		 •CLIP 6 Rp8.000
20 08316-1006A-000
SUB: 08316-10063L000		 NUT 4 Rp2.000
21 DISCONTINUE
SUB: 35810-82D00-000		 LAMP ASSY, HIGH MOUNT STOP 1 -
22 02142-0412B-000
SUB: 02142-04123-000		 SCREW 2 Rp3.500
23 35910-75F31-000
SUB: 35910-75F30-000		 LAMP ASSY, LICENSE 2 Rp181.000
24 09471-12081-000
SUB: 09471B12081N000		 •BULB (12V,5W) 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
