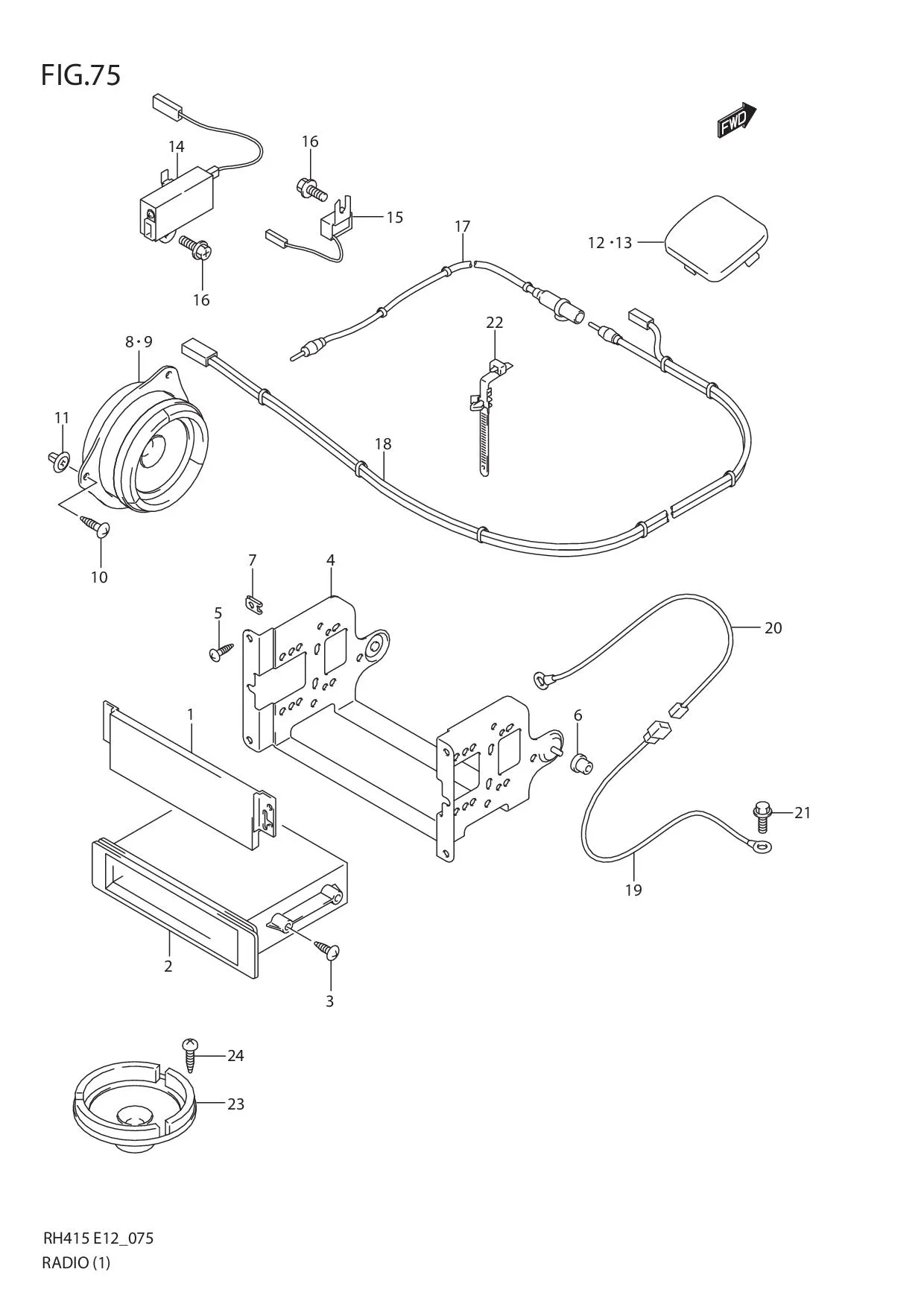

FIG.75 RADIO (TYPE 1:4DR)

FIG.75 RADIO (TYPE 1:4DR)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 39161-70E01-000		 COVER, RADIO HOLE 1 -
2 39182-77M10-000
SUB: 39182-70E50-000		 POCKET, TUNER 1 Rp38.000
3 03241-0512A-000
SUB: 03242-05123-000		 SCREW 4 Rp3.500
4 39321-54G03-000 BRACKET, TUNER 1 Rp140.500
5 03141-0516B-000
SUB: 03142-05163-000		 SCREW 4 Rp3.500
6 34955M54G10-000 BUSH, RADIO BRACKET 2 Rp6.500
7 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
8 39104-54G10-000 SPEAKER ASSY, FRONT DOOR RH 1 -
9 39104-54G00-000 SPEAKER ASSY, FRONT DOOR LH 1 -
10 03241-0616C-000
SUB: 03242-06163-000		 SCREW 6 Rp17.000
11 09148-05035-000 NUT 6 Rp18.500
12 DISCONTINUE
SUB: 73832-54G00-P4Z		 COVER, INSTRUMENT PANEL UPPER RH (GRAY) 1 -
13 DISCONTINUE
SUB: 73833-54G00-P4Z		 COVER, INSTRUMENT PANEL UPPER LH (GRAY) 1 -
14 DISCONTINUE
SUB: 39290-55G00-000		 AMPLIFIER, ANTENNA 1 -
15 DISCONTINUE
SUB: 39295-55G00-000		 FILTER ASSY, NOISE 1 -
16 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 2 Rp14.000
17 DISCONTINUE
SUB: 39270-54G00-000		 FEEDER, ANTENNA INSTRUMENT PANEL 1 -
18 DISCONTINUE
SUB: 39271-55G10-000		 FEEDER, GLASS ANTENNA 1 -
19 39312-60G00-000 WIRE, NOISE SUPPRESSOR 1 Rp47.500
20 39312-60B20-000 WIRE, NOISE SUPPRESSOR 1 Rp70.000
21 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 1 Rp14.000
22 09407-12404-000 CLAMP (L:140) 1 Rp19.500
23 39102-54G21-000 SPEAKER ASSY, REAR 2 -
24 03111-0516A-000 SCREW 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
