AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.51 ENGINE ELECTRICALFIG.52 STARTING MOTORFIG.53 GENERATORFIG.54 BATTERYFIG.55 SPEEDOMETER (TYPE 1)FIG.56 SPEEDOMETER (TYPE 2)FIG.57 HEAD LAMPFIG.58 FOG LAMP (TYPE 1)FIG.59 FOG LAMP (TYPE 2)FIG.60 ROOM LAMPFIG.61 REAR LAMPFIG.62 REAR LAMP (5DR)FIG.63 WIRING HARNESS (TYPE 1:4DR)FIG.64 WIRING HARNESS (TYPE 2:4DR)FIG.65 WIRING HARNESS (TYPE 1:5DR)FIG.66 WIRING HARNESS (TYPE 2:5DR)FIG.67 ELECTRICAL CONTROL (TYPE 1:4DR)FIG.68 ELECTRICAL CONTROL (TYPE 2:4DR)FIG.69 ELECTRICAL CONTROL (TYPE 1:5DR)FIG.70 ELECTRICAL CONTROL (TYPE 2:5DR)FIG.71 LOCK SETFIG.72 FR WINDOW WIPER AND WASHERFIG.73 REAR WINDOW WIPER (TYPE 1:5DR)FIG.74 REAR WINDOW WIPER (TYPE 2:5DR)FIG.75 RADIO (TYPE 1:4DR)FIG.76 RADIO (TYPE 2:4DR)FIG.77 RADIO (TYPE 1:5DR)FIG.78 RADIO (TYPE 2:5DR)

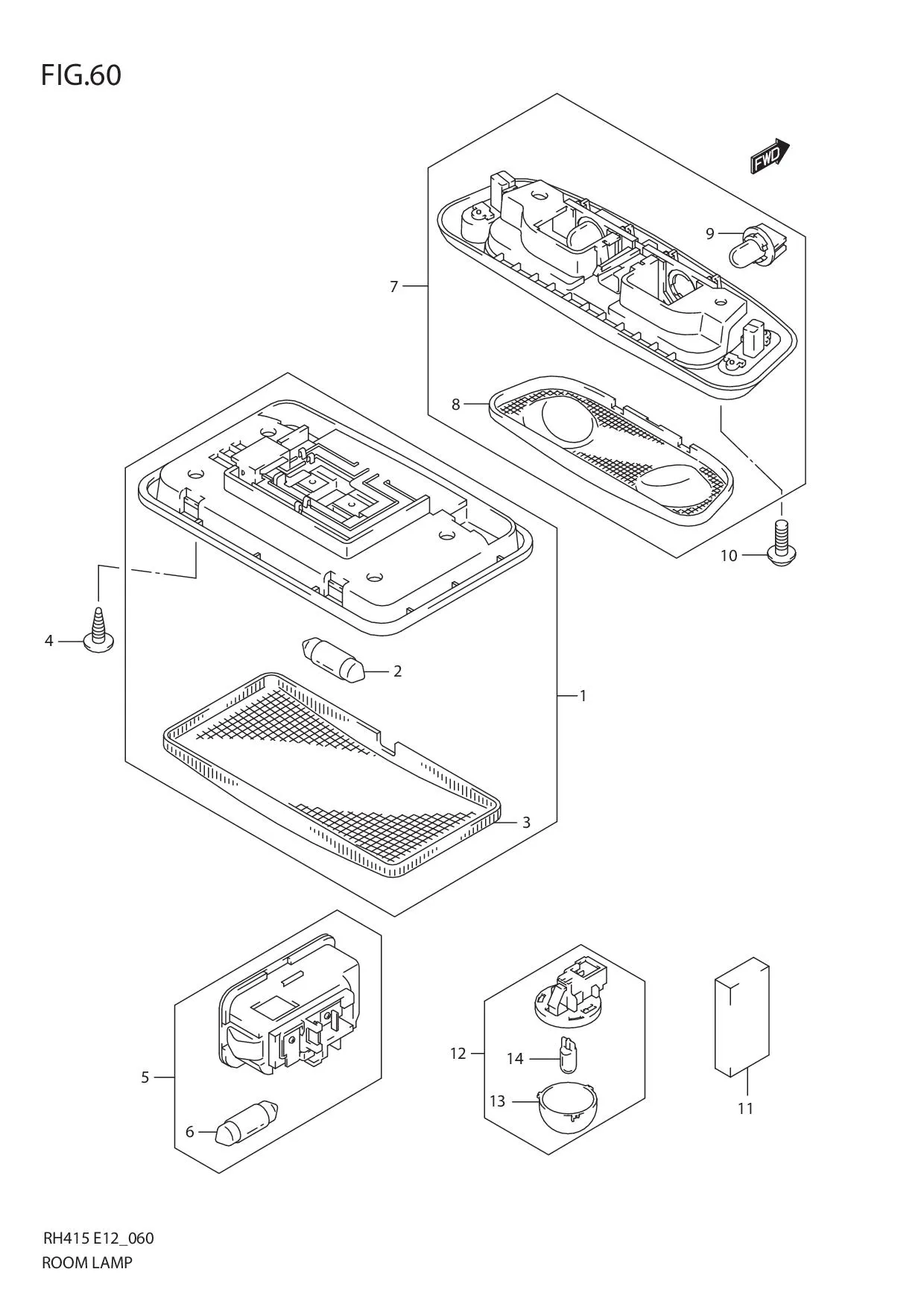

FIG.60 ROOM LAMP

FIG.60 ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 36210-60G01-6GS LAMP ASSY, ROOM (GRAY) 1 Rp549.000
2 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V,10W) 1 Rp30.500
3 DISCONTINUE
SUB: 36212-60G00-000		 •LENS, ROOM LAMP 1 -
4 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
5-1 DISCONTINUE
SUB: 36210-54G10-000		 LAMP ASSY, LUGGAGE ROOM 1 - TYPE 1:5DR
5-2 36210-54G20-000 LAMP ASSY, LUGGAGE ROOM 1 Rp199.500 TYPE 2:5DR
6-1 09471-12073-000 •BULB (12V,5W) 1 Rp26.500 TYPE 1:5DR
6-2 09471-12081-000
SUB: 09471B12081N000		 •BULB (12V,5W) 1 Rp11.000 TYPE 2:5DR
7 DISCONTINUE
SUB: 36230-65D01-6GS		 LAMP ASSY, SPOT (GRAY) 1 -
8 36232-65D00-000 •LENS 1 Rp1.236.000
9 09471-12113-000 •BULB (12V,8W) 2 Rp21.500
10 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
11 77591M75000-000 COVER, ROOM LAMP 1 Rp7.000 5DR
12 DISCONTINUE
SUB: 36230-70C00-000		 LAMP ASSY, TRUNK ROOM 1 - 4DR
13 DISCONTINUE
SUB: 36232-70C00-000		 •LENS 1 - 4DR
14 09471-12081-000
SUB: 09471B12081N000		 •BULB (12V,5W) 1 Rp11.000 4DR

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
