  5. FIG.66 WIRING HARNESS (TYPE 2:5DR)

AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.51 ENGINE ELECTRICALFIG.52 STARTING MOTORFIG.53 GENERATORFIG.54 BATTERYFIG.55 SPEEDOMETER (TYPE 1)FIG.56 SPEEDOMETER (TYPE 2)FIG.57 HEAD LAMPFIG.58 FOG LAMP (TYPE 1)FIG.59 FOG LAMP (TYPE 2)FIG.60 ROOM LAMPFIG.61 REAR LAMPFIG.62 REAR LAMP (5DR)FIG.63 WIRING HARNESS (TYPE 1:4DR)FIG.64 WIRING HARNESS (TYPE 2:4DR)FIG.65 WIRING HARNESS (TYPE 1:5DR)FIG.66 WIRING HARNESS (TYPE 2:5DR)FIG.67 ELECTRICAL CONTROL (TYPE 1:4DR)FIG.68 ELECTRICAL CONTROL (TYPE 2:4DR)FIG.69 ELECTRICAL CONTROL (TYPE 1:5DR)FIG.70 ELECTRICAL CONTROL (TYPE 2:5DR)FIG.71 LOCK SETFIG.72 FR WINDOW WIPER AND WASHERFIG.73 REAR WINDOW WIPER (TYPE 1:5DR)FIG.74 REAR WINDOW WIPER (TYPE 2:5DR)FIG.75 RADIO (TYPE 1:4DR)FIG.76 RADIO (TYPE 2:4DR)FIG.77 RADIO (TYPE 1:5DR)FIG.78 RADIO (TYPE 2:5DR)

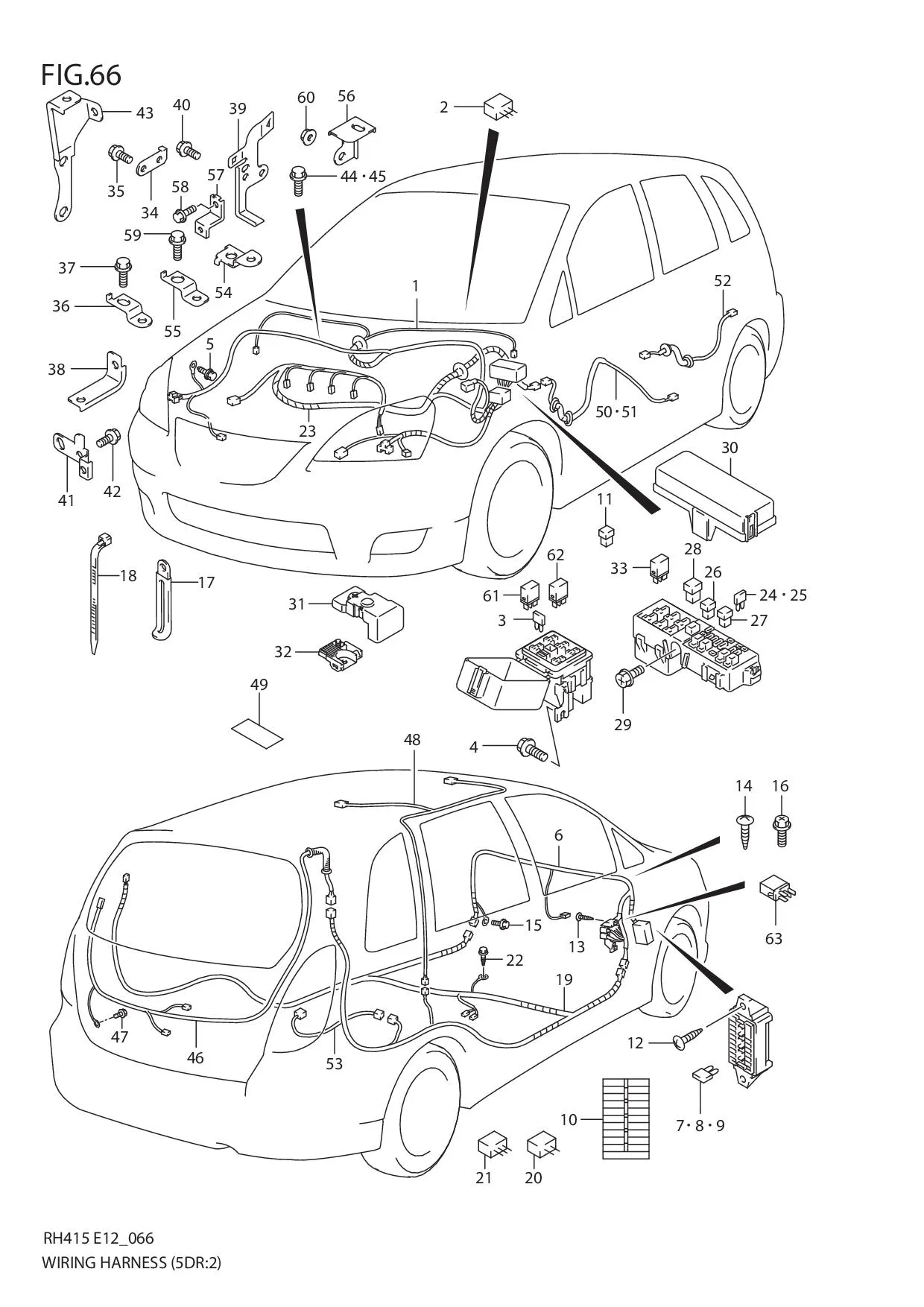

FIG.66 WIRING HARNESS (TYPE 2:5DR)

FIG.66 WIRING HARNESS (TYPE 2:5DR)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 36601B59J60N000		 HARNESS ASSY, MAIN 1 -
2 DISCONTINUE
SUB: 33459-61B10-000		 •DIODE 1 -
3 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 2 Rp12.000
4 02162-0616A-000
SUB: 02162-06163L000		 SCREW 1 Rp3.000
5 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 2 Rp14.000
6-1 DISCONTINUE
SUB: 36620B59JQ0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - MT
6-2 DISCONTINUE
SUB: 36620B59JR0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - AT
7 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 7 Rp12.000
8 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 6 Rp12.000
9 09481-20501-000 •FUSE (20A) 2 Rp14.500
10 36717-59J01-000 LABEL, FUSE BOX 1 -
11 09481M60401-000 FUSE (60A) 1 Rp66.000
12 02142-0612A-000
SUB: 02142B06123N000		 SCREW 2 Rp4.000
13 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
14 03141-0516B-000
SUB: 03142-05163-000		 SCREW 1 Rp3.500
15 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 2 Rp14.000
16 02162-0612B-000
SUB: 02162-06123-000		 SCREW 1 Rp16.000
17 DISCONTINUE
SUB: 09404B06433N000		 CLAMP (L:80) 1 -
18 DISCONTINUE
SUB: 09407-25401L000		 CLAMP (L:235) 1 -
19 DISCONTINUE
SUB: 36603B59JA0N000		 HARNESS ASSY, FLOOR 1 -
20 DISCONTINUE
SUB: 36639-74F00-000		 •DIODE 1 -
21 DISCONTINUE
SUB: 33459-61B20-000		 •DIODE 1 -
22 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 3 Rp14.000
23-1 DISCONTINUE
SUB: 36605B59JJ0N000		 HARNESS ASSY, ENGINE 1 - MT
23-2 DISCONTINUE
SUB: 36605B59J80N000		 HARNESS ASSY, ENGINE 1 - AT
24 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 4 Rp12.000
25 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 1 Rp13.000
26 09481-30401-000 •FUSE (30A) 1 Rp42.000
27 09481M60401-000 •FUSE (60A) 2 Rp66.000
28 09481-80301-000
SUB: 09481M80301-000		 •FUSE (80A) 1 Rp74.000
29 DISCONTINUE
SUB: 09138-06040-000		 •BOLT (6X10) 2 -
30 DISCONTINUE
SUB: 36738-54GC0-000		 •COVER, FUSE BOX 1 -
31 36694-50J01-000 •COVER, BATTERY TERMINAL 1 Rp98.000
32 36739-50J00-000 •FUSE, BATTERY TERMINAL 1 Rp131.500
33 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, MAIN 2 Rp47.000
34 36651-51G00-000
SUB: 36651B51G00N000		 BRACKET, ENGINE HARNESS 1 Rp5.500
35 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
36 DISCONTINUE
SUB: 36651-62G10-000		 BRACKET, ENGINE HARNESS 1 -
37 01550-0812A-000
SUB: 01550B08123N000		 BOLT 2 Rp3.500
38 DISCONTINUE
SUB: 36653-76G00-000		 BRACKET, ENGINE HARNESS 1 -
39 DISCONTINUE
SUB: 36653B80G00N000		 BRACKET, O2 CONNECTOR 1 -
40 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
41 DISCONTINUE
SUB: 36654-76G00-000		 BRACKET, ENGINE HARNESS 1 -
42 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
43 DISCONTINUE
SUB: 36995-81A11-000		 BRACKET, ENGINE 1 -
44 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
45 01550-1016A-000
SUB: 01550-10163-000		 BOLT 1 Rp5.500
46 DISCONTINUE
SUB: 36680B54G31N000		 HARNESS ASSY, BACK DOOR 1 -
47 DISCONTINUE
SUB: 09132-06023-000		 SCREW (6X16) 1 -
48 DISCONTINUE
SUB: 36820-54G01-000		 WIRE, ROOM LAMP 1 -
49 36930M82000-000
SUB: 36930M82010-000		 COVER, ROOM LAMP 8 Rp6.500
50 DISCONTINUE
SUB: 36756B59JD0N000		 WIRE, FRONT DOOR RH 1 -
51 DISCONTINUE
SUB: 36757B59JB0N000		 WIRE, FRONT DOOR LH 1 -
52 DISCONTINUE
SUB: 36751B54G30N000		 WIRE, REAR DOOR 2 -
53 DISCONTINUE
SUB: 36840-54G00-000		 WIRE, FUEL PUMP 1 -
54 DISCONTINUE
SUB: 36655B54G50N000		 BRACKET, ENGINE HARNESS 1 - MT
55 DISCONTINUE
SUB: 36651-65G10-000		 BRACKET, ENGINE HARNESS 1 - AT
56 DISCONTINUE
SUB: 36655-54G60-000		 BRACKET, ENGINE HARNESS 1 - AT
57 DISCONTINUE
SUB: 36656-76G10-000		 BRACKET, ENGINE HARNESS 1 - AT
58 01550-0812A-000
SUB: 01550B08123N000		 BOLT 2 Rp3.500
59 01550-1016A-000
SUB: 01550-10163-000		 BOLT 1 Rp5.500
60 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
61 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, RADIATOR FAN 3 Rp47.000
62 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, HORN 1 Rp47.000
63 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, HEADLAMP 2 Rp47.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
