  5. FIG.63 WIRING HARNESS (TYPE 1:4DR)

AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.51 ENGINE ELECTRICALFIG.52 STARTING MOTORFIG.53 GENERATORFIG.54 BATTERYFIG.55 SPEEDOMETER (TYPE 1)FIG.56 SPEEDOMETER (TYPE 2)FIG.57 HEAD LAMPFIG.58 FOG LAMP (TYPE 1)FIG.59 FOG LAMP (TYPE 2)FIG.60 ROOM LAMPFIG.61 REAR LAMPFIG.62 REAR LAMP (5DR)FIG.63 WIRING HARNESS (TYPE 1:4DR)FIG.64 WIRING HARNESS (TYPE 2:4DR)FIG.65 WIRING HARNESS (TYPE 1:5DR)FIG.66 WIRING HARNESS (TYPE 2:5DR)FIG.67 ELECTRICAL CONTROL (TYPE 1:4DR)FIG.68 ELECTRICAL CONTROL (TYPE 2:4DR)FIG.69 ELECTRICAL CONTROL (TYPE 1:5DR)FIG.70 ELECTRICAL CONTROL (TYPE 2:5DR)FIG.71 LOCK SETFIG.72 FR WINDOW WIPER AND WASHERFIG.73 REAR WINDOW WIPER (TYPE 1:5DR)FIG.74 REAR WINDOW WIPER (TYPE 2:5DR)FIG.75 RADIO (TYPE 1:4DR)FIG.76 RADIO (TYPE 2:4DR)FIG.77 RADIO (TYPE 1:5DR)FIG.78 RADIO (TYPE 2:5DR)

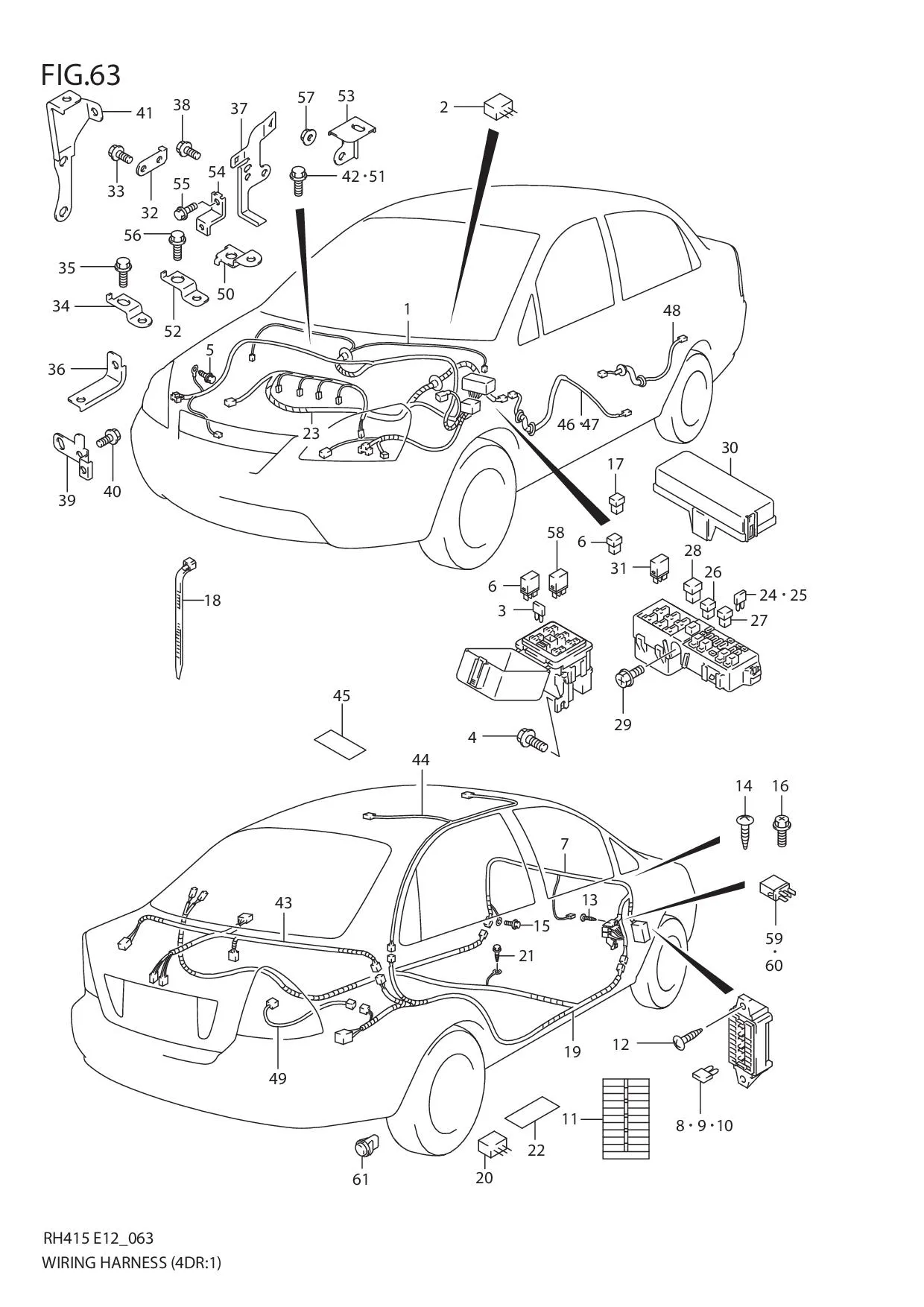

FIG.63 WIRING HARNESS (TYPE 1:4DR)

FIG.63 WIRING HARNESS (TYPE 1:4DR)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 36601B55G60N000		 HARNESS ASSY, WIRING MAIN 1 -
2 DISCONTINUE
SUB: 33459-61B10-000		 •DIODE 1 -
3 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 2 Rp12.000
4 02162-0616A-000
SUB: 02162-06163L000		 SCREW 1 Rp3.000
5 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 2 Rp14.000
6 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, RADIATOR 3 Rp47.000
7-1 DISCONTINUE
SUB: 36620B55GQ0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - MT
7-2 DISCONTINUE
SUB: 36620B55GR0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - AT
8 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 0 Rp12.000
9 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 0 Rp12.000
10 09481-20501-000 •FUSE (20A) 0 Rp14.500
11 DISCONTINUE
SUB: 36717-54G01-000		 LABEL, FUSE BOX 1 -
12 02142-0612A-000
SUB: 02142B06123N000		 SCREW 2 Rp4.000
13 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
14 03141-0516B-000
SUB: 03142-05163-000		 SCREW 1 Rp3.500
15 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 2 Rp14.000
16 02162-0612B-000
SUB: 02162-06123-000		 SCREW 1 Rp16.000
17 09481M60401-000 FUSE (60A) 1 Rp66.000
18 DISCONTINUE
SUB: 09407-25401L000		 CLAMP (L:235) 1 -
19 DISCONTINUE
SUB: 36630B55GD0N000		 HARNESS ASSY, FLOOR 1 -
20 DISCONTINUE
SUB: 36639-74F00-000		 •DIODE 1 -
21 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 3 Rp14.000
22 36930M82000-000
SUB: 36930M82010-000		 COVER, FLOOR HARNESS 4 Rp6.500
23-1 DISCONTINUE
SUB: 36605B54GJ0N000		 HARNESS ASSY, WIRING ENGINE 1 -
23-2 DISCONTINUE
SUB: 36605B54G80N000		 HARNESS ASSY, WIRING ENGINE 1 - AT
24 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 0 Rp12.000
25 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 1 Rp13.000
26 09481-30401-000 •FUSE (30A) 1 Rp42.000
27 09481M60401-000 •FUSE (60A) 0 Rp66.000
28 09481-80301-000
SUB: 09481M80301-000		 •FUSE (80A) 1 Rp74.000
29 DISCONTINUE
SUB: 09138-06040-000		 •BOLT (6X10) 2 -
30 DISCONTINUE
SUB: 36738-54GB0-000		 •COVER, FUSE BOX 1 -
31 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, MAIN 1 Rp47.000
32 36651-51G00-000
SUB: 36651B51G00N000		 BRACKET, ENGINE HARNESS 1 Rp5.500
33 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
34 DISCONTINUE
SUB: 36651-62G10-000		 BRACKET 1 -
35 01550-0812A-000
SUB: 01550B08123N000		 BOLT 1 Rp3.500
36 DISCONTINUE
SUB: 36653-76G00-000		 BRACKET 1 -
37 DISCONTINUE
SUB: 36653B80G00N000		 BRACKET, O2 CONNECTOR 1 -
38 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
39 DISCONTINUE
SUB: 36654-76G00-000		 BRACKET, ENGINE HARNESS 1 -
40 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
41 DISCONTINUE
SUB: 36995-81A11-000		 BRACKET, INJECTOR HARNESS 1 -
42 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
43 DISCONTINUE
SUB: 36670B55G10N000		 HARNESS ASSY, TRUNK 1 -
44 DISCONTINUE
SUB: 36820-55G00-000		 WIRE, DOME LAMP 1 -
45 36930M82000-000
SUB: 36930M82010-000		 COVER, DOME LAMP 6 Rp6.500
46 DISCONTINUE
SUB: 36756B54GD0N000		 WIRE, FRONT DOOR RH 1 -
47 DISCONTINUE
SUB: 36757B54GB0N000		 WIRE, FRONT DOOR LH 1 -
48 DISCONTINUE
SUB: 36751B54G30N000		 WIRE, REAR DOOR 2 -
49 DISCONTINUE
SUB: 36840-54G00-000		 WIRE, FUEL PUMP 1 -
50 DISCONTINUE
SUB: 36655B54G50N000		 BRACKET, ENGINE HARNESS 1 - MT
51 01550-0816A-000
SUB: 01550M08163-000		 BOLT 1 Rp6.000
52 DISCONTINUE
SUB: 36651-65G10-000		 BRACKET, ENGINE HARNESS 1 - AT
53 DISCONTINUE
SUB: 36655-54G60-000		 BRACKET, ENGINE HARNESS 1 - AT
54 DISCONTINUE
SUB: 36656-76G10-000		 BRACKET, HARNESS 1 - AT
55 01550-0812A-000
SUB: 01550B08123N000		 BOLT 1 Rp3.500 AT
56 01550-1016A-000
SUB: 01550-10163-000		 BOLT 1 Rp5.500 AT
57 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000 AT
58 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, HORN 1 Rp47.000
59 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, HEAD & LAMP 2 Rp47.000
60 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, FRONT FOG LAMP 1 Rp47.000
61 DISCONTINUE
SUB: 38840-65D10-000		 CAP, REAR WASHER HOLE 1 -
