  5. FIG.65 WIRING HARNESS (TYPE 1:5DR)

AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.51 ENGINE ELECTRICALFIG.52 STARTING MOTORFIG.53 GENERATORFIG.54 BATTERYFIG.55 SPEEDOMETER (TYPE 1)FIG.56 SPEEDOMETER (TYPE 2)FIG.57 HEAD LAMPFIG.58 FOG LAMP (TYPE 1)FIG.59 FOG LAMP (TYPE 2)FIG.60 ROOM LAMPFIG.61 REAR LAMPFIG.62 REAR LAMP (5DR)FIG.63 WIRING HARNESS (TYPE 1:4DR)FIG.64 WIRING HARNESS (TYPE 2:4DR)FIG.65 WIRING HARNESS (TYPE 1:5DR)FIG.66 WIRING HARNESS (TYPE 2:5DR)FIG.67 ELECTRICAL CONTROL (TYPE 1:4DR)FIG.68 ELECTRICAL CONTROL (TYPE 2:4DR)FIG.69 ELECTRICAL CONTROL (TYPE 1:5DR)FIG.70 ELECTRICAL CONTROL (TYPE 2:5DR)FIG.71 LOCK SETFIG.72 FR WINDOW WIPER AND WASHERFIG.73 REAR WINDOW WIPER (TYPE 1:5DR)FIG.74 REAR WINDOW WIPER (TYPE 2:5DR)FIG.75 RADIO (TYPE 1:4DR)FIG.76 RADIO (TYPE 2:4DR)FIG.77 RADIO (TYPE 1:5DR)FIG.78 RADIO (TYPE 2:5DR)

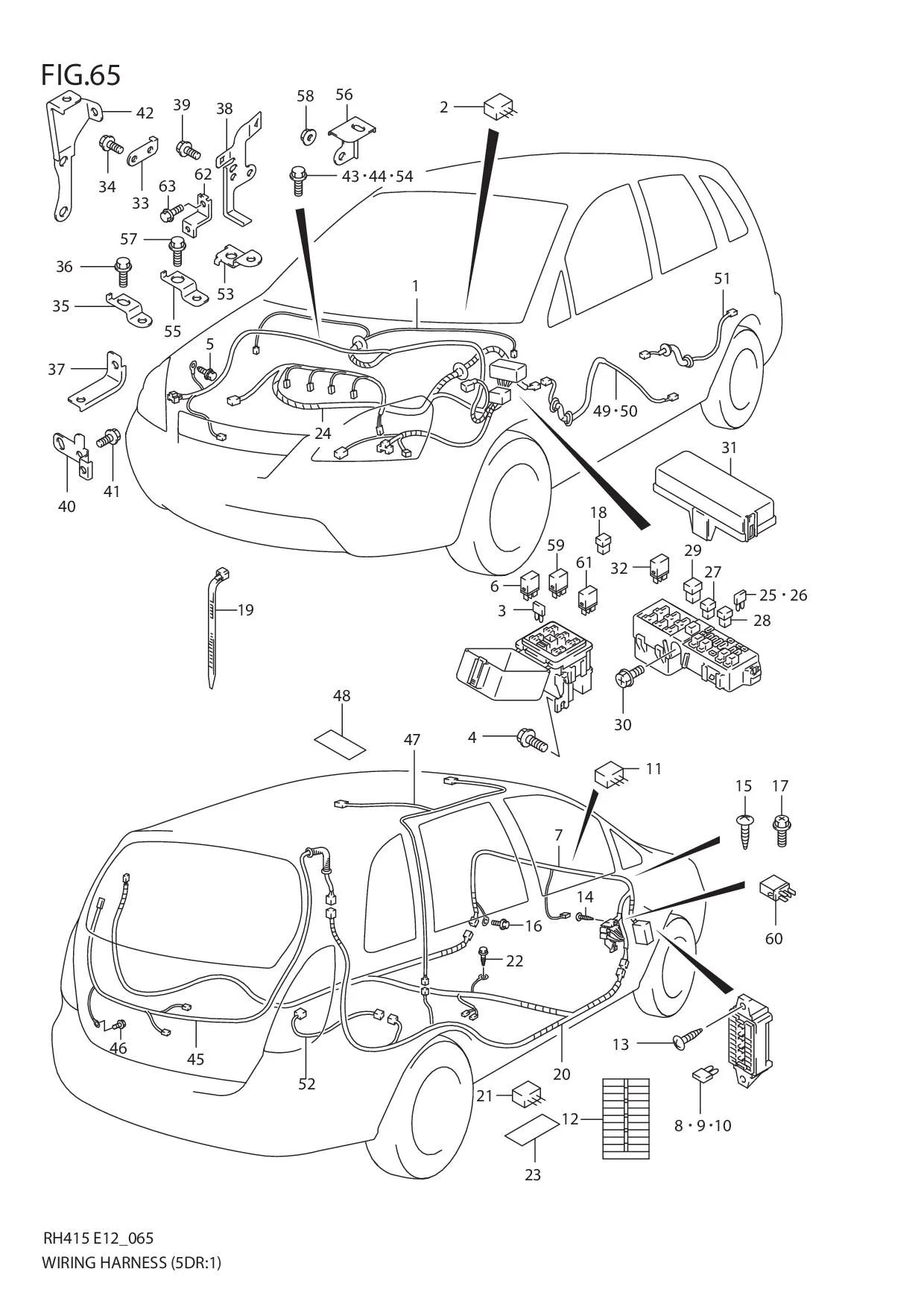

FIG.65 WIRING HARNESS (TYPE 1:5DR)

FIG.65 WIRING HARNESS (TYPE 1:5DR)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 36601B55G60N000		 HARNESS ASSY, WIRING MAIN 1 -
2 DISCONTINUE
SUB: 33459-61B10-000		 •DIODE 1 -
3 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 2 Rp12.000
4 02162-0616A-000
SUB: 02162-06163L000		 SCREW 1 Rp3.000
5 09115-06005-000
SUB: 09115-06001-000		 BOLT, GROUND (6X16) 1 Rp14.000
6 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, RADIATOR 3 Rp47.000
7-1 DISCONTINUE
SUB: 36620B55GQ0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - MT
7-2 DISCONTINUE
SUB: 36620B55GR0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - AT
8 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 0 Rp12.000
9 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 0 Rp12.000
10 09481-20501-000 •FUSE (20A) 0 Rp14.500
11 DISCONTINUE
SUB: 33459-61B10-000		 •DIODE 1 -
12 DISCONTINUE
SUB: 36717-54G01-000		 LABEL, FUSE BOX 1 -
13 02142-0612A-000
SUB: 02142B06123N000		 SCREW 2 Rp4.000
14 03141-0516B-000
SUB: 03142-05123-000		 SCREW, HOLDER 2 Rp3.500
15 03141-0516B-000
SUB: 03142-05163-000		 SCREW, HARNESS 1 Rp3.500
16 09115-06005-000
SUB: 09115-06001-000		 B0LT, GROUND (6X16) 2 Rp14.000
17 02162-0612B-000
SUB: 02162-06123-000		 SCREW , GROUND 1 Rp16.000
18 09481M60401-000 FUSE (60A) 1 Rp66.000
19 DISCONTINUE
SUB: 09407-25401L000		 CLAMP (L:235) 1 -
20 DISCONTINUE
SUB: 36603B54GA0N000		 HARNESS ASSY, FLOOR 1 -
21 DISCONTINUE
SUB: 33459-61B20-000		 •DIODE 1 -
22 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 1 Rp14.000
23 36930M82000-000
SUB: 36930M82010-000		 COVER, FLOOR HARNESS 4 Rp6.500
24-1 DISCONTINUE
SUB: 36605B54GJ0N000		 HARNESS ASSY, WIRING ENGINE 1 - MT
24-2 DISCONTINUE
SUB: 36605B54G80N000		 HARNESS ASSY, WIRING ENGINE 1 - AT
25 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 0 Rp12.000
26 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 1 Rp13.000
27 09481-30401-000 •FUSE (30A) 1 Rp42.000
28 09481M60401-000 •FUSE (60A) 2 Rp66.000
29 09481-80301-000
SUB: 09481M80301-000		 •FUSE (80A) 1 Rp74.000
30 DISCONTINUE
SUB: 09138-06040-000		 •BOLT (6X10) 2 -
31 DISCONTINUE
SUB: 36738-54GB0-000		 •COVER, FUSE BOX 1 -
32 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, MAIN 1 Rp47.000
33 36651-51G00-000
SUB: 36651B51G00N000		 BRACKET, ENGINE HARNESS 1 Rp5.500
34 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
35 DISCONTINUE
SUB: 36651-62G10-000		 BRACKET, ENGINE HARNESS 1 -
36 01550-0812A-000
SUB: 01550B08123N000		 BOLT 1 Rp3.500
37 DISCONTINUE
SUB: 36653-76G00-000		 BRACKET, ENGINE HARNESS 1 -
38 DISCONTINUE
SUB: 36653B80G00N000		 BRACKET, 02 CONNECTOR 1 -
39 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
40 DISCONTINUE
SUB: 36654-76G00-000		 BRACKET, ENGINE HARNESS 1 -
41 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
42 DISCONTINUE
SUB: 36995-81A11-000		 BRACKET, ENGINE HARNESS 1 -
43 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
44 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
45 DISCONTINUE
SUB: 36680B54G30N000		 HARNESS ASSY, BACK DOOR 1 -
46 DISCONTINUE
SUB: 09132-06023-000		 SCREW (6X16) 1 -
47 DISCONTINUE
SUB: 36820-54G01-000		 WIRE, ROOM LAMP 1 -
48 36930M82000-000
SUB: 36930M82010-000		 COVER, ROOM LAMP WIRE 8 Rp6.500
49 DISCONTINUE
SUB: 36756B54GD0N000		 WIRE, FRONT DOOR RH 1 -
50 DISCONTINUE
SUB: 36757B54GB0N000		 WIRE, FRONT DOOR LH 1 -
51 DISCONTINUE
SUB: 36751B54G30N000		 WIRE, REAR DOOR 2 -
52 DISCONTINUE
SUB: 36840-54G00-000		 WIRE, FUEL PUMP 1 -
53 DISCONTINUE
SUB: 36655B54G50N000		 BRACKET, ENGINE HARNESS 1 - MT
54 01550-0816A-000
SUB: 01550M08163-000		 BOLT 1 Rp6.000 MT
55 DISCONTINUE
SUB: 36651-65G10-000		 BRACKET, ENGINE HARNESS 1 - AT
56 DISCONTINUE
SUB: 36655-54G60-000		 BRACKET, ENGINE HARNESS 1 - AT
57 01550-1016A-000
SUB: 01550-10163-000		 BOLT 1 Rp5.500 AT
58 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000 AT
59 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, HORN 1 Rp47.000
60 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, LIGHT SMALL/HEAD 2 Rp47.000
61 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, FRONT FOG LAMP 1 Rp47.000
62 DISCONTINUE
SUB: 36656-76G10-000		 BRACKET, ENGINE HARNESS 1 -
63 01550-0812A-000
SUB: 01550B08123N000		 BOLT 1 Rp3.500
