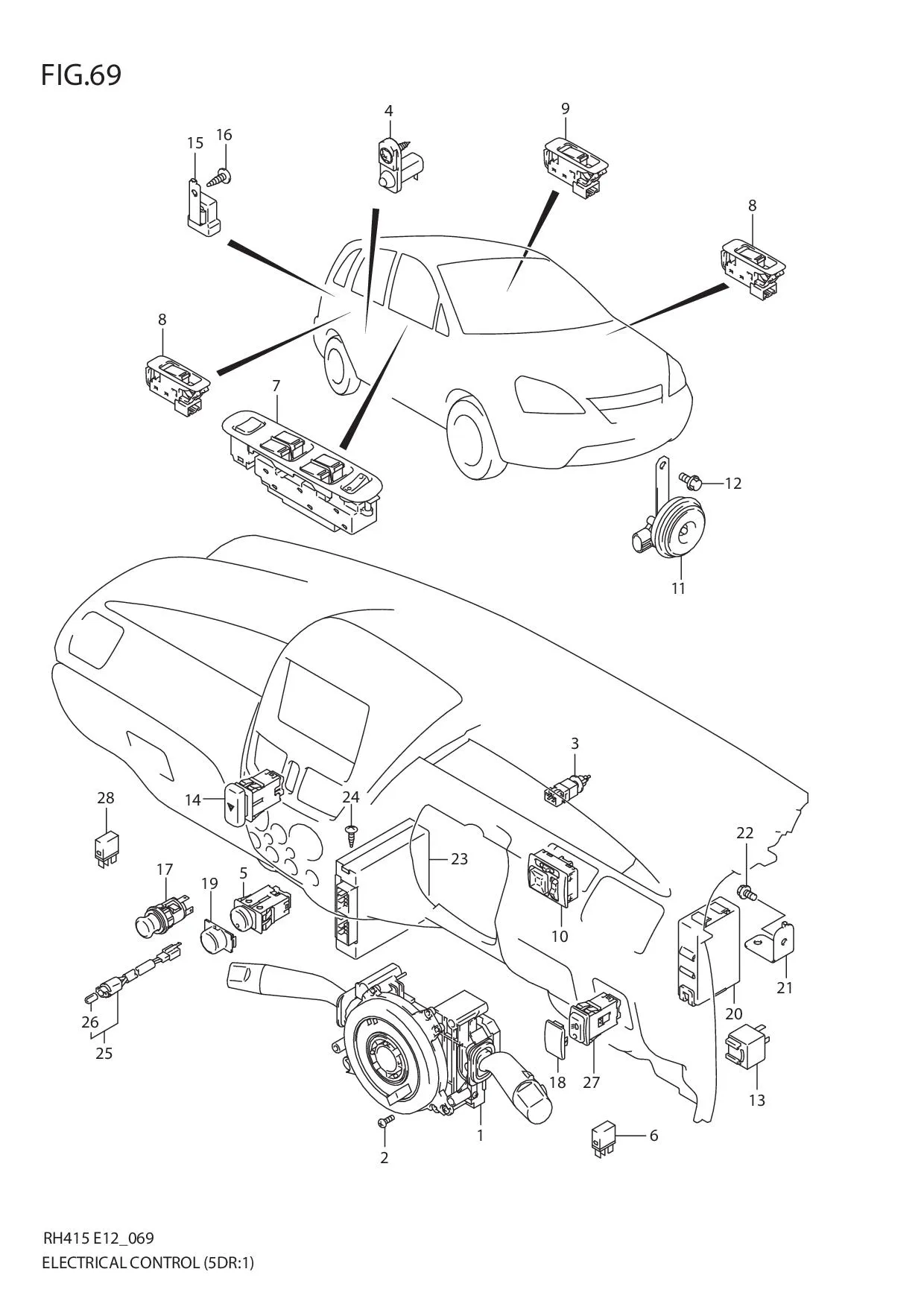

FIG.69 ELECTRICAL CONTROL (TYPE 1:5DR)

FIG.69 ELECTRICAL CONTROL (TYPE 1:5DR)
No No. Part Description Qty Price Per Pcs Remarks
1 37400-54G20-000 SWITCH ASSY, COMBINATION 1 Rp3.121.000
2 02112-0512A-000
SUB: 02112B05123N000		 SCREW 3 Rp2.500
3 37740-81K00-000
SUB: 37740B75H10N000		 SWITCH ASSY, STOP LAMP 1 Rp77.500
4 37670-76G00-000 SWITCH ASSY, DOOR 4 Rp123.500
5 DISCONTINUE
SUB: 37860-54G00-000		 SWITCH ASSY, REAR DEFOGGER 1 -
6 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, REAR DEFOGGER 1 Rp47.000
7 37990-54G11-P4Z SWITCH ASSY, POWER WINDOW MAIN (GRAY) 1 Rp4.262.500
8 37995-75F00-P4Z SWITCH ASSY, POWER WINDOW SUB (GRAY) 1 Rp606.500
9 37995-75F00-P4Z SWITCH ASSY, POWER WINDOW REAR (GRAY) 2 Rp606.500
10 37950-75F10-000 SWITCH ASSY, MIRROR 1 Rp531.500
11 DISCONTINUE
SUB: 38500B54G00N000		 HORN ASSY 1 -
12 DISCONTINUE
SUB: 09117-08098-000		 BOLT (8X20) 1 -
13 DISCONTINUE
SUB: 38610-54G00-000		 RELAY, TURN SIGNAL 1 -
14 DISCONTINUE
SUB: 37430-76F00-000		 SWITCH ASSY, HAZARD WARNING 1 -
15 DISCONTINUE
SUB: 38860-80G00-000		 RELAY, REAR WIPER 1 -
16 03141-0516B-000
SUB: 03142-05123-000		 SCREW 1 Rp3.500
17 DISCONTINUE
SUB: 39400-54G00-000		 LIGHTER ASSY, CIGARETTE 1 -
18 37285-75F30-000
SUB: 37285-75F10-000		 CAP, OPTION SWITCH HOLE 4 Rp37.500
19 37285-54G00-000 CAP, OPTION SWITCH HOLE 3 Rp34.500
20 DISCONTINUE
SUB: 38700-54G10-000		 CONTROLLER ASSY, POWER DOOR LOCK 1 -
21 DISCONTINUE
SUB: 38701-54G00-000		 BRACKET, DOOR LOCK CONTROLLER 1 -
22 02162-0612B-000
SUB: 02162-06123-000		 SCREW 1 Rp16.000
23 DISCONTINUE
SUB: 38880-55GE3-000		 CONTROLLER ASSY, AT 1 -
24 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
25 DISCONTINUE
SUB: 36550-60E00-000		 LAMP ASSY, ASH TRAY ILLUMINATION 1 -
26 DISCONTINUE
SUB: 09471-12091-000		 •BULB (12V,1.4W G30) 1 -
27 DISCONTINUE
SUB: 37270-54G10-000		 SWITCH 1 -
28 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, FRONT FOG LAMP 1 Rp47.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
