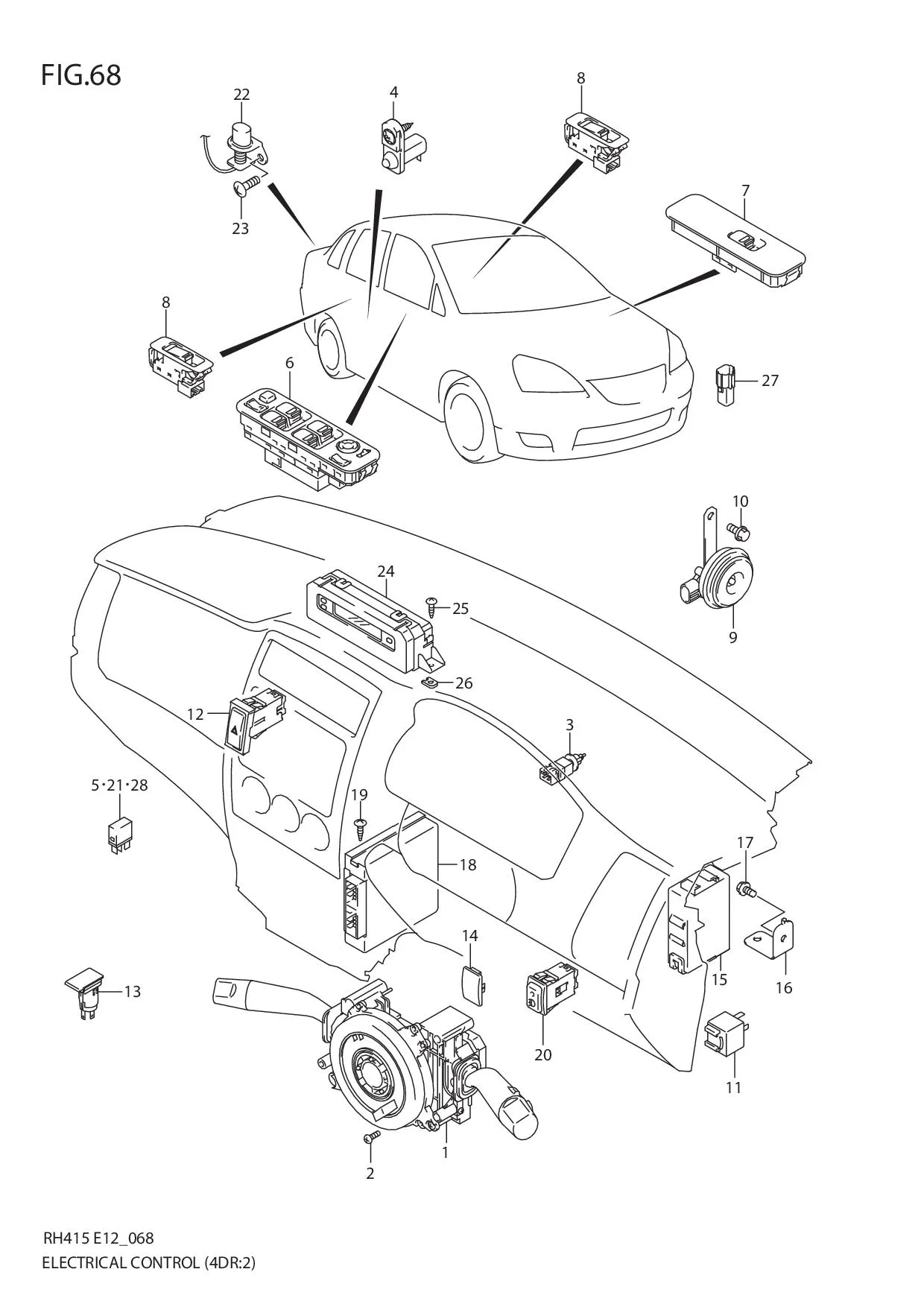

FIG.68 ELECTRICAL CONTROL (TYPE 2:4DR)

FIG.68 ELECTRICAL CONTROL (TYPE 2:4DR)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 37400-54GN0-000		 SWITCH ASSY, COMBINATION 1 -
2 02112-0512A-000
SUB: 02112B05123N000		 SCREW 3 Rp2.500
3 37740-81K00-000
SUB: 37740B75H10N000		 SWITCH ASSY, STOP LAMP 1 Rp77.500
4 37670-58J10-000
SUB: 37670-58J00-000		 SWITCH ASSY, DOOR 4 Rp107.500
5 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, REAR DEFOGGER 1 Rp47.000
6 37990-59J20-ZL9 SWITCH ASSY, POWER WINDOW MAIN (SILVER) 1 Rp4.970.500
7 37995-50J00-ZL9 SWITCH ASSY, POWER WINDOW SUB (SILVER) 1 Rp753.500
8 DISCONTINUE
SUB: 37995-75F00-ZL9		 SWITCH ASSY, POWER WINDOW REAR (SILVER) 2 -
9 DISCONTINUE
SUB: 38500B54G00N000		 HORN ASSY 1 -
10 09115-08001-000 BOLT (8X18) 1 Rp21.500
11 DISCONTINUE
SUB: 38610-54G00-000		 RELAY, TURN SIGNAL 1 -
12 37430-59J00-000 SWITCH ASSY, HAZARD WARNING 1 Rp396.500
13 DISCONTINUE
SUB: 39410-59J00-P4Z		 SOCKET ASSY (GRAY) 1 -
14 37285-75F30-000
SUB: 37285-75F10-000		 CAP, OPTION SWITCH HOLE 5 Rp37.500
15 DISCONTINUE
SUB: 38700-54G10-000		 CONTROLLER, POWER DOOR LOCK 1 -
16 DISCONTINUE
SUB: 38701-54G00-000		 BRACKET, DOOR LOCK CONTROLLER 1 -
17 02162-0612B-000
SUB: 02162-06123-000		 SCREW 1 Rp16.000
18 DISCONTINUE
SUB: 38880-59JE0-000		 CONTROLLER ASSY, AT 1 - AT
19 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500 AT
20 37270-59J01-000
SUB: 37270-59J00-000		 SWITCH ASSY, FRONT FOG LAMP 1 Rp491.000
21 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, FR FOG LAMP 1 Rp47.000
22 DISCONTINUE
SUB: 37675-55G00-000		 SWITCH ASSY, TRUNK 1 -
23 02142-0508A-000
SUB: 02142-05083-000		 SCREW 1 Rp3.500
24 34600-59J01-000
SUB: 34600-59J00-000		 MONITOR ASSY, INFORMATION 1 Rp2.015.500
25 03141-0516B-000
SUB: 03142-05163-000		 SCREW 2 Rp3.500
26 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
27 DISCONTINUE
SUB: 95643B65D00N000		 SENSOR, OUTSIDE TEMPERATURE 1 -
28 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, CIGAR LIGHTER 1 Rp47.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
