AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.51 ENGINE ELECTRICALFIG.52 STARTING MOTORFIG.53 GENERATORFIG.54 BATTERYFIG.55 SPEEDOMETER (TYPE 1)FIG.56 SPEEDOMETER (TYPE 2)FIG.57 HEAD LAMPFIG.58 FOG LAMP (TYPE 1)FIG.59 FOG LAMP (TYPE 2)FIG.60 ROOM LAMPFIG.61 REAR LAMPFIG.62 REAR LAMP (5DR)FIG.63 WIRING HARNESS (TYPE 1:4DR)FIG.64 WIRING HARNESS (TYPE 2:4DR)FIG.65 WIRING HARNESS (TYPE 1:5DR)FIG.66 WIRING HARNESS (TYPE 2:5DR)FIG.67 ELECTRICAL CONTROL (TYPE 1:4DR)FIG.68 ELECTRICAL CONTROL (TYPE 2:4DR)FIG.69 ELECTRICAL CONTROL (TYPE 1:5DR)FIG.70 ELECTRICAL CONTROL (TYPE 2:5DR)FIG.71 LOCK SETFIG.72 FR WINDOW WIPER AND WASHERFIG.73 REAR WINDOW WIPER (TYPE 1:5DR)FIG.74 REAR WINDOW WIPER (TYPE 2:5DR)FIG.75 RADIO (TYPE 1:4DR)FIG.76 RADIO (TYPE 2:4DR)FIG.77 RADIO (TYPE 1:5DR)FIG.78 RADIO (TYPE 2:5DR)

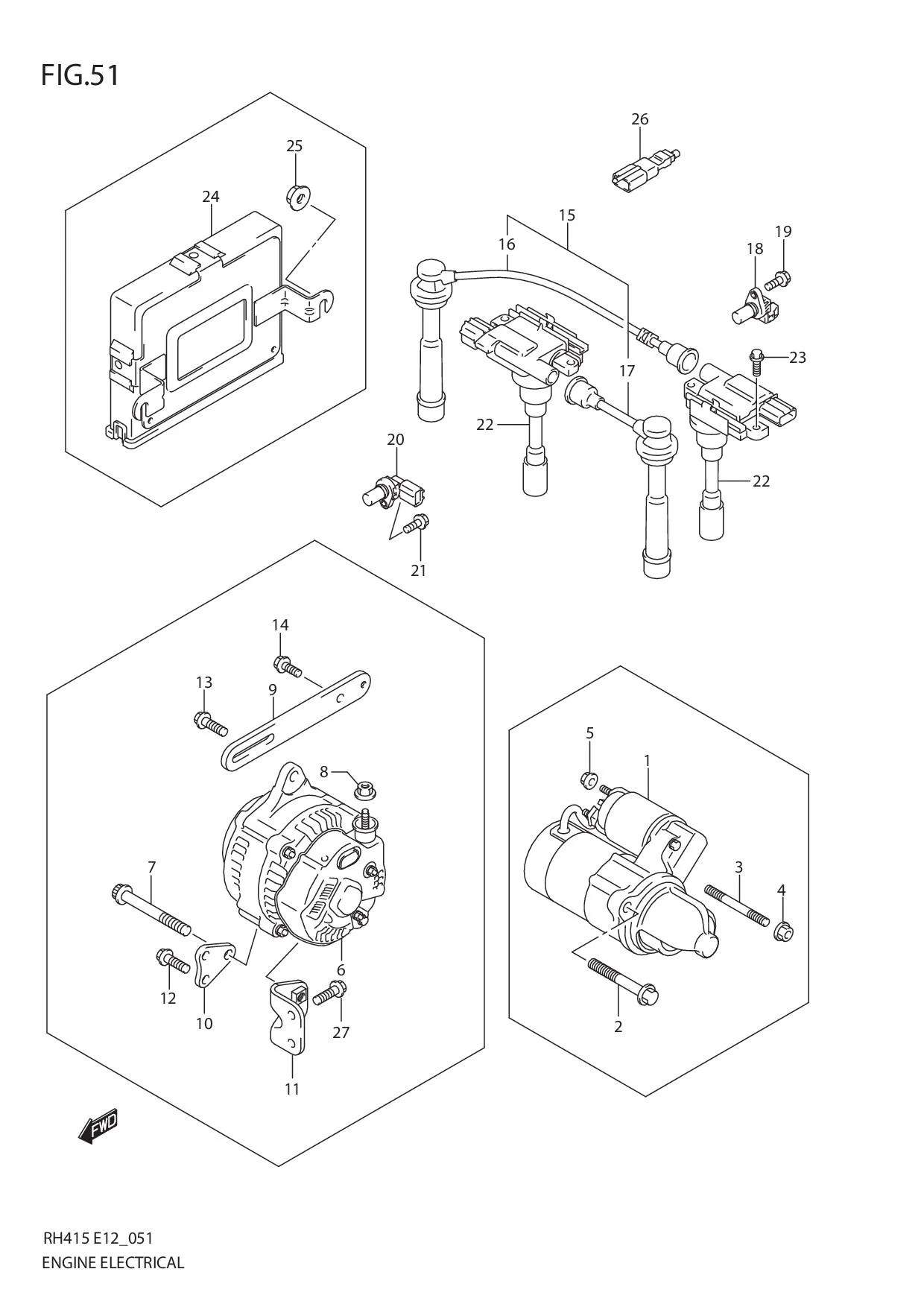

FIG.51 ENGINE ELECTRICAL

FIG.51 ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31100-80G00-000 MOTOR ASSY, STARTING 1 Rp11.061.000
2 01550-1060A-000
SUB: 01550-10603-000		 BOLT 1 Rp5.500
3 DISCONTINUE
SUB: 01421-1060A-000		 STUD BOLT 1 -
4 08316-1010A-000
SUB: 08316-10103-000		 NUT 1 Rp3.500
5 08316-1008A-000
SUB: 08316B10083N000		 NUT 1 Rp3.500
6 31400-80G12-000
SUB: 31400-80G10-000		 GENERATOR ASSY 1 Rp9.266.500
7 07120-1085A-000 BOLT (10X85) 1 Rp34.000
8 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
9 DISCONTINUE
SUB: 11561-54G00-000		 ARM, GENERATOR ADJUSTING 1 -
10-1 DISCONTINUE
SUB: 11551-69G00-000		 BRACKET, GENERATOR NO.1 1 - TYPE 1
10-2 DISCONTINUE
SUB: 11550-54G00-000		 BRACKET, GENERATOR NO.1 1 - TYPE 2
11-1 DISCONTINUE
SUB: 11552-54G01-000		 BRACKET, GENERATOR NO.2 1 - TYPE 1
11-2 DISCONTINUE
SUB: 11550-54G10-000		 BRACKET, GENERATOR NO.2 1 - TYPE 2
12-1 01550-0820A-000
SUB: 01550-08203-000		 BOLT 4 Rp5.500 TYPE 1
12-2 01550-0825A-000
SUB: 01550-08253-000		 BOLT 2 Rp3.500 TYPE 2
13 09118M08174-000
SUB: 09118-08107-000		 BOLT (8X25) 1 Rp19.500
14 01550-0820A-000
SUB: 01550-08203-000		 BOLT 1 Rp5.500
15 33705-80G00-000 CORD SET, HIGH TENSION 1 Rp469.000
16 33730-80G00-000 •CORD, HIGH TENSION NO.2 1 Rp258.000 L:270
17 33740-80G00-000 •CORD, HIGH TENSION NO.3 1 Rp259.000 L:80
18 33220-50G02-000 SENSOR ASSY, CAM POSITION 1 Rp970.000
19 01550-0616A-000
SUB: 01550-06163-000		 BOLT 1 Rp3.500
20 33220-80G00-000 SENSOR ASSY, CRANK POSITION 1 Rp1.071.000
21 09103-06283-000
SUB: 09103-06240-000		 BOLT (6X16) 1 Rp20.500
22 33400-65G02-000
SUB: 33400-65G00-000		 COIL ASSY, IGNITION 2 Rp2.226.500
23 01560-0620A-000
SUB: 01560-06203-000		 BOLT 4 Rp2.500
24-1 DISCONTINUE
SUB: 33920-55GK1-000		 CONTROLLER, INJECTION/AIR CON 1 - TYPE 1
24-2 33920-59JK0-000 CONTROLLER, INJECTION/AIR CON 1 Rp18.311.000 TYPE 2
25 09159-06076-000 NUT 2 Rp19.500
26 33926-60G10-000 RESISTER, CO ADJUSTER 1 Rp703.000
27 01550-0830B-000
SUB: 01550-08303L000		 BOLT 2 Rp3.000 TYPE 2

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
