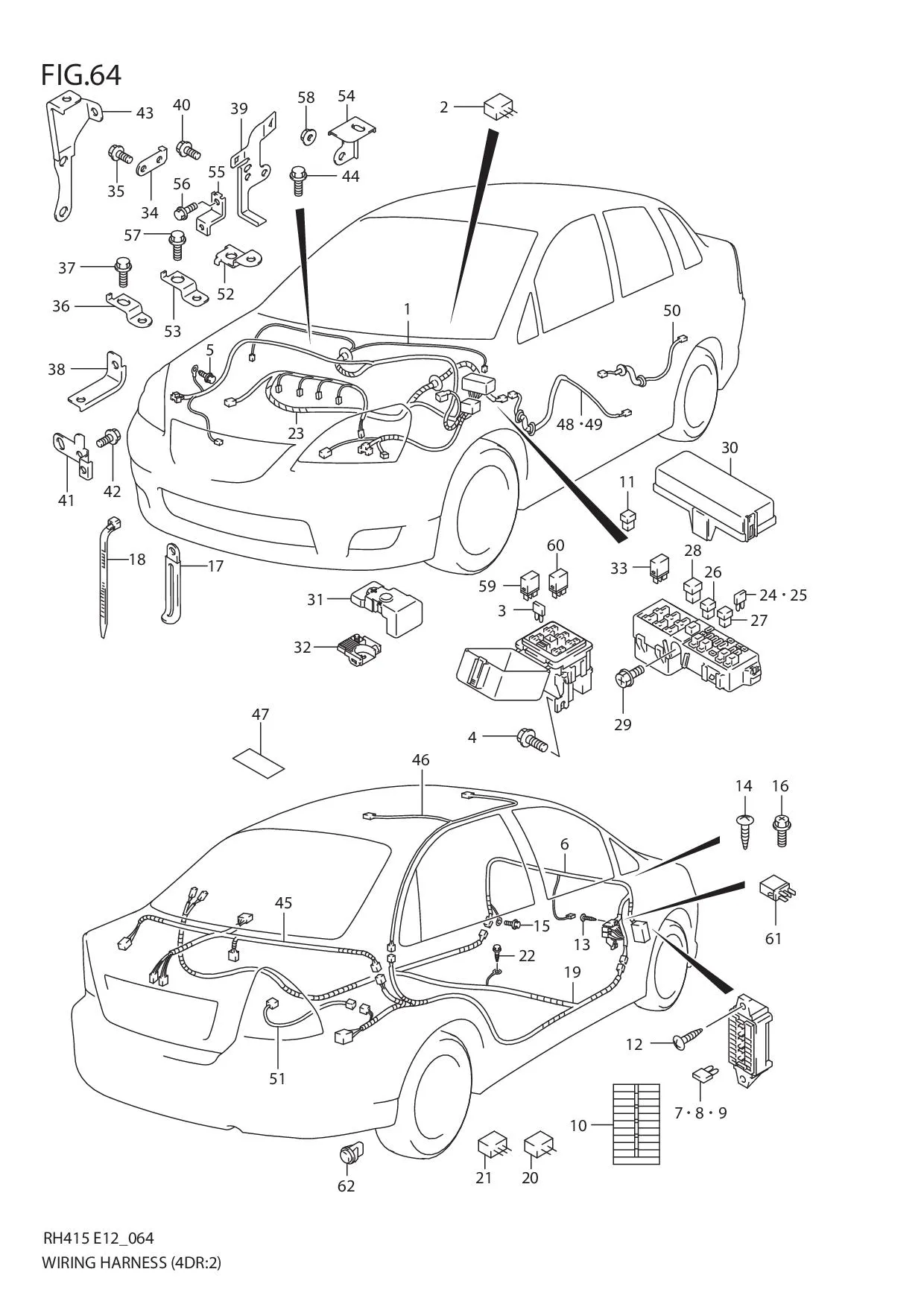

FIG.64 WIRING HARNESS (TYPE 2:4DR)

FIG.64 WIRING HARNESS (TYPE 2:4DR)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 36601B59J60N000		 HARNESS ASSY, MAIN 1 -
2 DISCONTINUE
SUB: 33459-61B10-000		 •DIODE 1 -
3 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 2 Rp12.000
4 02162-0616A-000
SUB: 02162-06163L000		 SCREW 1 Rp3.000
5 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 2 Rp14.000
6-1 DISCONTINUE
SUB: 36620B59JQ0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - MT
6-2 DISCONTINUE
SUB: 36620B59JR0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - AT
7 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 7 Rp12.000
8 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 6 Rp12.000
9 09481-20501-000 •FUSE (20A) 2 Rp14.500
10 36717-59J01-000 LABEL, FUSE BOX 1 -
11 09481M60401-000 FUSE (60A) 1 Rp66.000
12 02142-0612A-000
SUB: 02142B06123N000		 SCREW 2 Rp4.000
13 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
14 03141-0516B-000
SUB: 03142-05163-000		 SCREW 1 Rp3.500
15 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 2 Rp14.000
16 02162-0612B-000
SUB: 02162-06123-000		 SCREW 1 Rp16.000
17 DISCONTINUE
SUB: 09404B06433N000		 CLAMP (L:80) 1 -
18 DISCONTINUE
SUB: 09407-25401L000		 CLAMP (L:235) 1 -
19 DISCONTINUE
SUB: 36630B68JD0N000		 HARNESS ASSY, FLOOR 1 -
20 DISCONTINUE
SUB: 36639-74F00-000		 •DIODE 1 -
21 DISCONTINUE
SUB: 33459-61B20-000		 •DIODE 1 -
22 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 3 Rp14.000
23-1 DISCONTINUE
SUB: 36605B59JJ0N000		 HARNESS ASSY, ENGINE 1 - MT
23-2 DISCONTINUE
SUB: 36605B59J80N000		 HARNESS ASSY, ENGINE 1 - AT
24 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 4 Rp12.000
25 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 1 Rp13.000
26 09481-30401-000 •FUSE (30A) 1 Rp42.000
27 09481M60401-000 •FUSE (60A) 2 Rp66.000
28 09481-80301-000
SUB: 09481M80301-000		 •FUSE (80A) 1 Rp74.000
29 DISCONTINUE
SUB: 09138-06040-000		 •BOLT (6X10) 2 -
30 DISCONTINUE
SUB: 36738-54GC0-000		 •COVER, FUSE BOX 1 -
31 36694-50J01-000 •COVER, BATTERY TERMINAL 1 Rp98.000
32 36739-50J00-000 •FUSE, BATTERY TERMINAL 1 Rp131.500
33 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, MAIN 1 Rp47.000
34 36651-51G00-000
SUB: 36651B51G00N000		 BRACKET, ENGINE HARNESS 1 Rp5.500
35 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
36 DISCONTINUE
SUB: 36651-62G10-000		 BRACKET, ENGINE HARNESS 1 -
37 01550-0812A-000
SUB: 01550B08123N000		 BOLT 1 Rp3.500
38 DISCONTINUE
SUB: 36653-76G00-000		 BRACKET, INTAKE 1 -
39 DISCONTINUE
SUB: 36653B80G00N000		 BRACKET, O2 CONNECTOR 1 -
40 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
41 DISCONTINUE
SUB: 36654-76G00-000		 BRACKET, ENGINE HARNESS 1 -
42 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
43 DISCONTINUE
SUB: 36995-81A11-000		 BRACKET, ENGINE 1 -
44 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
45 DISCONTINUE
SUB: 36670B55G10N000		 HARNESS ASSY, TRUNK 1 -
46 DISCONTINUE
SUB: 36820-55G00-000		 WIRE, ROOM LAMP 1 -
47 36930M82000-000
SUB: 36930M82010-000		 COVER, ROOM LAMP 6 Rp6.500
48 DISCONTINUE
SUB: 36756B59JD0N000		 WIRE, FRONT DOOR RH 1 -
49 DISCONTINUE
SUB: 36757B59JB0N000		 WIRE, FRONT DOOR LH 1 -
50 DISCONTINUE
SUB: 36751B54G30N000		 WIRE, REAR DOOR 2 -
51 DISCONTINUE
SUB: 36840-54G00-000		 WIRE, FUEL PUMP 1 -
52 DISCONTINUE
SUB: 36655B54G50N000		 BRACKET, ENGINE HARNESS 1 - MT
53 DISCONTINUE
SUB: 36651-65G10-000		 BRACKET, ENGINE HARNESS 1 - AT
54 DISCONTINUE
SUB: 36655-54G60-000		 BRACKET, ENGINE HARNESS 1 - AT
55 DISCONTINUE
SUB: 36656-76G10-000		 BRACKET, ENGINE HARNESS 1 - AT
56 01550-0812A-000
SUB: 01550B08123N000		 BOLT 2 Rp3.500
57 01550-1016A-000
SUB: 01550-10163-000		 BOLT 1 Rp5.500
58 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
59 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, RADIATOR FAN 3 Rp47.000
60 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, HORN 1 Rp47.000
61 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, HEADLAMP 2 Rp47.000
62 DISCONTINUE
SUB: 38840-65D10-000		 CAP, REAR WASHER HOLE 1 -
