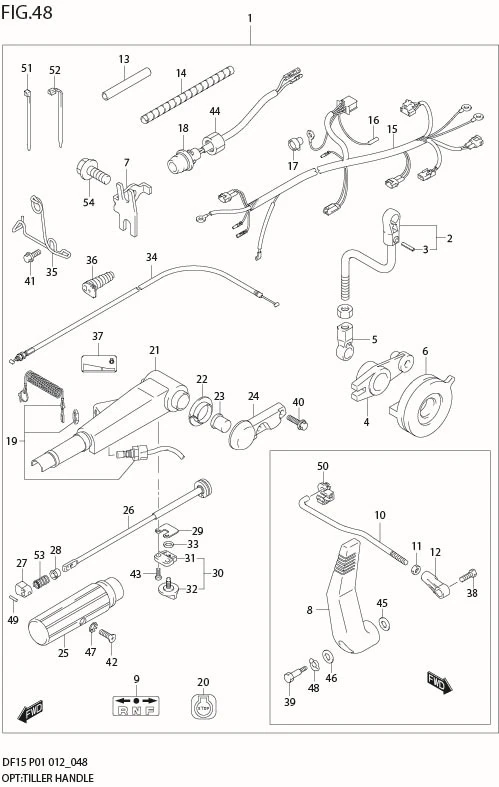

FIG 48 OPT:TILLER HANDLE (DF15R P01)

No	No. Part	Description	Qty	Price Per Pcs
1	63001-94J30-0EP	KIT, HANDLE (BLACK)	1	Rp3.445.500
2	13510-93E10-000	?ROD, THROTTLE	1	Rp138.000
3	09205-02006-000	??SPRING	1	Rp11.000
4	19121-94J00-000	?LEVER, THROTTLE CONTROL	1	Rp88.500
5	19131-95502-000	?CONNECTOR, THROTTLE ROD	1	Rp39.000
6	19148-94J00-000	?DRUM, THROTTLE	1	Rp76.000
7	19184-94J00-000	?BRACKET, THROTTLE CABLE	1	Rp52.500
8	21110-93E03-000	?LEVER, CLUTCH	1	Rp167.500
9	21131-94J00-000	?MARK, CLUTCH	1	Rp3.000
10	23115-93E10-000	?LINK, CLUTCH LEVER	1	Rp112.000
11	29141-93J00-000	?NUT, CLUTCH LINK	1	Rp18.500
12	23312-94JL0-000	?CONNECTOR, CLUTCH LINK	1	Rp34.000
13	33833-94JL0-000	?TUBE, SW LEAD	1	Rp2.000
14	33833-91J00-000	?TUBE, THROTTLE CABLE	1	Rp47.500
15	36610-94J10-000	?HARNESS ASSY, WIRING	1	Rp1.463.500
16	36615-96300-000	??TERMINAL, RESIN	1	Rp11.000
17	36618-43410-000	??CAP, OIL PRESSURE SWITCH	1	Rp20.500
18	37161-94J00-000	?SWITCH, START	1	Rp401.000
19	37830-94J10-000	?SWITCH, EMERGENCY & STOP	1	Rp432.000
20	37835-95D00-000	?LABEL, STOP	1	Rp13.000
21	63111-94J21-0EP	?HANDLE, TILLER (BLACK)	1	Rp556.000
22	63115-94J00-000	?BUSH	2	Rp13.000
23	63116-94J00-000	?RUBBER	1	Rp9.000
24	63121-94J20-0EP	?COVER, TILLER HANDLE (BLACK)	1	Rp126.000
25	63210-93E30-000	?GRIP, HANDLE	1	Rp293.000
26	63220-94J00-000	?ROD, HANDLE	1	Rp240.000
27	63223-89J00-000	?STOPPER, HANDLE ROD	1	Rp51.000
28	63225-93200-000	?BUSH, HANDLE ROD	1	Rp37.000
29	63225-94J00-000	?PLATE, HANDLE ROD ADJUSTER	1	Rp5.500
30	63240-94J20-000 SUB: 63240-94J00-000	?ADJUSTER SET, HANDLE ROD	1	Rp35.000
31	63241-986B0-000 SUB: 63241-98601-000	??SUPPORT	1	Rp25.500
32	63244-94J00-000	??KNOB	1	Rp81.000
33	09148-06008-000	?NUT	1	Rp9.000
34	63610-94J00-000	?CABLE ASSY, THROTTLE	2	Rp60.000
35	65793-94J01-000	?HOLDER, FUEL HOSE	1	Rp136.000
36	67331-94J00-000	?GROMMET, SIDE COVER	1	Rp145.000
37	69714-94J00-000	?MARK, ENGINE START	1	Rp2.000
38	DISCONTINUE SUB: 09111-06064-000	?BOLT (6X17)	1	-
39	09111-06069-000	?BOLT (6X28.8)	1	Rp90.000
40	09116-08122-000	?BOLT (8X30)	2	Rp29.000
41	09116-08137-000	?BOLT (8X22)	2	Rp49.000
42	09126-06015-000	?SCREW (6X23)	1	Rp19.000
43	09136-05041-000	?SCREW (5X20)	2	Rp12.500
44	DISCONTINUE SUB: 09159-14014-000	?NUT	1	-
45	09160-06082-000	?WASHER (6.5X13X1.0)	1	Rp10.500
46	09160-08045-000	?WASHER (8X22X1)	1	Rp20.000
47	09163-06001-000	?LOCK WASHER	1	Rp11.000
48	09164-08017-000	?WASHER	1	Rp13.000
49	09205-03038-000	?SPRING	1	Rp10.500
50	09209M09L02-000 SUB: 09209-09007-000	?LINKAGE	1	Rp4.500
51	DISCONTINUE SUB: 09407-10404-000	?CLAMP (L:100)	2	-
52	36990-25G00-000 SUB: 09407-11401-000	?CLAMP (L:95)	2	Rp13.000
53	09440-12027-000	?SPRING	1	Rp13.000
54	01550-06167-000	?BOLT	1	Rp16.500
