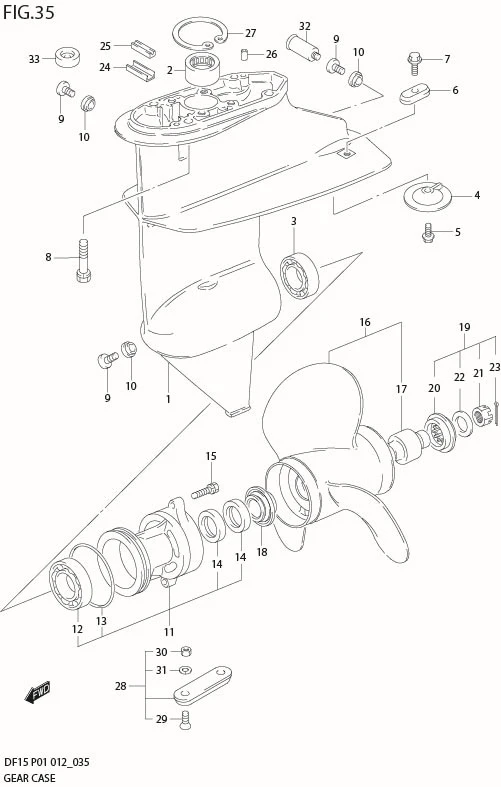

FIG 35 GEAR CASE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	55100-94J20-0EP	CASE, GEAR (BLACK)	1	Rp3.117.500
2	09263-15019-000	?BEARING (15X21X12)	2	Rp96.000
3	09262-25003-000	?BEARING (25X52X15)	1	Rp191.000
4	55321-939L0-000 SUB: 55321-93900-000	?ZINC, PROTECTION	1	Rp63.000
5	09116-06094-000	?BOLT (6X15)	1	Rp19.000
6	55321-90L00-000 SUB: 41811-98500-000	?ZINC SET, PROTECTION	1	Rp92.000
7	09116-06094-000	?BOLT (6X15)	1	Rp19.000
8	09117-08047-000	BOLT (8X30)	4	Rp44.500
9	09248-10008-000	PLUG	3	Rp42.500
10	09168-10022-000	GASKET (10X17X1.5)	3	Rp10.500
11	56120-90L02-0EP SUB: 56120-90L00-0EP	HOUSING, PROPELLER SHAFT	1	Rp1.310.000	BLACK
12	08110-60050-000	?BEARING	1	Rp146.500
13	09280-57002-000	?O RING (D:3.5,ID:65.2)	1	Rp18.000
14	09289-17L02-000 SUB: 09289-17006-000	?OIL SEAL (17X30X6)	2	Rp43.000
15	29116-93J00-000	BOLT (6X20)	2	Rp23.000
16-7	58100-90L20-019	PROPELLER, 3X9-1/4X10 (M1011)	1	-	BLACK
16-6	58100-90L50-019 SUB: 58100-90L10-019	PROPELLER, 3X9-1/4X9 (M911)	1	Rp2.096.500	BLACK
16-5	58100-90L41-019 SUB: 58100-90L00-019	PROPELLER, 3X9-1/4X8 (M821)	1	Rp2.006.500	BLACK
16-3	58100-89L60-019 SUB: 58100-93733-019	PROPELLER, 3X9-1/4X10 (M1001)	1	Rp1.876.500	BLACK
16-2	58100-89L20-019 SUB: 58100-94J00-019	PROPELLER, 3X9-1/4X9 (M901)	1	Rp2.096.500	BLACK
16-1	58100-89L00-019 SUB: 58100-93703-019	PROPELLER, 3X9-1/4X7 (M701)	1	Rp2.096.500	BLACK
16-4	DISCONTINUE SUB: 58100-93743-019	PROPELLER, 3X9-1/4X11 (M1101)	1	-	BLACK
17	58120-93701-000	?BUSH, PROPELLER	1	Rp325.500
18	57632-94J00-000 SUB: 57632-93902-000	STOPPER, PROPELLER BUSH	1	Rp316.500
19	57630-93900-000	NUT KIT, PROPELLER	1	Rp198.500	OPT
20	57633-93901-000	SPACER, PROPELLER NUT	1	Rp363.500
21	09141-12005-000	NUT	1	Rp61.000
22	09160-12066-000	WASHER (12.5X22X2.5)	1	Rp13.500
23	09204-02004-000	PIN	1	Rp12.500
24	55331-93901-000	CORE, EXHAUST SEAL	1	Rp17.000
25	55332-92D01-000 SUB: 55332-92D00-000	RUBBER, EXHAUST SEAL	1	Rp33.000
26	DISCONTINUE SUB: 09202-06023-000	PIN	2	-
27	08331-41329-000 SUB: 08331-4132A-000	CIRCLIP	1	Rp19.500
28	55300-95500-000	ZINC ASSY, PROTECTION	1	Rp187.000	OPT
29	09126-06006-000	?SCREW (6X20)	2	Rp12.500	OPT
30	29141-93J00-000	?NUT	2	Rp18.500	OPT
31	29162-93J00-000	?WASHER	2	Rp11.500	OPT
32	55181-95200-000	ATTACHMENT, FLUSH HOSE	1	Rp62.500	OPT
33	DISCONTINUE SUB: 55321-87J10-000	ANODE (MAGNESIUM)	1	-	OPT
