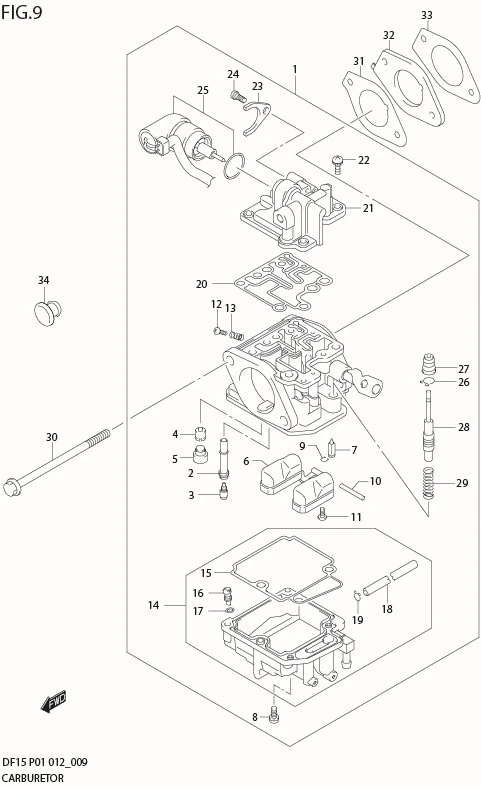

FIG 9 CARBURETOR (DF15R P01)

No	No. Part	Description	Qty	Price Per Pcs
1	13200-94J70-000	CARBURETOR ASSY	1	Rp2.671.500
2	13236-94J00-000	?NOZZLE, MAIN	1	Rp239.500
3	09491-23029-000	?JET, MAIN (115)	1	Rp124.500
4	09492-40029-000	?JET, PILOT (40)	1	Rp124.500
5	13239-94J00-000	?CAP, RUBBER	1	Rp49.500
6	13250-94J00-000	?FLOAT	1	Rp328.000
7	13370-94J00-000	?VALVE, FLOAT	1	Rp155.000
8	13247-94J00-000	?SCREW	4	Rp63.000
9	13375-26E00-000	?CLIP	1	Rp33.500
10	13254-94J00-000	?PIN, ARM	1	Rp22.000
11	13802-94J00-000	?SCREW	1	Rp23.500
12	13534-94J00-000	?SCREW, STOP	1	Rp58.000
13	13268-94J00-000	?SPRING	1	Rp30.500
14	13240-94J30-000	?CHAMBER ASSY, FLOAT	1	Rp904.000
15	13251-94J00-000	??GASKET, FLOAT CHAMBER	1	Rp109.500
16	13279-94J00-000	??SCREW, DRAIN	1	Rp55.500
17	13523-94J00-000	??O RING	1	Rp42.000
18	13684-94J00-000	??PIPE	1	Rp93.500
19	09401-05402-XC0	??CLIP	1	Rp9.000
20	13345-94J00-000	?U RING	1	Rp104.000
21	13346-94J30-000	?COVER	1	Rp651.500
22	13247-94J00-000	?SCREW	4	Rp63.000
23	13428-06F30-000	?PLATE	1	Rp31.000
24	13367-94J00-000	?SCREW	1	Rp30.500
25	DISCONTINUE SUB: 13368-94J00-000	?STARTER ASSY	1	-
26	13494-94J00-000	?CLIP	1	Rp42.500
27	13495-94J00-000	?CAP, RUBBER	1	Rp77.000
28	13493-94J00-000	?PLUNGER	1	Rp213.500
29	13441-94J00-000	?SPRING	1	Rp45.000
30	09103-06276-000	BOLT (6X100)	2	Rp21.500
31	13125-94J01-000	GASKET, CARBURETOR	1	Rp31.500
32	13124-94J00-000	INSULATOR	1	Rp134.500
33	DISCONTINUE SUB: 13127-94J00-000	GASKET, INSULATOR	1	-
34	59252-94J00-000	PLUG, STARTER KNOB	1	Rp14.500
