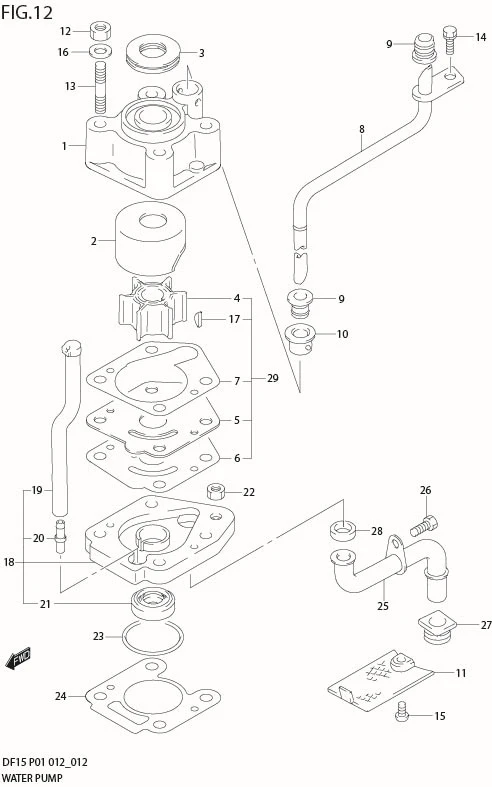

FIG 12 WATER PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17411-94J00-000	CASE, WATER PUMP	1	Rp276.500
2	17413-94J00-000	SLEEVE, WATER PUMP CASE	1	Rp58.500
3	17417-93911-000 SUB: 17417-93910-000	GROMMET, PUMP CASE	1	Rp28.000
4	17461-939M0-000 SUB: 17461-93903-000	IMPELLER, WATER PUMP	1	Rp217.500
5	17471-93902-000	PANEL, PUMP CASE UNDER	1	Rp45.000
6	17472-93911-000	GASKET, PUMP CASE PANEL	1	Rp34.000
7	17473-94J00-000	GASKET, WATER PUMP CASE	1	Rp23.000
8-1	17560-94J11-000	TUBE, WATER (S)	1	Rp133.500	W/TRANSOM(S)
8-2	17560-94J01-000	TUBE, WATER (L)	1	Rp164.000	W/TRANSOM(L)
9	17563-94J00-000	GROMMET, WATER TUBE	2	Rp12.500
10	17564-93901-000 SUB: 17564-93900-000	BUSH, WATER PUMP CASE	1	Rp28.500
11	17631-92D01-000	FILTER, WATER	1	Rp42.000
12	29141-93J00-000	NUT, WATER PUMP CASE	4	Rp18.500
13	09108-06101-000	STUD BOLT	4	Rp38.500
14	09116-06094-000	BOLT (6X15)	1	Rp19.000
15	09125-06063-000	SCREW (6X10)	1	Rp15.000
16	09160-06082-000	WASHER (6.5X13X1.0)	4	Rp10.500
17	09420-03009-000 SUB: 09420-03005-000	KEY	1	Rp47.500
18	17450-94J11-000	HOUSING, WATER INLET	1	Rp214.500
19	17453-93901-000	?DRAIN, WATER INLET	1	Rp35.000
20	17454-94J00-000	?UNION, WATER INLET DRAIN	1	Rp21.000
21	09289-12003-000	?OIL SEAL (12X26X10)	1	Rp61.000
22	29141-93J00-000	NUT, WATER INLET	1	Rp18.500
23	59291-94J10-000	O RING, WATER INLET HSG	1	Rp4.500
24	17452-94J00-000	GASKET, WATER INLET HSG	1	Rp43.000
25	17520-94J01-000 SUB: 17520-93902-000	TUBE, WATER INLET	1	Rp142.000
26	09100-06106-000	BOLT (6X9)	1	Rp13.000
27	59317-94J00-000	GROMMET	1	Rp56.000
28	59317-94J10-000	GROMMET	1	Rp39.000
