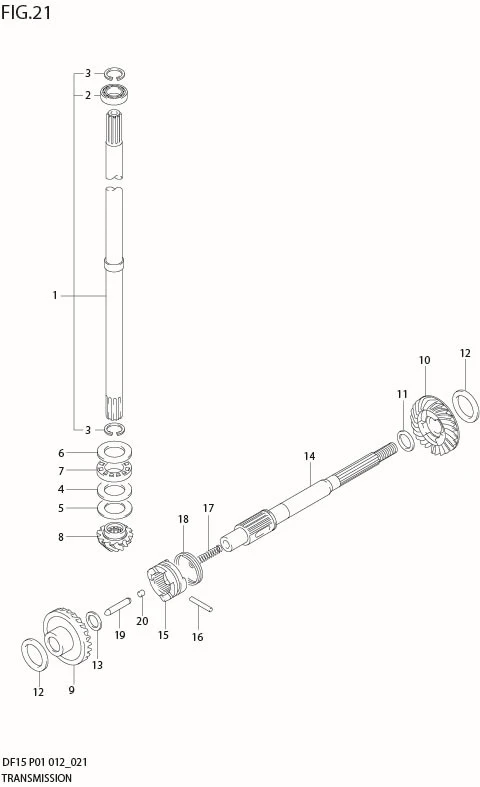

FIG 21 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	57100-90L00-000 SUB: 57100-93902-000	SHAFT ASSY, DRIVE (L)	1	Rp1.834.500	W/TRANSOM(L)
1-Dec	09160-25040-000	WASHER (25X34X1)	2	Rp19.500
1-1	57100-90L10-000 SUB: 57100-93912-000	SHAFT ASSY, DRIVE (S)	1	Rp1.047.500	W/TRANSOM(S)
1-Nov	09160-17024-000	WASHER (17X23X1.1)	1	Rp17.000
2	08110-60020-000 SUB: 08110B60020N000	?BEARING	1	Rp43.000
2-Dec	DISCONTINUE SUB: 09160-25041-000	WASHER (25X34X1.1)	2	-
2-Nov	DISCONTINUE SUB: 09160-17039-000	WASHER (17X23X1.2)	1	-
3	09380-15001-000	?SNAP RING	2	Rp13.000
3-Dec	DISCONTINUE SUB: 09160-25042-000	WASHER (25X34X1.2)	2	-
3-Nov	DISCONTINUE SUB: 09160-17025-000	WASHER (17X23X1.3)	1	-
4-Nov	DISCONTINUE SUB: 09160-17040-000	WASHER (17X23X1.4)	1	-
4-Dec	DISCONTINUE SUB: 09181-25181-000	SHIM (25X34X1.3)	2	-
4	09160-20027-000	WASHER (20X35X2.75)	1	Rp51.500
5-Dec	09181-25160-000	SHIM (25X34X0.7)	2	Rp19.500
5-7	09181-20248-000	SHIM (20X34X0.9)	1	Rp18.000
5-6	09181-20246-000	SHIM (20X34X0.8)	1	Rp18.000
5-5	09181-20244-000	SHIM (20X34X0.7)	1	Rp21.500
5-4	09160-20044-000	SHIM (20X34X1.3)	1	Rp23.000
5-Nov	DISCONTINUE SUB: 09160-17026-000	WASHER (17X23X1.5)	1	-
5-1	09181-20251-000	SHIM (20X34X1)	1	Rp20.000
5-2	09160-20042-000	SHIM (20X34X1.1)	1	Rp22.500
5-3	DISCONTINUE SUB: 09160-20043-000	SHIM (20X34X1.2)	1	-
6	09160-21009-000	WASHER (21X35X2.75)	1	Rp57.000
6-Dec	09181-25162-000	SHIM (25X34X0.8)	2	Rp17.000
6-Nov	09160-17041-000	WASHER (17X23X1.6)	1	Rp18.000
7	09263-20024-000	BEARING (20X35X4.5)	1	Rp328.000
7-Dec	09181-25164-000	SHIM (25X34X0.9)	2	Rp19.500
7-Nov	DISCONTINUE SUB: 09160-17027-000	WASHER (17X23X1.7)	1	-
8-Nov	09160-17042-000	WASHER (17X23X1.8)	1	Rp18.000
8	57311-94JL0-000 SUB: 57311-94J00-000	PINION	1	Rp479.000
9-Nov	DISCONTINUE SUB: 09160-17028-000	WASHER (17X23X1.9)	1	-
9	57510-94JL0-000 SUB: 57510-94J00-000	GEAR, FORWARD	1	Rp933.500
10	57521-94J00-000	GEAR, REVERSE	1	Rp620.500
13	09181-15156-000	SHIM (15X22X1.5)	1	Rp18.500
14	57610-90L00-000 SUB: 57610-93901-000	SHAFT, PROPELLER	1	Rp1.232.000
15	57621-90L11-000 SUB: 57621-93902-000	SHIFTER, CLUTCH DOG	1	Rp416.500
16	09202-04025-000 SUB: 09202-04015-000	PIN	1	Rp73.500
17	09440-05027-000	SPRING	1	Rp28.000
18	09440-32008-000	SPRING	1	Rp27.000
19	57631-93901-000	ROD, PUSH	1	Rp67.500
20	57632-97L00-000 SUB: 57632-98500-000	PIN	1	Rp46.000
