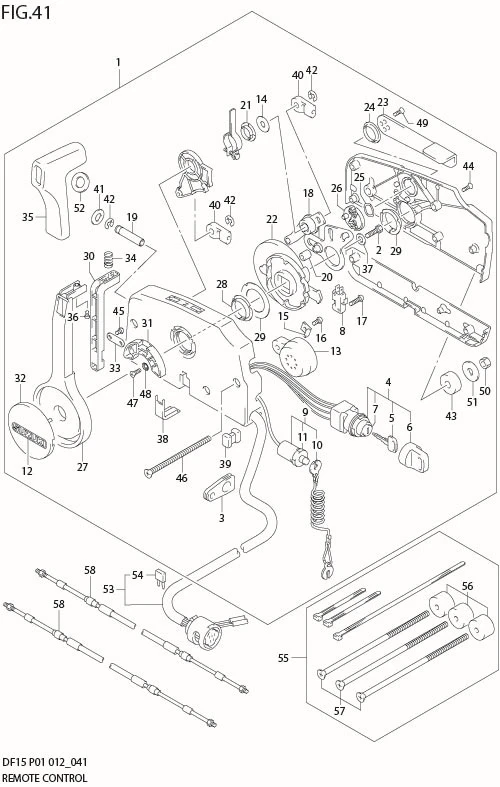

FIG 41 REMOTE CONTROL (DF15R P01)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-94J13-000	REMOTE CONTROL ASSY	1	-
2	09100-08232-000	?BOLT (8X30)	1	Rp29.000
3	36628-92E00-000	?GROMMET, WIRE HARNESS	1	Rp42.000
4	37110-94J01-000	?SWITCH ASSY, IGNITION	1	Rp618.000
5-2	DISCONTINUE SUB: 37141-99E10-000	??KEY (932)	2	-
5-12	DISCONTINUE SUB: 37141-99EB0-000	??KEY (942)	2	-
5-11	DISCONTINUE SUB: 37141-99EA0-000	??KEY (941)	2	-
5-10	DISCONTINUE SUB: 37141-99E90-000	??KEY (940)	2	-
5-9	DISCONTINUE SUB: 37141-99E80-000	??KEY (939)	2	-
5-8	DISCONTINUE SUB: 37141-99E70-000	??KEY (938)	2	-
5-7	DISCONTINUE SUB: 37141-99E60-000	??KEY (937)	2	-
5-6	DISCONTINUE SUB: 37141-99E50-000	??KEY (936)	2	-
5-5	DISCONTINUE SUB: 37141-99E40-000	??KEY (935)	2	-
5-4	DISCONTINUE SUB: 37141-99E30-000	??KEY (934)	2	-
5-3	DISCONTINUE SUB: 37141-99E20-000	??KEY (933)	2	-
5-1	DISCONTINUE SUB: 37141-99E00-000	??KEY (931)	2	-
6	37143-99E00-000	??CAP, KEY	2	Rp26.000
7	37149-93J00-000	??CAP, CYLINDER BODY	1	Rp87.500
8	37721-93J91-000 SUB: 37721-93J90-000	?SWITCH, NEUTRAL	1	Rp398.000
9	37820-93J05-000 SUB: 37820-93J03-000	?SWITCH ASSY, EMERGENCY	1	Rp520.000
10	37823-92E02-000 SUB: 37823-92E01-000	??PLATE	1	Rp221.500
11	37826-92E00-000	??NUT	1	Rp65.500
12	68165-16B01-13L SUB: 68165-16B00-13L	?EMBLEM, "SUZUKI" (SILVER)	1	Rp47.500
13	38500-93J00-000	?BUZZER	1	Rp509.500
14	67212-95600-000	?WASHER	1	Rp25.500
15	67213-92E00-000	?BRACKET, BUZZER	1	Rp35.000
16	DISCONTINUE SUB: 09125-05042-000	?SCREW (5X10)	1	-
17	67296-92E10-000	?SCREW, NEUTRAL SW	2	Rp17.000
18	67220-95630-000	?PLATE ASSY	1	Rp654.500
19	67223-99E10-000	?KNOB, BRAKE ADJ	1	Rp59.000
20	67229-95600-000	?ROLLER	1	Rp54.500
21	67232-95600-000	?BUSH	1	Rp44.000
22	DISCONTINUE SUB: 67238-87D00-000	?GEAR, DRIVE	1	-
23	67241-99E10-000	?LEVER, FREE THROTTLE	1	Rp177.000
24	67243-95600-000	?BUSH	1	Rp30.500
25	67244-95600-000	?WASHER, WAVE	1	Rp27.500
26	67245-95600-000	?DRUM, FREE THROTTLE	1	Rp194.000
27	67251-99E10-000	?LEVER, HANDLE	1	Rp617.000
28	67252-95600-000	?BUSH	2	Rp37.500
29	67253-95600-000	?WASHER	1	Rp37.500
30	67255-99E00-000	?ARM, LOCK	1	Rp143.000
31	67256-95600-000	?HOLDER, NEUT LOCK	1	Rp80.500
32	67257-99E00-000	?CAP, LEVER	1	Rp77.000
33	67258-99E00-000	?BRACKET, LOCK ARM	1	Rp31.000
34	67259-87D00-000	?SPRING, NEUTRAL ARM	1	Rp45.500
35	67261-99E00-000	?GRIP	1	Rp354.000
36	67296-94310-000	?SCREW	1	Rp14.500
37	67264-95600-000	?WASHER	1	Rp22.000
38	67267-95610-000	?COVER, WIRE	1	Rp44.500
39	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
40	67275-95600-000	?END, CABLE	2	Rp70.500
41	67288-92E00-000	?WASHER, BRAKE ADJ KNOB	1	Rp24.500
42	67292-94300-000	?E RING	3	Rp11.000
43	67294-95600-000	?SPACER	3	Rp35.000
44	67296-90J00-000	?SCREW	5	Rp17.000
45	67296-94300-000	?SCREW	2	Rp10.500
46	67296-95600-000	?SCREW	3	Rp47.000
47	67296-95610-000	?SCREW	2	Rp23.500
48	67297-95600-000	?WASHER	2	Rp23.500
49	DISCONTINUE SUB: 09126-05003-000	?SCREW (5X12)	2	-
50	09140-06020-000	?NUT	3	Rp13.500
51	09160-06104-000	?WASHER (6.5X24X2)	3	Rp18.000
52	37859-90J00-000	?SPACER	1	Rp26.500
53	36620-94J01-000	WIRE ASSY, REMOTE CONTROL	1	Rp1.610.500
54	09481-10501-000	?FUSE (10A)	1	Rp12.000
55	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT, TWIN REMOCON KIT	1	Rp351.000	OPT
56	67294-95600-000	?SPACER	3	Rp35.000	OPT
57	67296-95620-000	?SCREW (L:165)	3	Rp68.000	OPT
58-9	67320-93J80-000	CABLE, REMOCON 24F (7.3M)	2	Rp922.000	OPT
58-8	DISCONTINUE SUB: 67320-93J70-000	CABLE, REMOCON 22F (6.7M)	2	-	OPT
58-7	67320-93J60-000	CABLE, REMOCON 20F (6.1M)	2	Rp820.000	OPT
58-6	67320-93J50-000	CABLE, REMOCON 18F (5.5M)	2	Rp767.500	OPT
58-5	67320-93J40-000	CABLE, REMOCON 16F (4.9M)	2	Rp715.000	OPT
58-4	67320-93J30-000	CABLE, REMOCON 14F (4.3M)	2	Rp662.500	OPT
58-3	67320-93J20-000	CABLE, REMOCON 12F (3.7M)	2	Rp613.500	OPT
58-2	67320-93J10-000	CABLE, REMOCON 10F (3.1M)	2	Rp564.500	OPT
58-1	DISCONTINUE SUB: 67320-93J00-000	CABLE, REMOCON 8F (2.4M)	2	-	OPT
