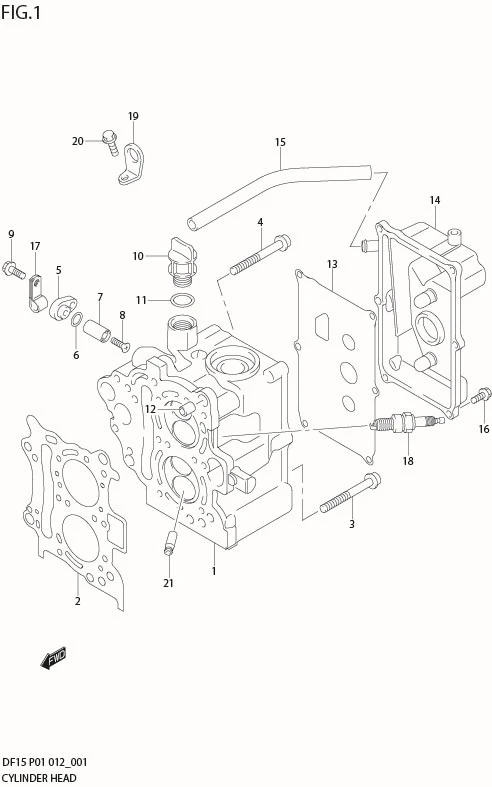

FIG 1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11110-94JL0-000	HEAD, CYLINDER	1	Rp3.407.000
2	11141-94JL0-000	GASKET, CYLINDER HEAD	1	Rp343.500
3	DISCONTINUE SUB: 09116-08110-000	BOLT (8X65)	6	-
4	09116-08129-000	BOLT (8X65)	2	Rp39.000
5	11261-99E00-000	COVER, PROTECTION ANODE	1	Rp157.500
6	09280-10013-000	O RING (D:2.4,ID:9.6)	1	Rp43.500
7	55321-99E00-000	ANODE, PROTECTION	1	Rp68.500
8	DISCONTINUE SUB: 09126-05010-000	SCREW (5X27.2)	1	-
9	01550-06207-000 SUB: 01550B06207N000	BOLT	1	Rp3.000
10	11382-93E00-000	CAP, OIL FILLER	1	Rp48.000
11	09280-17003-000 SUB: 09280-17003L000	O RING (D:3.1,ID:16.8)	1	Rp2.000
12	04211-11129-000 SUB: 04211B11129N000	PIN	2	Rp2.000
13	11162-94J10-000	GASKET, CYLINDER HEAD COVER	1	Rp102.000
14	11170-94J00-000	COVER, CYLINDER HEAD	1	Rp302.000
15	11196-94J00-320	HOSE, BREATHER	1	Rp11.000	L:320->205
16	01550-06207-000 SUB: 01550B06207N000	BOLT	6	Rp3.000
17	09403-14204-000	CLAMP	1	Rp14.500
18	09482-00L04-000	SPARK PLUG (CPR6EA-9)	1	Rp85.000
19	11291-91B50-000	HOOK, ENGINE	1	Rp69.500	OPT
20	01550-08207-000	BOLT	1	Rp19.000	OPT
21	11115-93E00-001	GUIDE, VALVE (OS:0.30)	4	Rp194.500	OPT
