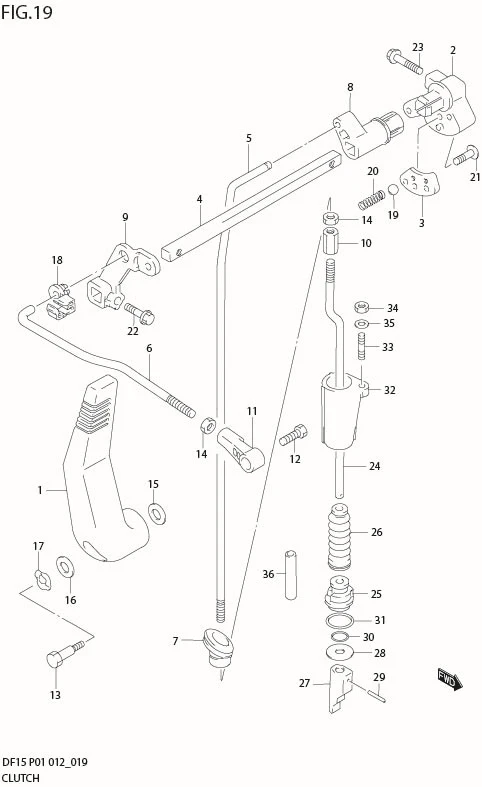

FIG 19 CLUTCH (DF15 P01)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21110-93E03-000	LEVER, CLUTCH	1	Rp167.500
2	21120-93E10-000	LEVER, CLUTCH NOTCH	1	Rp88.000
3	21122-94J01-000	PLATE, CLUTCH NOTCH	1	Rp283.500
4	21211-93EL0-000	SHAFT, CLUTCH LEVER	1	Rp47.500
5	23111-93E00-000	ROD, CLUTCH	1	Rp149.500
6	23115-93E10-000	LINK, CLUTCH LEVER	1	Rp112.000
7	DISCONTINUE SUB: 23131-93900-000	BOOT, CLUTCH ROD	1	-
8	23211-93E01-000	ARM, CLUTCH ROD	1	Rp77.000
9	DISCONTINUE SUB: 23210-93E00-000	LEVER, CLUTCH CONTROL	1	-
10	23311-95DL0-000	TURNBUCKLE, CLUTCH ROD	1	Rp72.500
11	23312-94JL0-000	CONNECTOR, CLUTCH LINK	1	Rp34.000
12	DISCONTINUE SUB: 09111-06064-000	BOLT (6X17)	1	-
13	09111-06069-000	BOLT (6X28.8)	1	Rp90.000
14	29141-93J00-000	NUT	2	Rp18.500
15	09160-06082-000	WASHER (6.5X13X1.0)	1	Rp10.500
16	09160-08045-000	WASHER (8X22X1)	1	Rp20.000
17	09164-08017-000	WASHER	1	Rp13.000
18	09209M09L02-000 SUB: 09209-09007-000	LINKAGE	1	Rp4.500
19	09260-12003-000	BALL	1	Rp30.500
20	09440-09041-000	SPRING	1	Rp23.000
21	02142-0620A-000 SUB: 02142-06207-000	SCREW	2	Rp5.500
22	01550-06207-000 SUB: 01550B06207N000	BOLT	1	Rp3.000
23	01550-06257-000 SUB: 01550B06257N000	BOLT	1	Rp3.500
24-1	25111-93911-000	ROD, SHIFT (S)	1	Rp180.000	W/TRANSOM(S)
24-2	25111-93901-000	ROD, SHIFT (L)	1	Rp202.000	W/TRANSOM(L)
25	25211-93901-000	GUIDE, SHIFT ROD	1	Rp50.000
26	25222-93902-000 SUB: 25222-93901-000	BOOT, SHIFT ROD	1	Rp67.500
27	25311-93E11-000	CAM, SHIFT	1	Rp242.500
28	09160-05047-000	WASHER (5.5X24X1.6)	1	Rp12.500
29	09205-02004-000	SPRING	2	Rp10.500
30	09280-05005-000	O RING (D:3.5,ID:4.9)	1	Rp13.500
31	59291-94J00-000	O RING (D:3.6 ID:18.6)	1	Rp31.000
32	25215-94J00-000	STOPPER, SHIFT ROD GUIDE	1	Rp54.000
33	DISCONTINUE SUB: 09108-05007-000	STUD BOLT	1	-
34	09140-05005-000	NUT	1	Rp20.000
35	09160-05029-000	WASHER (5.5X12X0.8)	1	Rp14.000
36	DISCONTINUE SUB: 09351-50803-00A	HOSE (5X8X1000)	1	-	L:1000->30
