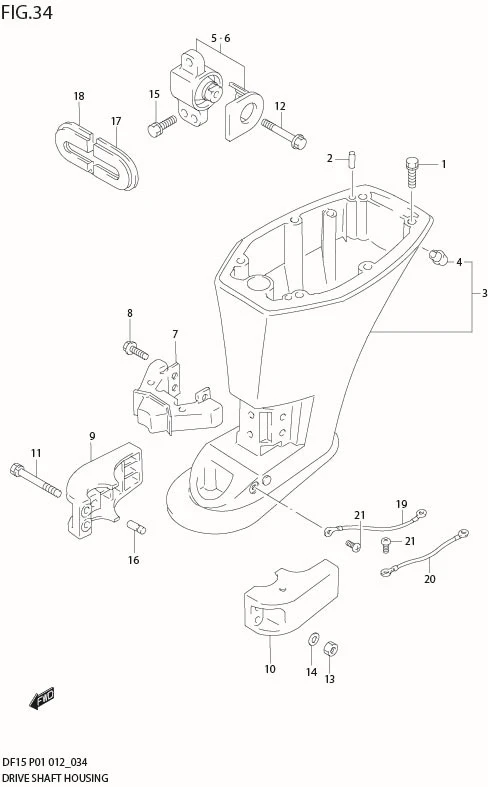

FIG 34 DRIVE SHAFT HOUSING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	09116-08122-000	BOLT (8X30)	6	Rp29.000
2	DISCONTINUE SUB: 09202-06023-000	PIN	2	-
3-1	52110-93E70-0EP	HOUSING, DRIVE SHAFT (S) (BLACK)	1	Rp5.042.000	W/TRANSOM(S)
3-2	52110-94J20-0EP	HOUSING, DRIVE SHAFT (L) (BLACK)	1	Rp3.227.500	W/TRANSOM(L)
4	43112-99E00-000	?PIPE, EXHAUST	1	Rp44.000
5	54180-93E01-000	MOUNT, UPPER STBD	1	Rp654.500
6	54190-93E01-000	MOUNT, UPPER PORT	1	Rp654.500
7	54160-93E02-000	MOUNT, LOWER	1	Rp604.000
8	09116-08137-000	BOLT (8X22)	4	Rp49.000
9	54211-94J20-0EP	COVER, LOWER MOUNT STBD (BLACK)	1	Rp203.500
10	54221-94J20-0EP	COVER, LOWER MOUNT PORT (BLACK)	1	Rp203.500
11	09116-08138-000	BOLT (8X40)	2	Rp47.500
12	09116-08138-000	BOLT (8X40)	2	Rp47.500
13	29141-93J10-000	NUT	2	Rp28.000
14	09160-08082-000	WASHER (8.5X16X1.2)	2	Rp12.000
15	09116-08122-000	BOLT (8X30)	4	Rp29.000
16	54213-93901-000	PIN	2	Rp86.000
17	54144-94J00-000	SEAL, UPPER MOUNT PORT	1	Rp26.500
18	54145-94J00-000	SEAL, UPPER MOUNT STBD	1	Rp26.500
19	36894-95201-000	LEAD, MOUNT TO HSG (L:165)	1	Rp110.500
20	36895-87DL0-000	LEAD, SWIVEL TO MOUNT	1	-
21	09125-05050-000 SUB: 29125-93J10-000	SCREW, LEAD (5X8)	2	Rp14.000
