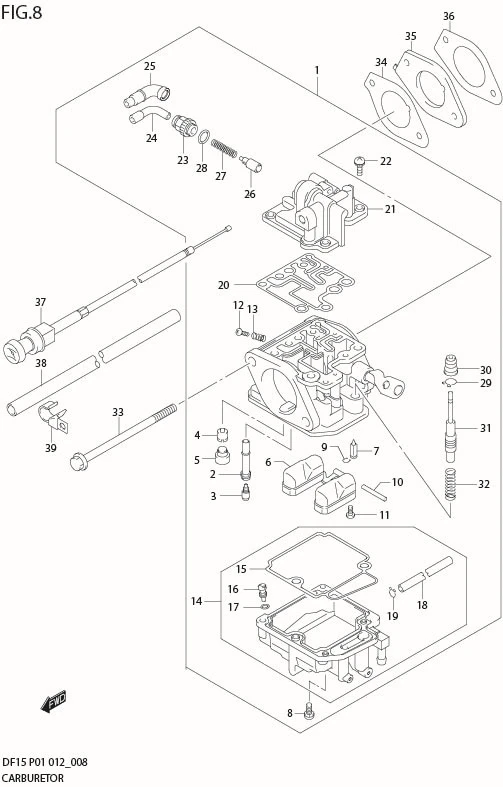

FIG 8 CARBURETOR (DF15 P01)

No	No. Part	Description	Qty	Price Per Pcs
1	13200-94J60-000	CARBURETOR ASSY	1	Rp4.527.500
2	13236-94J00-000	?NOZZLE, MAIN	1	Rp239.500
3	09491-23029-000	?JET, MAIN (115)	1	Rp124.500
4	09492-40029-000	?JET, PILOT (40)	1	Rp124.500
5	13239-94J00-000	?CAP, RUBBER	1	Rp49.500
6	13250-94J00-000	?FLOAT	1	Rp328.000
7	13370-94J00-000	?VALVE, FLOAT	1	Rp155.000
8	13247-94J00-000	?SCREW	4	Rp63.000
9	13375-26E00-000	?CLIP	1	Rp33.500
10	13254-94J00-000	?PIN, ARM	1	Rp22.000
11	13802-94J00-000	?SCREW	1	Rp23.500
12	13534-94J00-000	?SCREW, STOP	1	Rp58.000
13	13268-94J00-000	?SPRING	1	Rp30.500
14	13240-94J20-000	?CHAMBER ASSY, FLOAT	1	Rp904.000
15	13251-94J00-000	??GASKET, FLOAT CHAMBER	1	Rp109.500
16	13279-94J00-000	??SCREW, DRAIN	1	Rp55.500
17	13523-94J00-000	??O RING	1	Rp42.000
18	13684-94J00-000	??PIPE	1	Rp93.500
19	09401-05402-XC0	??CLIP	1	Rp9.000
20	13345-94J00-000	?U RING	1	Rp104.000
21	13346-94J20-000	?COVER	1	Rp482.500
22	13247-94J00-000	?SCREW	4	Rp63.000
23	13361-94J00-000	?HOLDER, CABLE	1	Rp135.500
24	DISCONTINUE SUB: 13362-94J00-000	?GUIDE, CABLE	1	-
25	DISCONTINUE SUB: 13363-94J00-000	?CAP, CABLE SEALING	1	-
26	DISCONTINUE SUB: 13364-94J00-000	?VALVE, STARTER	1	-
27	DISCONTINUE SUB: 13365-94J00-000	?SPRING	1	-
28	13295-14G00-000	?O RING	1	Rp19.500
29	13494-94J00-000	?CLIP	1	Rp42.500
30	13495-94J00-000	?CAP, RUBBER	1	Rp77.000
31	13493-94J00-000	?PLUNGER	1	Rp213.500
32	13441-94J00-000	?SPRING	1	Rp45.000
33	09103-06276-000	BOLT (6X100)	2	Rp21.500
34	13125-94J01-000	GASKET, CARBURETOR	1	Rp31.500
35	13124-94J00-000	INSULATOR	1	Rp134.500
36	DISCONTINUE SUB: 13127-94J00-000	GASKET, INSULATOR	1	-
37	13640-94J00-000	KNOB ASSY, STARTER	1	Rp109.500
38	18498-90J00-000	PROTECTOR, STARTER CABLE	1	Rp22.000
39	09403-12318-000	CLAMP	1	Rp13.500
