  5. FIG 46 OPT:ELECTRICAL (MANUAL STARTER) (DF15 P01)

DF15 P01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 CRANKSHAFTFIG 4 TIMING BELTFIG 5 CAMSHAFT (DF15 P01)FIG 6 CAMSHAFT (DF15R P01)FIG 7 INLET MANIFOLDFIG 8 CARBURETOR (DF15 P01)FIG 9 CARBURETOR (DF15R P01)FIG 10 FUEL PUMP (DF15 P01)FIG 11 FUEL PUMP (DF15R P01)FIG 12 WATER PUMPFIG 13 THERMOSTATFIG 14 RECOIL STARTERFIG 15 THROTTLE CONTROL (DF15 P01)FIG 16 THROTTLE CONTROL (DF15R P01)FIG 17 OIL PUMPFIG 18 OIL PANFIG 19 CLUTCH (DF15 P01)FIG 20 CLUTCH (DF15R P01)FIG 21 TRANSMISSIONFIG 22 STARTING MOTOR (ELECTRIC STARTER)FIG 23 MAGNETO (DF15 P01)FIG 24 MAGNETO (DF15R P01)FIG 25 IGNITION COILFIG 26 RECTIFIER (DF15 P01)FIG 27 RECTIFIER (DF15R P01)FIG 28 ELECTRICAL (DF15 P01)FIG 29 ELECTRICAL (DF15R P01)FIG 30 CLAMP BRACKET (DF15 P01)FIG 31 CLAMP BRACKET (DF15R P01)FIG 32 SWIVEL BRACKET (DF15 P01)FIG 33 SWIVEL BRACKET (DF15R P01)FIG 34 DRIVE SHAFT HOUSINGFIG 35 GEAR CASEFIG 36 SIDE COVER (DF15 P01)FIG 37 SIDE COVER (DF15R P01)FIG 38 ENGINE COVERFIG 39 FUEL TANK (RESIN)FIG 40 TILLER HANDLE (DF15 P01)FIG 41 REMOTE CONTROL (DF15R P01)FIG 42 REMOCON CABLE HOLDER (DF15R P01)FIG 43 DRAG LINK (DF15R P01)FIG 44 OPT:METER (DF15R P01)FIG 45 OPT:ELECTRICAL (ELECTRIC STARTER)FIG 46 OPT:ELECTRICAL (MANUAL STARTER) (DF15 P01)FIG 47 OPT:STARTING MOTOR (MANUAL STARTER) (DF15 P01)FIG 48 OPT:TILLER HANDLE (DF15R P01)FIG 49 OPT:FUEL TANK (RESIN 25L) (DF15 P01)FIG 50 OPT:REMOTE CONTROL (DF15 P01)FIG 51 OPT:REMOTE CONTROL PARTS (DF15 P01)FIG 52 OPT:REMOTE CONTROL ASSY SINGLE (1)FIG 53 OPT:REMOTE CONTROL ASSY SINGLE (2)FIG 54 OPT:DRAG LINK (DF15 P01)

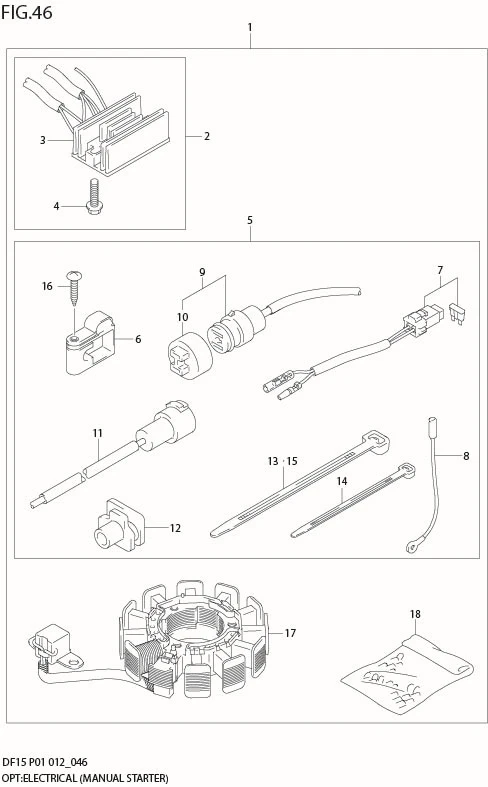

FIG 46 OPT:ELECTRICAL (MANUAL STARTER) (DF15 P01)

FIG 46 OPT:ELECTRICAL (MANUAL STARTER) (DF15 P01)
No No. Part Description Qty Price Per Pcs Remarks
1 32000-94J01-000 KIT, BATTERY CHARGING 1 Rp1.321.000
2 32801-94J01-000 ?RECTIFIER/REGULATOR SET 1 Rp1.450.000
3 32800-94J11-000 ??RECTIFIER/REGULATOR ASSY 1 Rp1.470.000
4 01550-06257-000
SUB: 01550B06257N000		 ??BOLT 2 Rp3.500
5 39600-94J01-000 ?RECEPTACLE SET 1 Rp685.500
6 33816-94J01-000 ??CLAMP 1 Rp40.500
7 36740-94J00-000 ??CASE ASSY, FUSE 1 Rp319.000
8 DISCONTINUE
SUB: 37801-98300-000		 ??LEAD RECEPTACLE GROUND 1 -
9 39601-95D01-000
SUB: 39601-95D00-000		 ??RECEPTACLE ASSY, LIGHTING 1 Rp380.500
10 36634-93910-000 ???CAP 1 Rp27.500
11 39602-93900-000 ??PLUG, RECEPTACLE 1 Rp391.500
12 39603-94400-000 ??GROMMET, RECEPTACLE 1 Rp54.500
13 DISCONTINUE
SUB: 09407-10404-000		 ??CLAMP (L:100) 1 - LEAD
14 36990-25G00-000
SUB: 09407-14403L000		 ??CLAMP (L:125) 2 Rp13.000 HARNESS
15 09407-19401-000
SUB: 09407-25402-000		 ??CLAMP (L:248) 1 Rp31.500 GROMMET
16 DISCONTINUE
SUB: 03241-0625A-000		 ??SCREW 1 -
17 32120-94J10-000 COIL, STATOR & PULSER 1 Rp2.177.000
18 36990-87D00-000 TERMINAL & SLEEVE SET 1 Rp126.500
