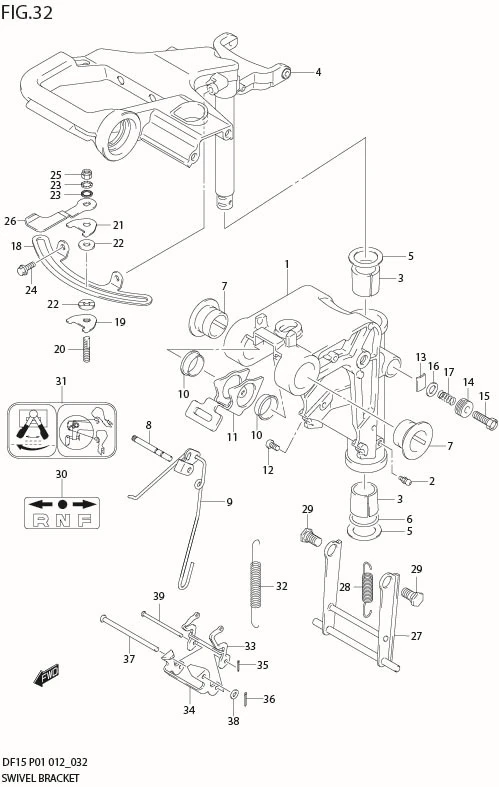

FIG 32 SWIVEL BRACKET (DF15 P01)

No	No. Part	Description	Qty	Price Per Pcs
1	43111-94J30-0EP	BRACKET, SWIVEL (BLACK)	1	-
2	22511-99011-000	NIPPLE	3	Rp39.500
3	43711-99J00-000	BUSH, STEERING	2	Rp95.000
4	43750-94J20-0EP	BRACKET, STEERING (BLACK)	1	Rp945.500
5	09160-27013-000 SUB: 09160-27009-000	WASHER (27.5X47X2)	2	Rp28.500
6	09280-27004-000	O RING (D:3.1,ID:26.2)	1	Rp12.500
7	43211-87JL0-000	BUSH, SWIVEL SHAFT	2	Rp213.000
8	41225-94502-000	PIN, RELEASE ARM	1	Rp44.000
9	45250-94J00-000	LINK, RELEASE	1	Rp43.500
10	59315-94J00-000 SUB: 09306-22006-000	BUSH	2	Rp21.500
11	45261-94J00-000	LEVER, RELEASE	1	Rp80.500
12	09125-05050-000 SUB: 29125-93J10-000	SCREW, LEAD	1	Rp14.000
13	43411-939L0-000	PLATE, STEERING ADJUSTER	1	Rp22.000
14	43412-93901-000 SUB: 43412-93900-000	COVER, STEERING ADJUST	1	Rp30.000
15	09100-08232-000	BOLT (8X30)	1	Rp29.000
16	09160-08082-000	WASHER (8.5X16X1.2)	1	Rp12.000
17	29440-93J00-000	SPRING	1	Rp22.500
18	43415-94J00-000	PLATE, STEERING ADJUSTER	1	Rp93.500
19	43420-94J20-000	PLATE	1	Rp19.500
20	43512-94JL0-000	SHAFT, STEERING ADJUSTER	1	Rp38.000
21	43514-94J00-000	PLATE, FRICTION	1	Rp7.500
22	43514-95J00-000	WASHER, FRICTION PLATE	2	Rp39.000
23	43516-89J00-000	WASHER, STEERING ADJUSTER	2	Rp110.500
24	29116-93J00-000	BOLT, ADJUSTER PLATE	2	Rp23.000
25	DISCONTINUE SUB: 09159-08059-000	NUT	1	-
26	43411-94J00-000	ADJUSTER, STEERING	1	Rp38.500
27	45710-99JL1-000 SUB: 45710-99JL0-000	ARM, SHALLOW DRIVE	1	Rp223.500
28	45722-94J11-000	SPRING, ARM	1	Rp144.500
29	09111-10067-000 SUB: 09111-10032-000	BOLT (10X20.4)	2	Rp52.500
30	21131-94J00-000	MARK, CLUTCH SHIFT	1	Rp3.000
31	45269-94J00-000	MARK, REVERSE LOCK	1	Rp9.500
32	45212-99J10-000	SPRING, REVERSE LOCK ARM	2	Rp60.500
33	45231-99J10-000	ARM, REVERSE LOCK	1	Rp115.500
34	45241-99JL1-000	LINK, REVERSE LOCK ARM	1	Rp126.000
35	09204-01002-000	PIN	1	Rp13.000
36	45247-99J00-000	PIN	1	Rp2.000
37	DISCONTINUE SUB: 09200-06061-000	PIN	1	-
38	09160-06082-000	WASHER (6.5X13X1.0)	1	Rp10.500
39	DISCONTINUE SUB: 09200-05014-000	PIN	1	-
