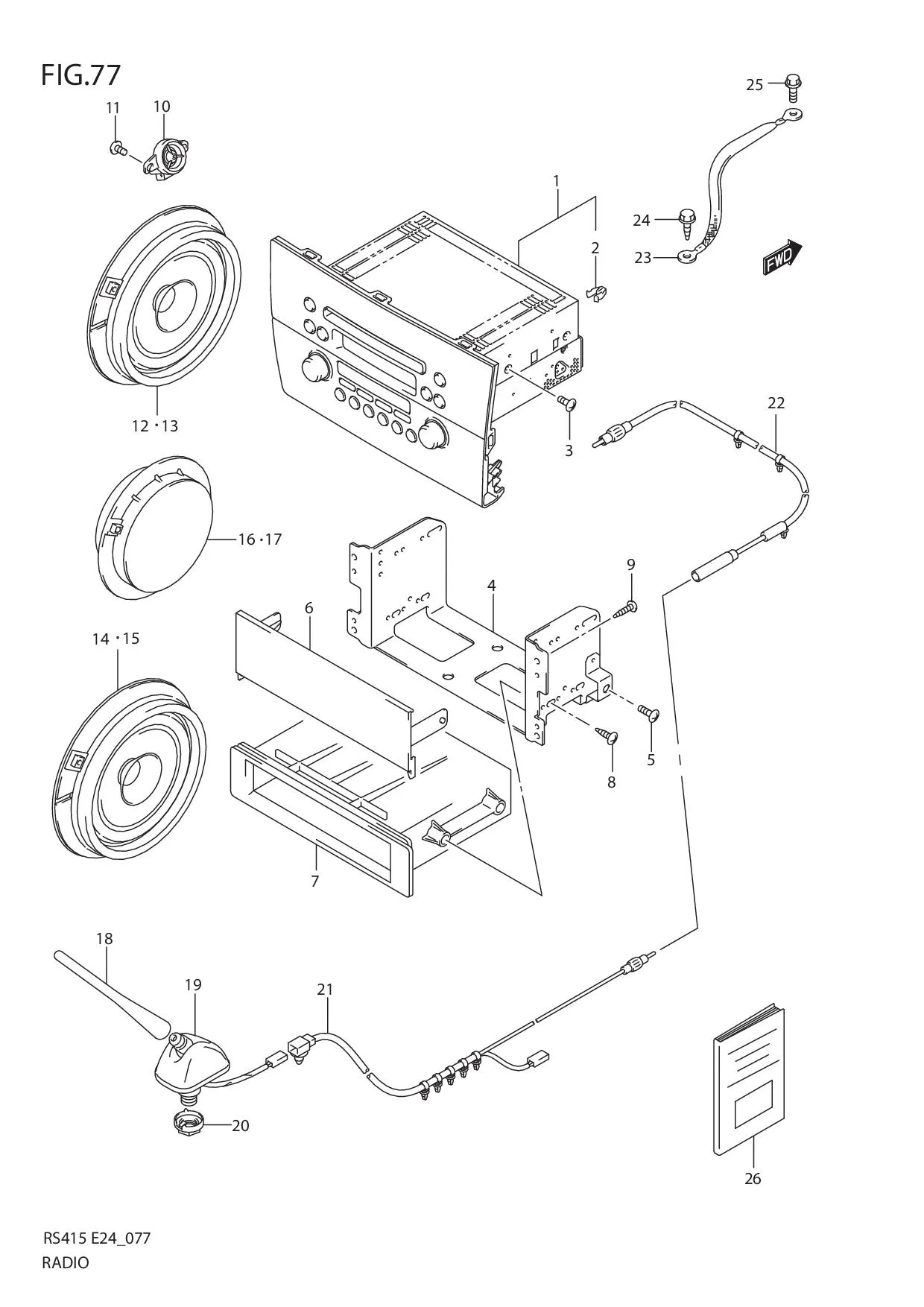

FIG.77 RADIO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 39101-63J30-BWZ	TUNER ASSY (AM/FM,CD 9KHZ)	1	-	W/TUNER
1-1	39101-63J20-BWZ	TUNER ASSY (AM/FM,CD 10KHZ)	1	-	W/TUNER
2	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
3	02142-0508A-000 SUB: 02142-05083-000	SCREW	6	Rp3.500
4-1	39321-63J30-000	BRACKET, TUNER	1	Rp176.000	N/TUNER
4-2	DISCONTINUE SUB: 39321-63J20-000	BRACKET, TUNER	1	-	W/TUNER
5	02162-0612B-000 SUB: 02162-06123-000	SCREW	2	Rp16.000
6	DISCONTINUE SUB: 39161-74G00-000	COVER, RADIO HOLE	1	-	N/TUNER
7	39182-77M10-000 SUB: 39182M70E51-000	POCKET, TUNER	1	Rp38.000	N/TUNER
8	03241-0512A-000 SUB: 03242-05123-000	SCREW	4	Rp3.500	N/TUNER
9	03541-0516A-000 SUB: 03541B05163N000	SCREW	4	Rp3.500	N/TUNER
10	DISCONTINUE SUB: 39102B63J00N000	SPEAKER ASSY, TWEETER	2	-	W/TWEETER SPEAKER
11	03541-0410A-000 SUB: 03541-04103-000	SCREW	4	Rp11.000	W/TWEETER SPEAKER
12	DISCONTINUE SUB: 39102-63J40-000	SPEAKER ASSY, FRONT RH	1	-	W/SPEAKER
13	DISCONTINUE SUB: 39102-63J30-000	SPEAKER ASSY, FRONT LH	1	-	W/SPEAKER
14	DISCONTINUE SUB: 39102-63J40-000	SPEAKER ASSY, REAR RH	1	-	W/SPEAKER
15	DISCONTINUE SUB: 39102-63J30-000	SPEAKER ASSY, REAR LH	1	-	W/SPEAKER
16	DISCONTINUE SUB: 39350-63J10-000	COVER, SPEAKER HOLE RH	2	-	N/SPEAKER
17	DISCONTINUE SUB: 39350-63J00-000	COVER, SPEAKER HOLE LH	2	-	N/SPEAKER
18	39251-64J00-000 SUB: 39251B64J00N000	ROD, ANTENNA	1	Rp182.500
19	DISCONTINUE SUB: 39253B63J10N000	BASE, ANTENNA	1	-
20	39269-63J00-000 SUB: 39269B63J00N000	NUT, ANTENNA	1	Rp111.500
21	DISCONTINUE SUB: 39271B63J11N000	FEEDER, ROOF	1	-
22	DISCONTINUE SUB: 39270B63J00N000	FEEDER, INSTRUMENT PANEL	1	-
23	39312-78F10-000 SUB: 39312B78F10N000	WIRE, NOISE SUPPRESSOR	1	Rp47.500	RHD
24	09115-06005-000 SUB: 09115-06001-000	BOLT (6X16)	1	Rp14.000
25	09103-06265-000 SUB: 09103-06168-000	BOLT (6X10)	1	Rp21.500
26	39103-63J20-000	MANUAL, AUDIO	1	-	FOR 39101-63J20-BWZ, 39101-63J30-BWZ
