SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.61 ENGINE ELECTRICALFIG.62STARTING MOTORFIG.63 GENERATORFIG.64 BATTERYFIG.65 SPEEDOMETERFIG.66 HEADLAMPFIG.67 FOG LAMP (W/FR FOG LAMP)FIG.68 REAR LAMP AND ROOM LAMPFIG.69 WIRING HARNESSFIG.70 ELECTRICAL CONTROL (LHD)FIG.71 ELECTRICAL CONTROL (RHD)FIG.72 LOCK SETFIG.73 FRONT WINDOW WIPER (LHD)FIG.74 FRONT WINDOW WIPER (RHD)FIG.75 WINDOW WASHERFIG.76 REAR WINDOW WIPERFIG.77 RADIO

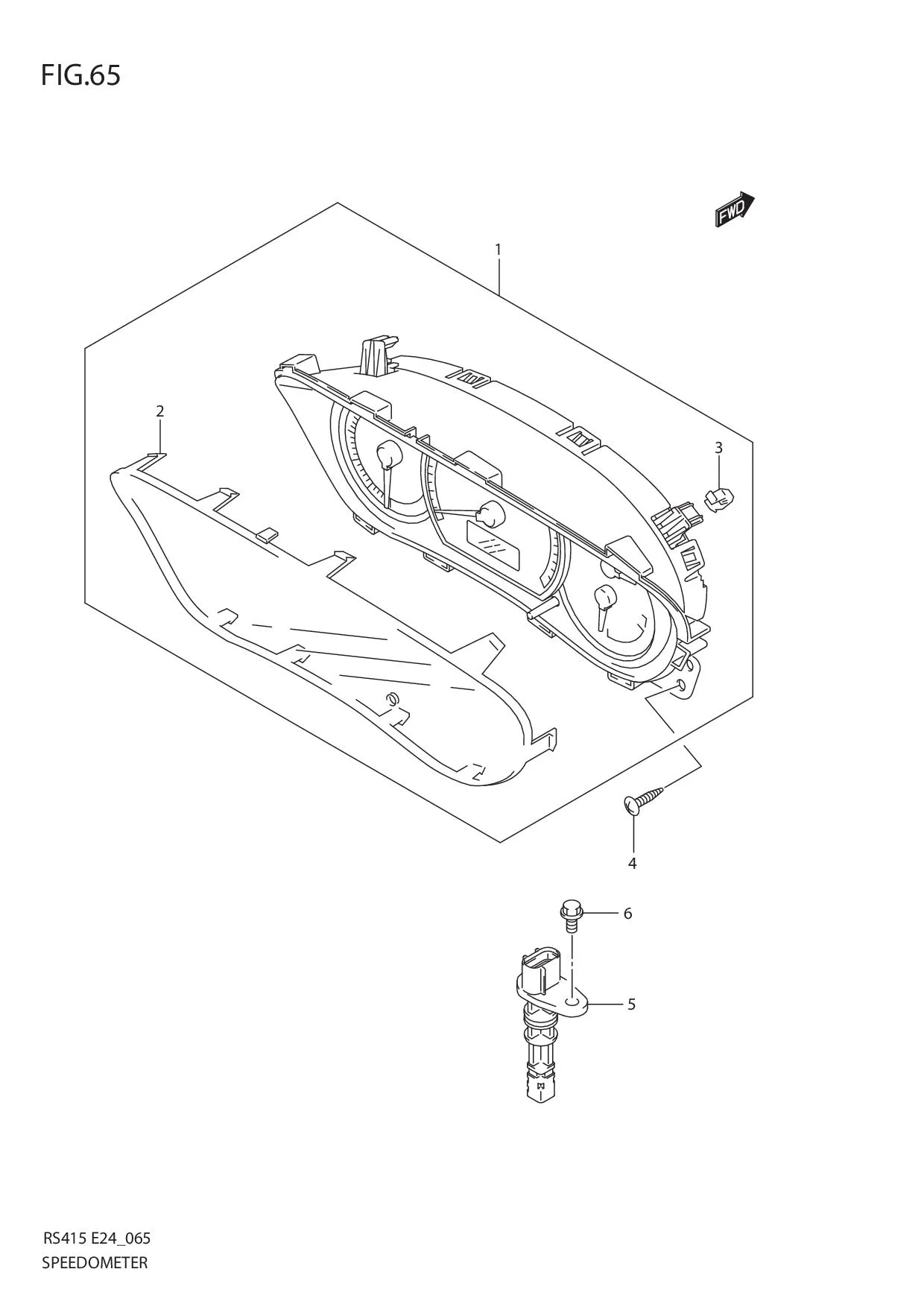

FIG.65 SPEEDOMETER

FIG.65 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1-1 34100-63JA0-000 SPEEDOMETER ASSY (KILO) 1 Rp6.942.000 MT
1-2 DISCONTINUE
SUB: 34100-63JH0-000		 SPEEDOMETER ASSY (MILE/KILO) 1 - MT
1-3 34100-63JB0-000 SPEEDOMETER ASSY (KILO) 1 Rp6.942.000 AT
1-4 DISCONTINUE
SUB: 34100-63JJ0-000		 SPEEDOMETER ASSY (MILE/KILO) 1 - AT
2 DISCONTINUE
SUB: 34112-63J00-000		 •GLASS, METER WINDOW 1 -
3 09409-08326-000
SUB: 09409B08326N000		 •CLIP 2 Rp8.000
4 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
5 34960-54G00-000 SENSOR ASSY, SPEED 1 Rp1.311.000 MT
6 01550-0616A-000
SUB: 01550-06163-000		 BOLT 1 Rp3.500 MT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
