SWIFT RS415

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.61 ENGINE ELECTRICAL FIG.62STARTING MOTOR FIG.63 GENERATOR FIG.64 BATTERY FIG.65 SPEEDOMETER FIG.66 HEADLAMP FIG.67 FOG LAMP (W/FR FOG LAMP)FIG.68 REAR LAMP AND ROOM LAMP FIG.69 WIRING HARNESS FIG.70 ELECTRICAL CONTROL (LHD)FIG.71 ELECTRICAL CONTROL (RHD)FIG.72 LOCK SET FIG.73 FRONT WINDOW WIPER (LHD)FIG.74 FRONT WINDOW WIPER (RHD)FIG.75 WINDOW WASHER FIG.76 REAR WINDOW WIPER FIG.77 RADIO

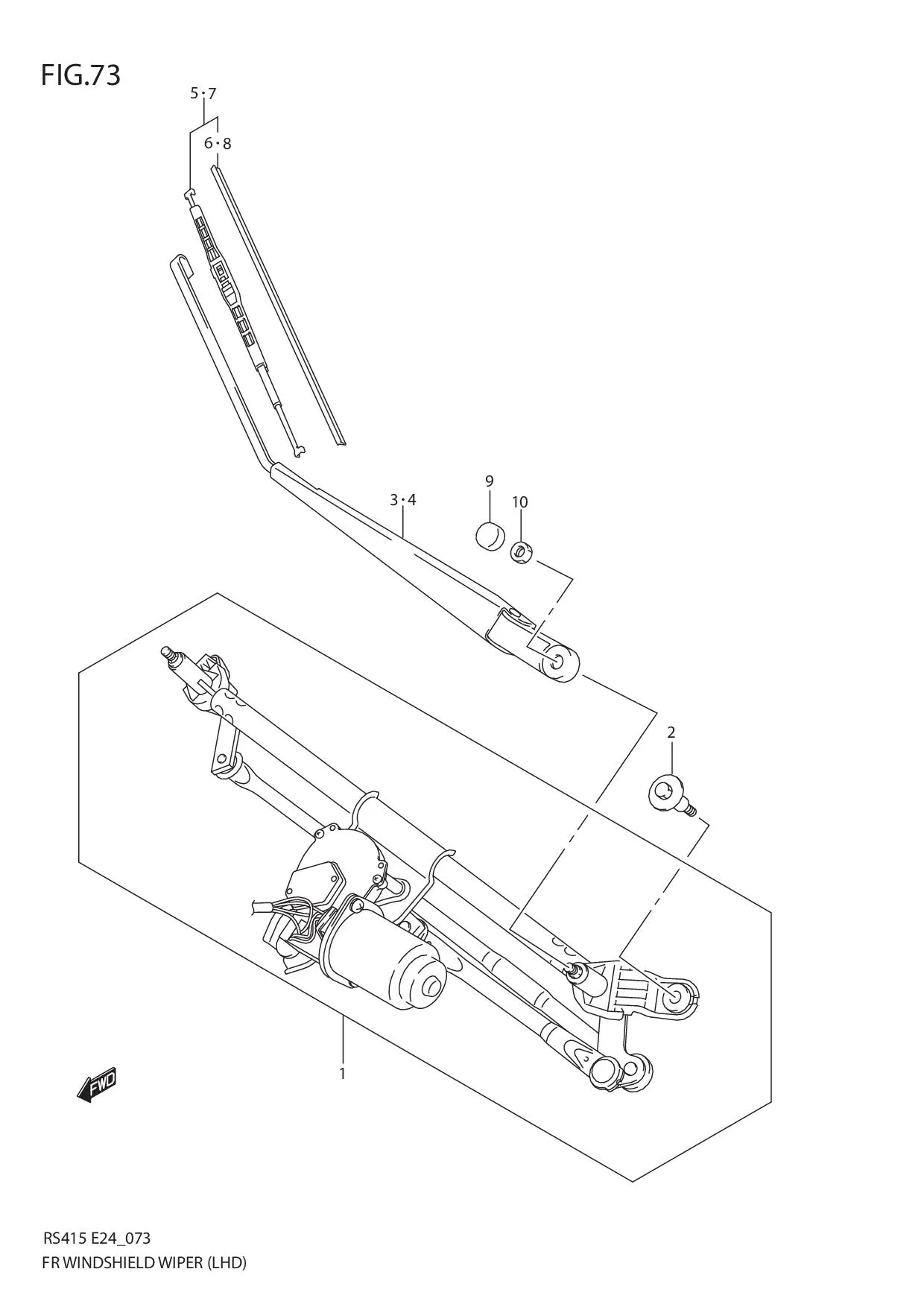

FIG.73 FRONT WINDOW WIPER (LHD)

FIG.73 FRONT WINDOW WIPER (LHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38100-62J00-000	MOTOR & BRACKET ASSY, WIPER	1	-
2	38116-62J00-000	•BOLT	3	-
3	38310-62J00-000	ARM ASSY, WIPER DRIVER	1	-
4	38330-62J00-000	ARM ASSY, WIPER ASSISTANT	1	-
5	38340-62J00-000	BLADE ASSY, WIPER DRIVER	1	-
6	38346-62J00-000	•BLADE	1	-
7	38340-62J10-000	BLADE ASSY, WIPER ASSISTANT	1	-
8	38346-62J10-000	•BLADE	1	-
9	38315-67L10-000 SUB: 38315M60B10-000	CAP, WIPER ARM	2	Rp4.500
10	DISCONTINUE SUB: 08310B00083N000	NUT	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
