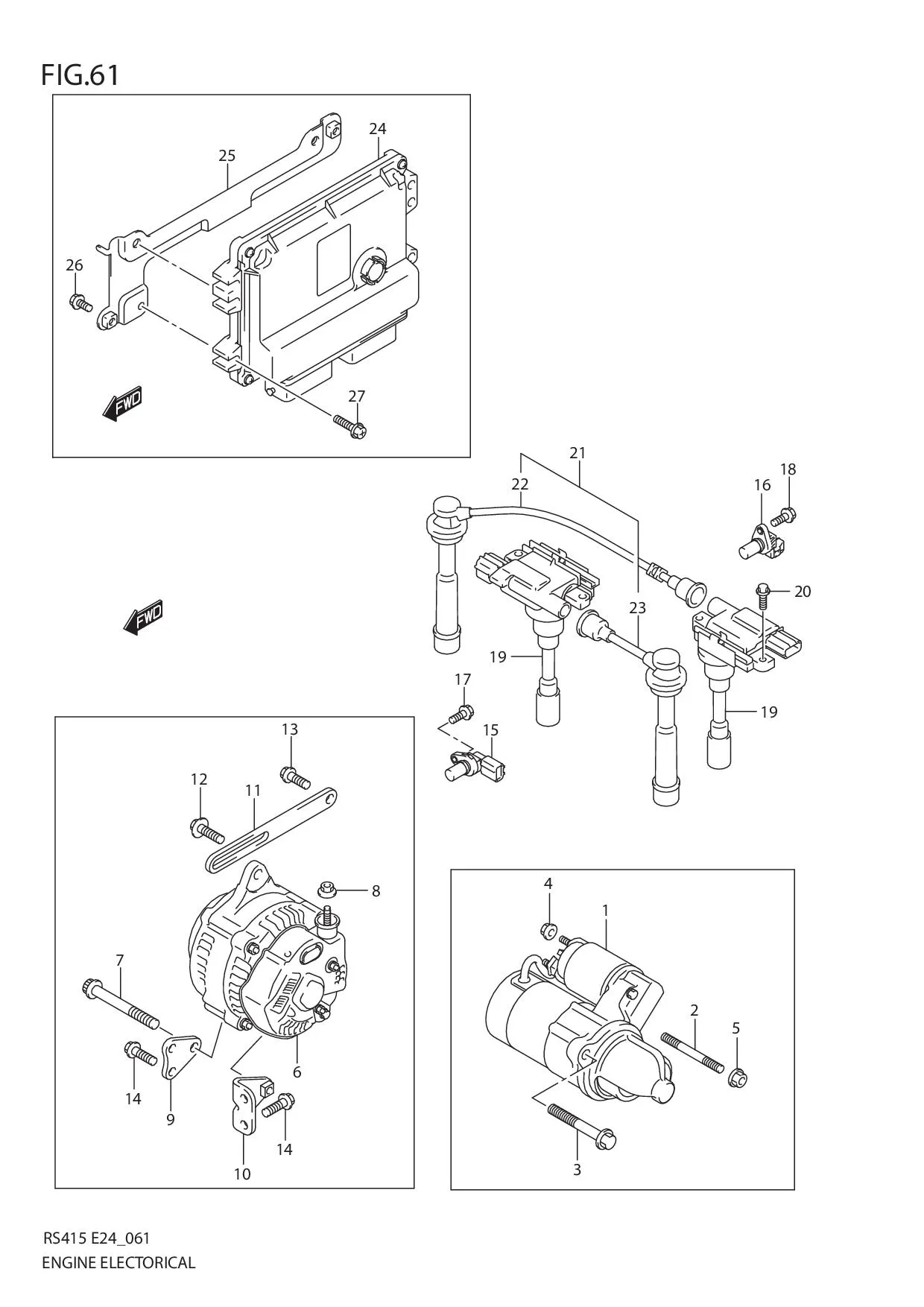

FIG.61 ENGINE ELECTRICAL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 31100B63J00N000	MOTOR ASSY, STARTING	1	-
2	01421-10603-000	STUD BOLT	1	-
3	01550-1060A-000 SUB: 01550-10603-000	BOLT	1	Rp5.500
4	08316-1008A-000 SUB: 08316B10083N000	NUT	1	Rp3.500
5	08316-1010A-000 SUB: 08316-10103-000	NUT	1	Rp3.500
6-1	31400-80G12-000 SUB: 31400-80G10-000	GENERATOR ASSY	1	Rp9.266.500	E24,E30,E43,E96
6-2	31400-63J00-000	GENERATOR ASSY	1	-	E35
7	07120-10853-000	BOLT	1	-
8	08316-1006A-000 SUB: 08316-10063L000	NUT	1	Rp2.000
9	DISCONTINUE SUB: 11550-64J01-000	BRACKET, GENERATOR NO.1	1	-
10	DISCONTINUE SUB: 11550-54G10-000	BRACKET, GENERATOR NO.2	1	-
11	DISCONTINUE SUB: 11561-69G01-000	ARM, GEN ADJUSTING1	1	-
12	09118M08174-000 SUB: 09118-08107-000	BOLT (8X25)	1	Rp19.500
13	01550-0820A-000 SUB: 01550-08203-000	BOLT	1	Rp5.500
14	01550-0830B-000 SUB: 01550-08303L000	BOLT	4	Rp3.000
15	33220-64L20-000 SUB: 33220-63J00-000	SENSOR ASSY, CKP	1	Rp1.027.000
16-1	33220-76G11-000	SENSOR ASSY, CMP	1	Rp1.357.500	RS413:E30,E96
16-2	33220-50M30-000 SUB: 33220-63J10-000	SENSOR ASSY, CMP	1	Rp1.201.500	RS413:E35,RS415
17	09103-06283-000 SUB: 09103-06240-000	BOLT (M6X16)	1	Rp20.500
18	01550-0616A-000 SUB: 01550-06163-000	SCREW	1	Rp3.500
19	33400-65G02-000 SUB: 33400-65G01-000	COIL ASSY, IGNITION	2	Rp2.226.500
20	01550-0620B-000 SUB: 01550-06203L000	BOLT	4	Rp3.500
21	33705-80G00-000	CORD SET, HIGH TENSION	1	Rp469.000
22	33730-80G00-000	•CORD, HIGH TENSION (L:270)	1	Rp258.000
23	33740-80G00-000	•CORD, HIGH TENSION (L:80)	1	Rp259.000
24-6	DISCONTINUE SUB: 33920-63J61-000	CONTROLLER, INJECTION/AIR CON	1	-	RS415:MT:E24
24-12	33920-63JK0-000	CONTROLLER, INJECTION/AIR CON	1	-	RS415:AT:E96
24-11	33920-63J42-000	CONTROLLER, INJECTION/AIR CON	1	-	RS415:AT:E35
24-10	DISCONTINUE SUB: 33920-63JF0-000	CONTROLLER, INJECTION/AIR CON	1	-	RS415:AT:E30,E43
24-9	33920-63J71-000	CONTROLLER, INJECTION/AIR CON	1	-	RS415:AT:E24
24-8	33920-63JC0-000	CONTROLLER, INJECTION/AIR CON	1	-	RS415:MT:E96
24-7	DISCONTINUE SUB: 33920-63JE0-000	CONTROLLER, INJECTION/AIR CON	1	-	RS415:MT:E30,E43
24-5	33920-63J22-000	CONTROLLER, INJECTION/AIR CON	1	-	RS413:AT:E35
24-4	33920-63JB0-000	CONTROLLER, INJECTION/AIR CON	1	-	RS413:AT:E30
24-3	33920-63JJ0-000	CONTROLLER, INJECTION/AIR CON	1	-	RS413:MT:E96
24-2	33920-63J02-000	CONTROLLER, INJECTION/AIR CON	1	-	RS413:MT:E35
24-1	33920-63JA0-000	CONTROLLER, INJECTION/AIR CON	1	-	RS413:MT:E30
25	DISCONTINUE SUB: 33924-63J01-000	BRACKET, CONTROLLER	1	-
26	02162-0612B-000 SUB: 02162-06123-000	SCREW	2	Rp16.000
27	02162-0625A-000 SUB: 02162-06253-000	SCREW	3	Rp3.500
