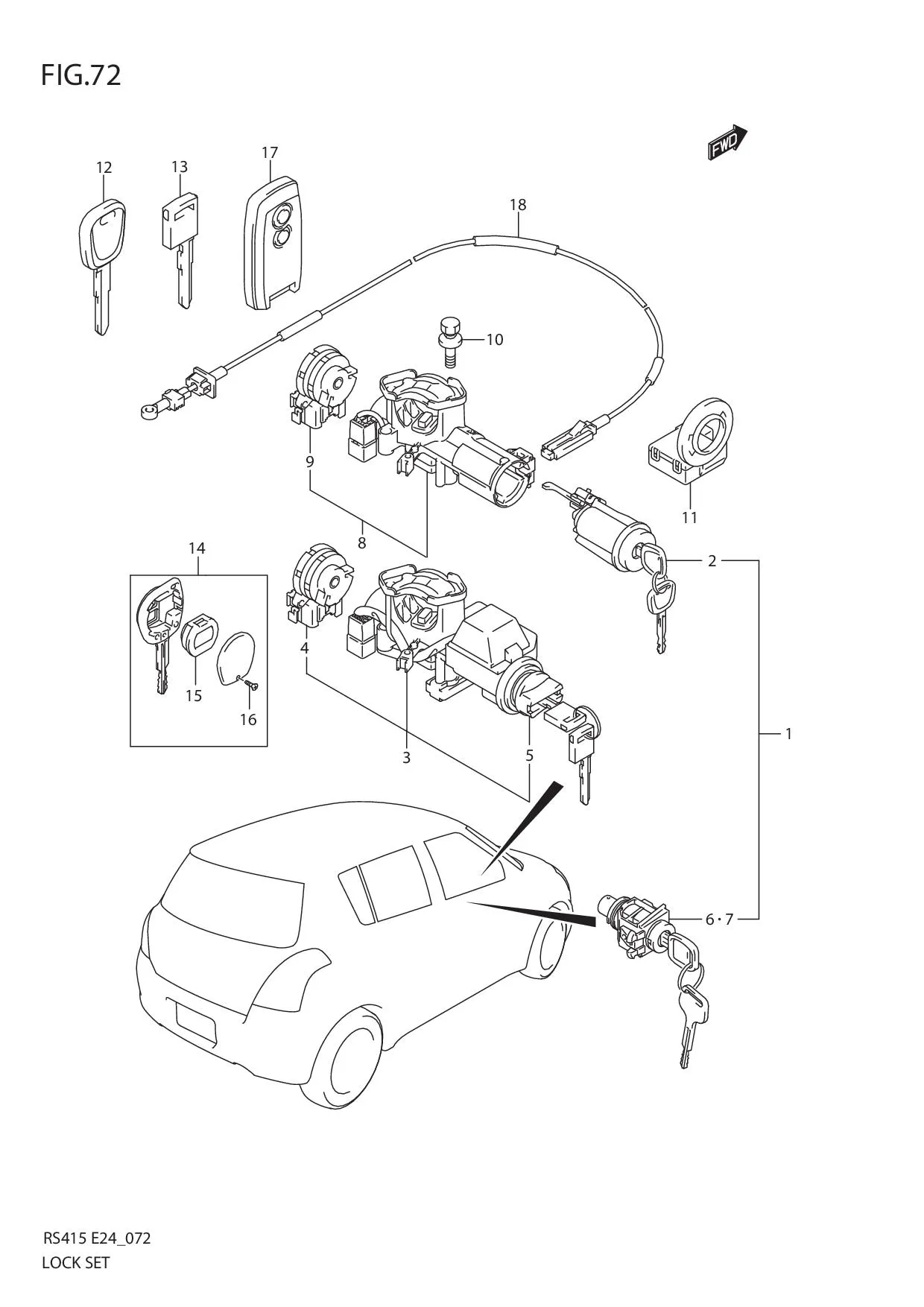

FIG.72 LOCK SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-12	37106-58870-000	LOCK SET	1	-	E96:MT:N/KEYLESS ENTRY
1-1	37106-63860-000	LOCK SET	1	-	E24:MT
1-14	37106-58830-000	LOCK SET	1	-	E96:AT
1-13	37106-58810-000	LOCK SET	1	-	E96:MT:W/KEYLESS ENTRY
1-11	37105-58890-000	LOCK SET	1	-	E43:AT
1-10	37105-58880-000	LOCK SET	1	-	E43:MT
1-9	37104-58851-000	LOCK SET	1	-	E35:AT:W/KEYLESS START
1-8	37104-58840-000	LOCK SET	1	-	E35:AT:N/KEYLESS START
1-7	37104-58830-000	LOCK SET	1	-	E35:MT:N/KEYLESS START
1-6	DISCONTINUE SUB: 37105-58870-000	LOCK SET	1	-	E30:AT:W/KEYLESS ENTRY
1-5	37106-58860-000	LOCK SET	1	-	E30:AT:N/KEYLESS ENTRY
1-4	DISCONTINUE SUB: 37105-58860-000	LOCK SET	1	-	E30:MT:W/KEYLESS ENTRY
1-3	37106-58850-000	LOCK SET	1	-	E30:MT:N/KEYLESS ENTRY
1-2	37106-63870-000	LOCK SET	1	-	E24:AT
2-1	DISCONTINUE SUB: 37106-63880-000	•LOCK ASSY, STEERING	1	-	E24,E30,E43,MT
2-2	37106-63890-000	•LOCK ASSY, STEERING	1	Rp1.980.500	E24,E30,E43,AT
2-3	DISCONTINUE SUB: 37106-63880-000	•LOCK ASSY, STEERING	1	-	E35:MT:N/KEYLESS START
2-4	37106-63890-000	•LOCK ASSY, STEERING	1	Rp1.980.500	E35:AT:N/KEYLESS START
2-5	37106-58820-000	•LOCK ASSY, STEERING	1	-	E96:MT
2-6	37106-58840-000	•LOCK ASSY, STEERING	1	-	E96:AT
3	DISCONTINUE SUB: 37104-58882-000	•LOCK ASSY, STEERING	1	-	E35:AT:W/KEYLESS START
4	37111-58J00-000	••SWITCH	1	Rp559.500	E35:AT:W/KEYLESS START
5	37102-63J20-000 SUB: 37102-63J00-000	••KNOB, STEERING LOCK	1	Rp120.000	E35:AT:W/KEYLESS START
6	DISCONTINUE SUB: 82270-63810-000	•CYLINDER, FR DOOR LOCK RH	1	-
7	DISCONTINUE SUB: 82280-63820-000	•CYLINDER, FR DOOR LOCK LH	1	-
8-1	DISCONTINUE SUB: 37101-62J10-000	BODY, STEERING LOCK	1	-	MT:N/KEYLESS START
8-2	DISCONTINUE SUB: 37101-62J20-000	BODY, STEERING LOCK	1	-	AT:W/KEYLESS START
9	37111-58J00-000	•SWITCH	1	Rp559.500
10	37152-84G00-000	BOLT, STEERING LOCK	2	Rp35.500
11	33970-62J00-000	CONTROLLER ASSY, IMMOBILIZER	1	Rp3.135.500	W/IMMOBILIZER
12	37145-57J10-000	KEY, BLANK	1	-	OPT:E30:N/KEYLESS ENTRY E35:N/KEYLESS START
13	37145-63J01-000	KEY, BLANK	1	Rp543.000	OPT:E35:W/KEYLESS START
14-2	37145-55A10-000 SUB: 37145-55JP0-000	KEY, BLANK (W/TRANSMITTER)	1	Rp1.564.000	OPT:E30:W/KEYLESS ENTRY
14-5	37145-55A00-000	KEY, BLANK (W/TRANSMITTER)	1	-	OPT:E96
14-4	37145-55JA1-000 SUB: 37145-55JA0-000	KEY, BLANK (W/TRANSMITTER)	1	Rp1.178.000	OPT:E43
14-3	37145-55J50-000	KEY, BLANK (W/TRANSMITTER)	1	-	OPT:E35:N/KEYLESS START
14-1	37145-55JA1-000 SUB: 37145-55JA0-000	KEY, BLANK (W/TRANSMITTER)	1	Rp1.178.000	OPT:E24
15-1	37182-62J10-000	•SWITCH ASSY, TRANSMITTER	1	-	E24,E43
15-2	37182-62J30-000 SUB: 37182-62J20-000	•SWITCH ASSY, TRANSMITTER	1	Rp1.079.000	E30,E96
15-3	37182-62J00-000	•SWITCH ASSY, TRANSMITTER	1	-	E35:N/KEYLESS START
16	37186-81A00-000	•SCREW	1	Rp23.000
17	37172-62J00-000	TRANSMITTER, KEYLESS START	1	-	E35:W/KEYLESS START
18-1	28551-62J30-000	CABLE, KEY INTERLOCKING	1	-	LHD:AT
18-2	DISCONTINUE SUB: 28551-62J10-000	CABLE, KEY INTERLOCKING	1	-	RHD:AT
