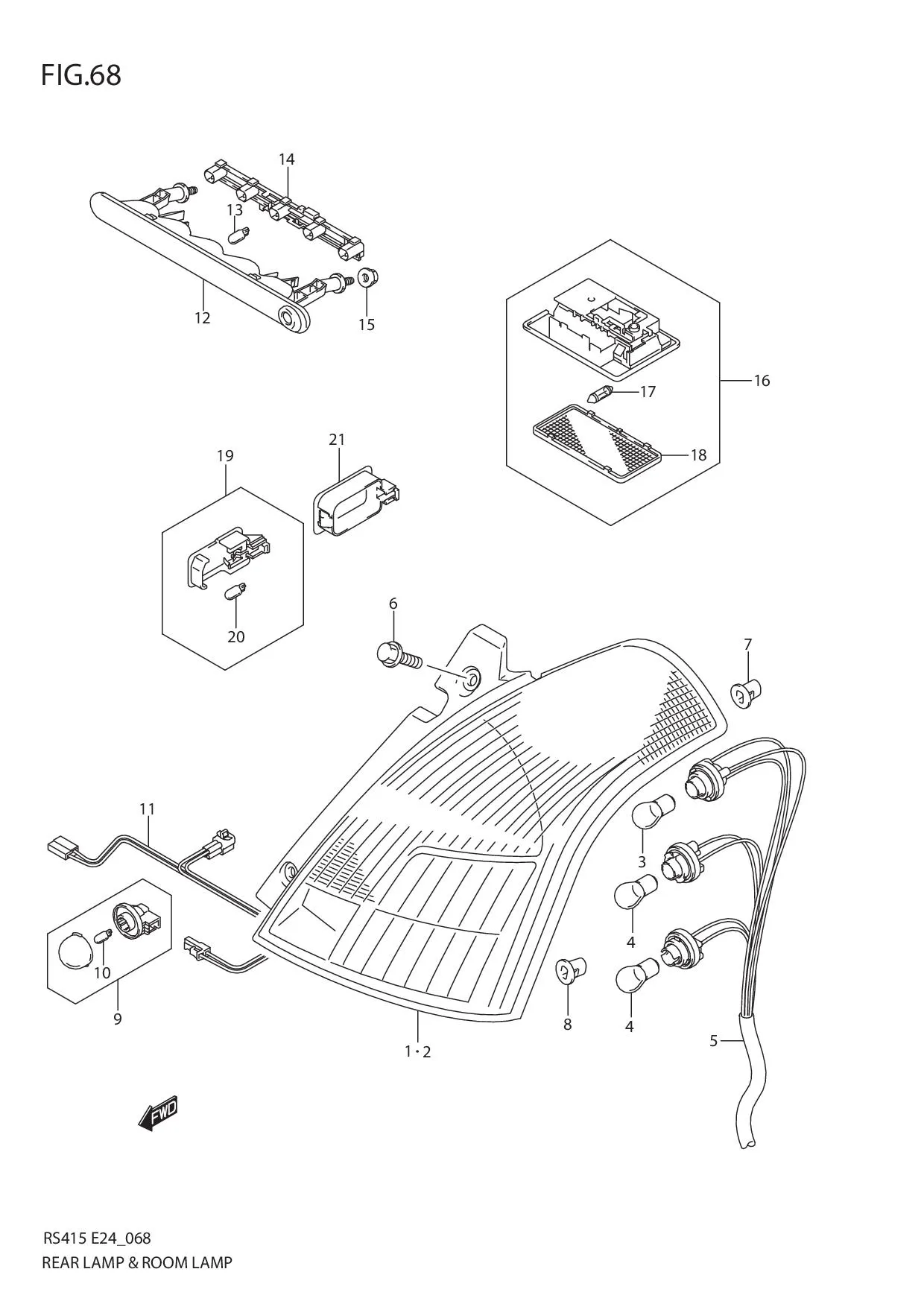

FIG.68 REAR LAMP AND ROOM LAMP

FIG.68 REAR LAMP AND ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650-63J00-000 LAMP UNIT, RR COMBINATION RH 1 Rp2.822.500
2 35670-63J00-000 LAMP UNIT, RR COMBINATION LH 1 Rp2.822.500
3 09471-12083-000 BULB (12W,21/5W) 2 Rp62.000
4 09471-12045-000
SUB: 09471B12045N000		 BULB (12W,21W) 4 Rp13.500
5 35658-63J01-000
SUB: 35658-63J00-000		 SOCKET & CORD ASSY 2 Rp510.500
6 02162-06203-000 SCREW 4 -
7 35153-67L10-000
SUB: 35153B54G00N000		 GROMMET, RR COMB LAMP UPPER 2 Rp7.000
8 DISCONTINUE
SUB: 35153B63G00N000		 GROMMET, RR COMB LAMP LOWER 2 -
9 35910-81K00-000
SUB: 35910-75F11-000		 LAMP ASSY, LICENSE 2 Rp38.500
10 09471-12081-000
SUB: 09471B12081N000		 BULB (12V,5W) 2 Rp11.000
11 DISCONTINUE
SUB: 36843-63J00-000		 WIRE, LICENSE LAMP 1 -
12 35820-63J00-000 LAMP UNIT, HIGH MOUNT STOP 1 Rp443.500
13 09471-12216-000
SUB: 09471B12216N000		 BULB (12V,5W) 5 Rp15.000
14 35817-63J00-000 COVER, BULB 1 Rp235.500
15 09159-06025-000 NUT 2 -
16 36210-63J02-6GS
SUB: 36210-63J00-6GS		 LAMP ASSY, ROOM (GRAY) 1 Rp941.500
17 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V,10W) 1 Rp30.500
18 36212-63J00-000 •LENS 1 Rp107.000
19 36210-54G20-000 LAMP ASSY, LUGGAGE ROOM 1 Rp199.500 W/LUGGAGE ROOM LAMP
20 09471-12081-000
SUB: 09471B12081N000		 BULB (12V,5W) 1 Rp11.000
21 36216-54G00-P4Z COVER, LLUGGAGE ROOM LAMP HOLE (GRAY) 1 - N/LUGGAGE ROOM LAMP

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
