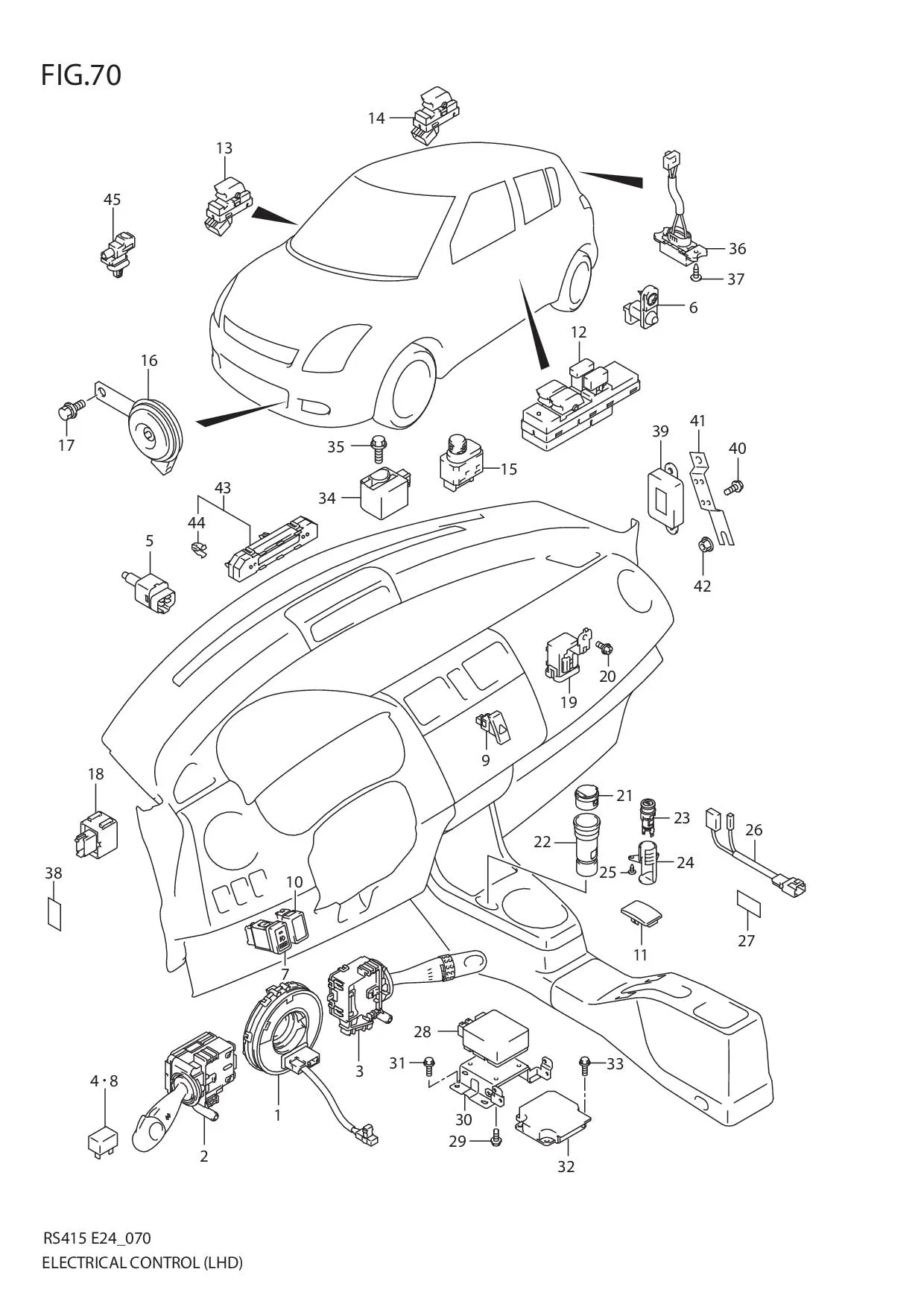

FIG.70 ELECTRICAL CONTROL (LHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37480-62J00-000 SUB: 37480B62J00N000	CABLE ASSY, CONTACT COIL	1	Rp371.500	W/STEERING WHEEL AUDIO SWITCH
1-1	37480-73H20-000	CABLE ASSY, CONTACT COIL	1	Rp1.450.500	N/STEERING WHEEL AUDIO SWITCH
2	37210-64J10-000	SWITCH ASSY, LIGHTING & TURN SIGNAL	1	-
3	37310-62J30-000	SWITCH ASSY, WIPER & WASHER	1	-
4	38860-76F01-000 SUB: 38860B76F01N000	RELAY, REAR WIPER	1	Rp47.000
5	37740-61J10-000 SUB: 37740-75H21-000	SWITCH ASSY, STOP LAMP	1	Rp59.000
6	37670-58J10-000 SUB: 37670-58J00-000	SWITCH ASSY, DOOR	4	Rp107.500
7	37270-62J10-000	SWITCH ASSY, FRONT FOG LAMP	1	Rp385.500	W/FRONT FOG LAMP
8	38860-76F01-000 SUB: 38860B76F01N000	RELAY, FRONT FOG LAMP	1	Rp47.000	W/FRONT FOG LAMP
9	37430-62J00-P4Z	SWITCH ASSY, HAZARD WARNING (GRAY)	1	Rp322.500
10	37285-62J00-000	CAP, OPTION SWITCH HOLE	0	Rp45.000
11	37285-62J10-000	CAP, OPTION SWITCH HOLE	2	Rp41.500
12	37990-62J50-000	SWITCH ASSY, POWER WINDOW MAIN	1	-
13	37995-62J00-000	SWITCH ASSY, POWER WINDOW SUB	1	Rp247.500
14	37995-62J00-000	SWITCH ASSY, POWER WINDOW REAR	2	Rp247.500
15	37950-62J01-000 SUB: 37950-62J00-000	SWITCH ASSY, MIRROR	1	Rp274.000
16-1	38500-63J01-000 SUB: 38500-63J00-000	HORN ASSY	1	Rp495.000	EXC/E43
16-2	38500-65J20-000	HORN ASSY	1	-	E43
17	09115-06005-000 SUB: 09115-06001-000	BOLT (8X18)	1	Rp14.000
18	38610-84F00-000	RELAY, TURN & 4WAY	1	Rp613.000
19-1	37190-62J10-000	RECEIVER ASSY, DOOR LOCK & KEYLESS	1	-	E43
19-2	DISCONTINUE SUB: 37190-62J20-000	RECEIVER ASSY, DOOR LOCK & KEYLESS	1	-	E96
20	02162-0612B-000 SUB: 02162-06123-000	BOLT	1	Rp16.000
21	39420-76F00-000	BODY, SOCKET	1	Rp103.000	N/CIGAR LIGHTER
22	39441-63J01-P4Z	COVER, SOCKET (GRAY)	1	Rp65.500	N/CIGAR LIGHTER
23	DISCONTINUE SUB: 39400-59J00-000	LIGHTER ASSY, CIGARETTE	1	-	W/CIGAR LIGHTER
24	DISCONTINUE SUB: 39430-63J00-000	COVER, CIGAR LIGHTER	1	-	W/CIGAR LIGHTER
25	03541-0516A-000 SUB: 03541B05163N000	SCREW	1	Rp3.500	W/CIGAR LIGHTER
26	DISCONTINUE SUB: 39460-63J00-000	HARNESS ASSY, SOCKET	1	-
27	DISCONTINUE SUB: 36930-60G10-000	COVER, HARNESS	1	-
28	38720-63J10-000	CONTROLLER ASSY, POWER STEERING	1	Rp7.199.000
29	02162-0508A-000 SUB: 02162-05083-000	SCREW	4	Rp3.500
30	DISCONTINUE SUB: 38721-63J00-000	BRACKET, POWER STEERING	1	-
31	09115-06005-000 SUB: 09115-06001-000	BOLT (6X16)	4	Rp14.000
32	38910-62J02-000 SUB: 38910-62J00-000	CONTROLLER ASSY, AIR BAG	1	Rp18.370.500
33	09115-06004-000	BOLT (6X16)	3	Rp19.500
34	DISCONTINUE SUB: 38930-62J00-000	SENSOR ASSY, FORWARD	1	-
35	09115-06004-000	BOLT (6X16)	1	Rp19.500
36	37178-62J00-000	SWITCH ASSY, BACK DOOR	1	Rp457.500
37	DISCONTINUE SUB: 09132-04035-000	SCREW	1	-
38	DISCONTINUE SUB: 84761-50X50-000	FILM, SIDE SILL INNER	1	-
39	38880-63J31-000	CONTROLLER ASSY, AT	1	-	AT
40	02162-0610A-000 SUB: 02162-06103-000	BOLT	2	Rp5.000	AT
41	DISCONTINUE SUB: 38881-63J00-000	BRACKET, AT CONTROLLER	1	-	AT
42	08316-1008A-000 SUB: 08316B10083N000	NUT	2	Rp3.500	AT
43-1	34600-63J10-000	CLOCK ASSY	1	Rp1.194.500	N/INFORMATION DISPLAY
43-2	34600-63J03-000 SUB: 34600-63J02-000	MONITOR ASSY, INFORMATION	1	Rp1.633.500	W/INFORMATION DISPLAY & W/KM SPEEDOMETER DISPLAY
43-3	DISCONTINUE SUB: 34600-63J20-000	MONITOR ASSY, INFORMATION	1	-	W/INFORMATION DISPLAY & W/MILE SPEEDOMETER DISPLAY
44	09409-08326-000 SUB: 09409B08326N000	•CLIP	3	Rp8.000
45	95643-58J00-000	SENSOR, OUTSIDE TEMPERATURE	1	Rp262.000
