SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.61 ENGINE ELECTRICALFIG.62STARTING MOTORFIG.63 GENERATORFIG.64 BATTERYFIG.65 SPEEDOMETERFIG.66 HEADLAMPFIG.67 FOG LAMP (W/FR FOG LAMP)FIG.68 REAR LAMP AND ROOM LAMPFIG.69 WIRING HARNESSFIG.70 ELECTRICAL CONTROL (LHD)FIG.71 ELECTRICAL CONTROL (RHD)FIG.72 LOCK SETFIG.73 FRONT WINDOW WIPER (LHD)FIG.74 FRONT WINDOW WIPER (RHD)FIG.75 WINDOW WASHERFIG.76 REAR WINDOW WIPERFIG.77 RADIO

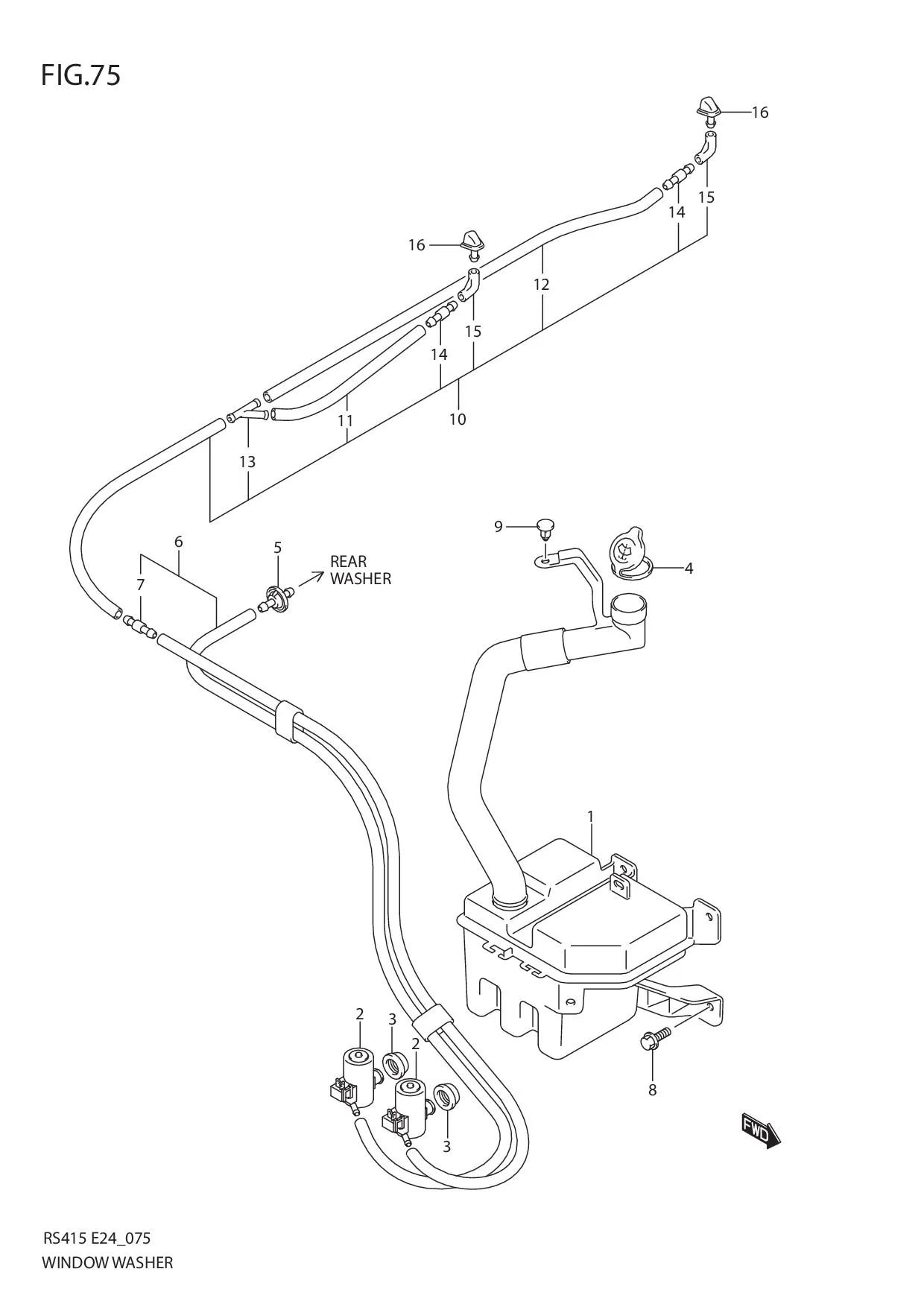

FIG.75 WINDOW WASHER

FIG.75 WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38450-62J01-000
SUB: 38450-62J00-000		 TANK ASSY, WASHER 1 Rp807.000
2 38410-70B20-000 PUMP ASSY, WASHER 2 Rp1.127.000
3 38453-78F00-000 GROMMET, WASHER TANK 2 Rp39.500
4 38452-67H00-000 CAP, WASHER TANK 1 Rp29.500
5 38496-54G00-000 JOINT, WASHER 1 Rp43.500
6 38491-62J01-000
SUB: 38491-62J00-000		 HOSE ASSY, FRONT & REAR 1 Rp213.500
7 38496-56B00-000 •CONNECTOR 1 Rp33.500
8 02162-0612B-000
SUB: 02162-06123-000		 SCREW 3 Rp16.000
9 39138-63J00-000 CLIP, WASHER TANK INLET 1 Rp19.500
10 38490-63J00-000 HOSE ASSY, WASHER FRONT HOOD 1 Rp196.000
11 38491-61A10-000 •HOSE, WASHER (L:2100!120) 1 Rp113.500
12 38491-61A10-000 •HOSE, WASHER (L:2100!610) 1 Rp113.500
13 38496-60G00-000 •JOINT, 3WAY 1 Rp29.000
14 38496-56B00-000 •CONNECTOR 2 Rp33.500
15 38496-67H00-000 •JOINT, ELBOW 2 Rp33.500
16 38480-63J00-000 NOZZLE, WASHER 1 Rp101.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
