SWIFT RS415

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.61 ENGINE ELECTRICAL FIG.62STARTING MOTOR FIG.63 GENERATOR FIG.64 BATTERY FIG.65 SPEEDOMETER FIG.66 HEADLAMP FIG.67 FOG LAMP (W/FR FOG LAMP)FIG.68 REAR LAMP AND ROOM LAMP FIG.69 WIRING HARNESS FIG.70 ELECTRICAL CONTROL (LHD)FIG.71 ELECTRICAL CONTROL (RHD)FIG.72 LOCK SET FIG.73 FRONT WINDOW WIPER (LHD)FIG.74 FRONT WINDOW WIPER (RHD)FIG.75 WINDOW WASHER FIG.76 REAR WINDOW WIPER FIG.77 RADIO

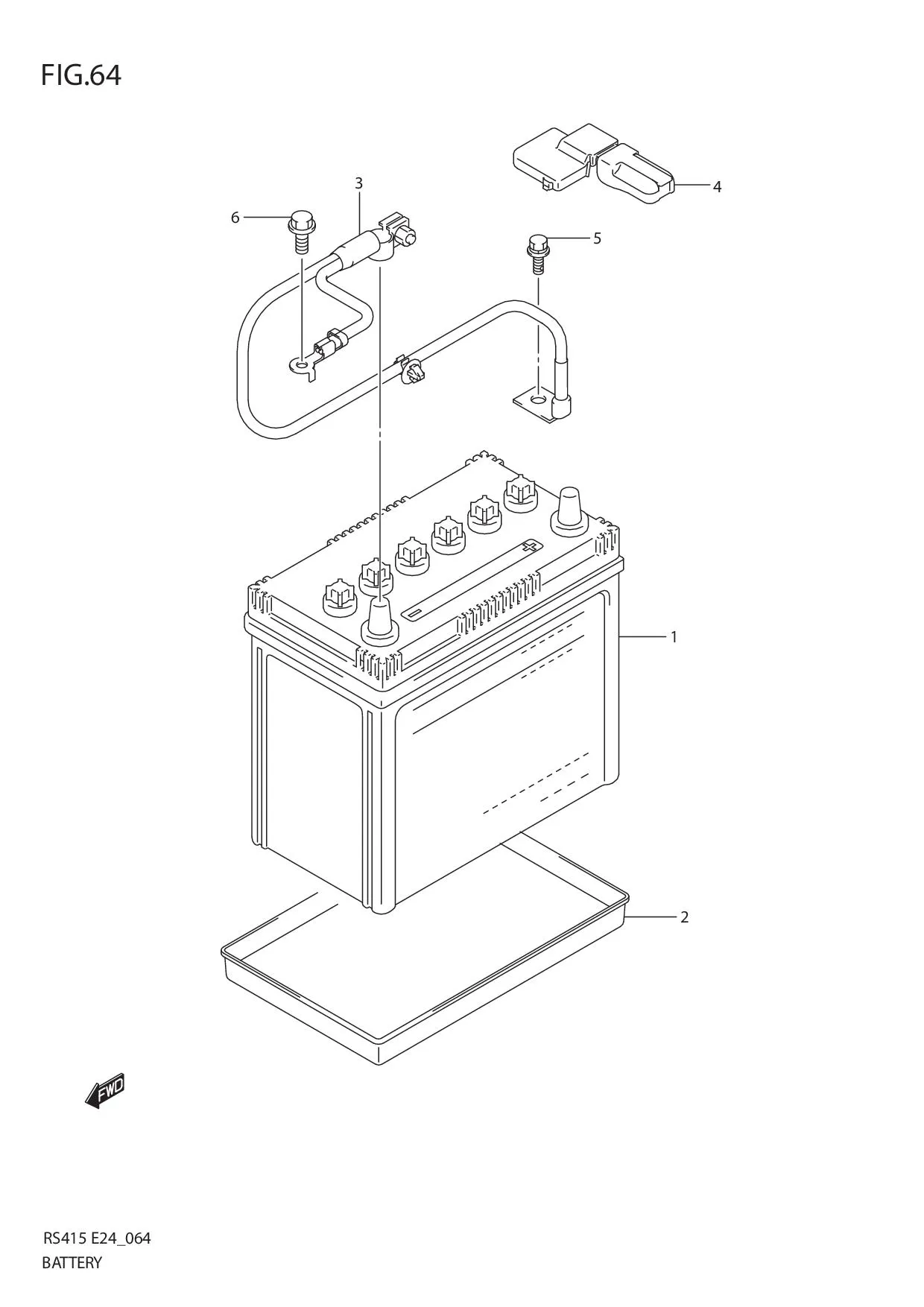

FIG.64 BATTERY

FIG.64 BATTERY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 33610-82120-000	BATTERY, (E5B24R)	1	-
2	33660-73010-000 SUB: 33660B73010N000	TRAY, BATTERY	1	Rp41.000
3-1	DISCONTINUE SUB: 33850-63J00-000	CABLE, BATTERY GROUND	1	-	MT
3-2	DISCONTINUE SUB: 33850-63J10-000	CABLE, BATTERY GROUND	1	-	AT
4-1	36694-63J00-000	COVER, BATTERY TERMINAL	1	Rp115.000	E24,E30,E35
4-2	36694-75J00-000	COVER, BATTERY TERMINAL	1	Rp144.500	E43,E96
5	09115-06005-000 SUB: 09115-06001-000	BOLT (6X16)	1	Rp14.000
6	01550-0812A-000 SUB: 01550B08123N000	BOLT	1	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
