SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.61 ENGINE ELECTRICALFIG.62STARTING MOTORFIG.63 GENERATORFIG.64 BATTERYFIG.65 SPEEDOMETERFIG.66 HEADLAMPFIG.67 FOG LAMP (W/FR FOG LAMP)FIG.68 REAR LAMP AND ROOM LAMPFIG.69 WIRING HARNESSFIG.70 ELECTRICAL CONTROL (LHD)FIG.71 ELECTRICAL CONTROL (RHD)FIG.72 LOCK SETFIG.73 FRONT WINDOW WIPER (LHD)FIG.74 FRONT WINDOW WIPER (RHD)FIG.75 WINDOW WASHERFIG.76 REAR WINDOW WIPERFIG.77 RADIO

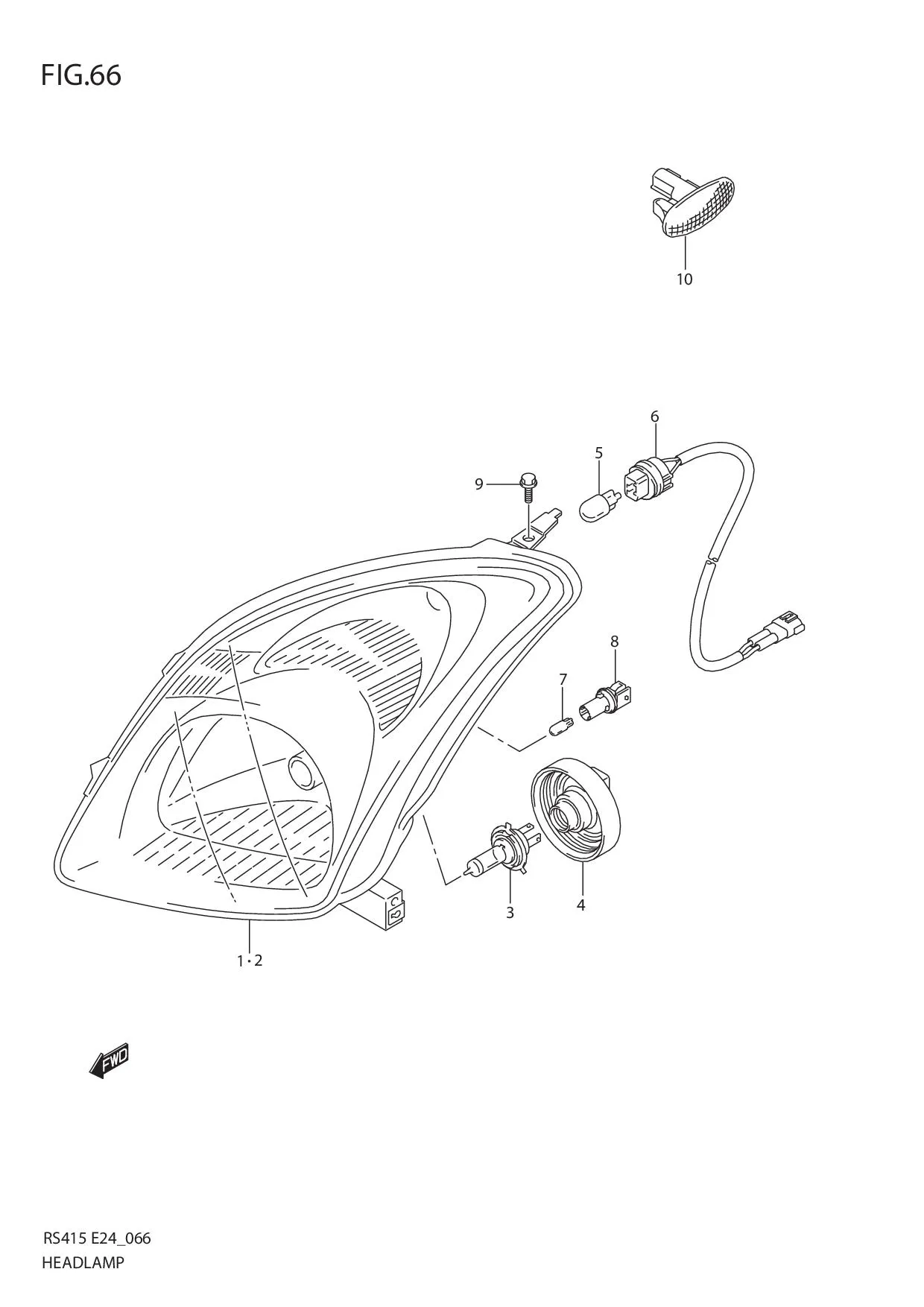

FIG.66 HEADLAMP

FIG.66 HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1-1 35120-63J30-000 UNIT, HEADLAMP RH 1 - LHD
1-2 35120-63J21-000 UNIT, HEADLAMP RH 1 Rp2.223.000 RHD
2-1 35320-63J30-000 UNIT, HEADLAMP LH 1 - LHD
2-2 35320-63J21-000 UNIT, HEADLAMP LH 1 Rp2.223.000 RHD
3 09471-12182-000
SUB: 09471B12182N000		 BULB (12V,60/55W H4) 2 Rp70.000
4 35125-76G00-000 COVER, SOCKET 2 Rp151.500
5 09471-12202-000 BULB (12V,21W) (AMBER) 2 Rp78.000
6 35618-63J00-000 CORD ASSY 2 Rp219.000
7 09471-12081-000
SUB: 09471B12081N000		 BULB (12V,5W) 2 Rp11.000
8 36118-63J00-000 SOCKET, POSITION LAMP 2 Rp102.000
9 09122-76001-000 BOLT (6X16) 6 Rp16.500
10 36410-61J01-000
SUB: 36410-63J00-000		 LAMP ASSY, SIDE TURNSIGNAL 2 Rp56.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
